How to Use Waterjet Cutting Machines Safely

Waterjet cutting machine is a kind of ultra-high-pressure water cutting technology, its powerful cutting ability and cutting adaptability are the basis for people to choose waterjet cutting machine. In addition, waterjet cutting has excellent characteristics such as no thermal effect, no deformation, and smooth cutting. Waterjet cutting machine is a kind of ultra-high-pressure equipment, naturally, in the manufacture of the strict sealing box good high-pressure protection measures. However, in actual use, it is still necessary to keep in mind the safety precautions for operation.

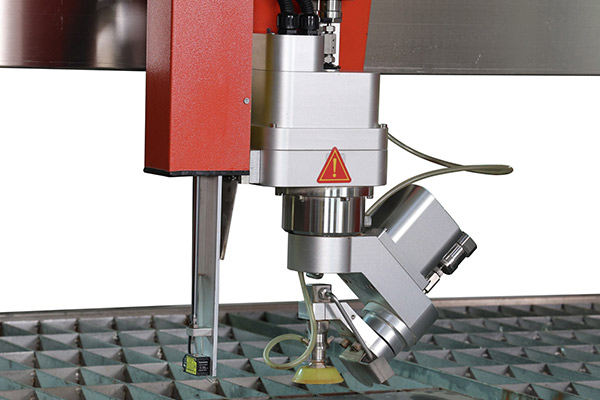

First of all, the work of the waterjet cutting machine mainly relies on the movement of the CNC cantilever or gantry to drive the cutting head to cut some patterns. Therefore, it is strictly prohibited for personnel to approach the CNC cantilever to avoid accidental injury; and around the cantilever to avoid the presence of interference. The cutting head of the waterjet cutting machine is the outlet of high-pressure water, which acts directly with the material when cutting. Therefore, it is necessary to ensure that the cutting material has been laid flat, otherwise the cutting sand pipe will be easily damaged, and in serious cases, it will lead to high-pressure leakage, resulting in personal injury.

After processing is completed, be sure to turn off the high-pressure water switch first, or turn off the high-pressure take-off. In case of emergency power failure, the high pressure water will remain in the high pressure system, and once the power comes back on, the residual high pressure water will be sprayed out, so don't go near the cutting head at this time. After reconnecting the power, the residual high pressure water must be removed.

Second, ensure the safety of the high-pressure pipe. Generally speaking, the high-pressure pipe and the booster will not have problems, and what is prone to problems is mainly the leakage of high-pressure water. Therefore, replace the sealing components regularly according to the instructions for use. At the same time, choose a reasonable way to cut off the water, pay attention to whether there is high-pressure water seepage, once found, immediately press the emergency stop button to stop the high-pressure system. In addition, the cooling of the high-pressure system is also worth noting. The high pressure system will generate high temperature if it hesitates to pressurize and friction when working. If it cannot be cooled effectively, the service life of sealing parts and various high-pressure components will be affected. If this temperature is maintained for a long time, the service life of the high-pressure system will be greatly reduced, and it is also very easy to cause danger. Therefore, some products are equipped with high temperature protection function, over the set temperature, the system will automatically shut down to ensure safety. For those without temperature protection, users need to pay attention to the temperature change of the equipment to prevent accidents.

Finally, waterjet cutting machines generally have a high pressure range of use. The pressure of the waterjet cutting machine is adjustable. Rated high pressure 300MPa waterjet cutting machine will cause serious wear and tear on the waterjet if it works for a long time at full load. Generally speaking, 2cm thick steel plate in 260Mpa will achieve the desired speed and effect, the general use of 260-280Mpa is best. There is also the purity of the water. If there are many impurities in the water, it will clog the pipes, damage the equipment, and even cause accidents.
