Description:
The P3 cutting head assembly is a component used in the cutting head part of a water jet cutting machine. Its function is to control the cutting nozzle, from which high-pressure water jets are directed onto the material being cut.
The P3 cutting head assembly typically consists of several key components:
Cutting nozzle: The cutting nozzle is the component tip that high-pressure water jet leaves. It is made of hard and durable materials, such as sapphire or diamond, to withstand the abrasiveness during the cutting process.
Mixing chamber: The mixing chamber is a place where high-pressure water is mixed with abrasive particles such as pomegranate sand to enhance cutting force. The mixing chamber ensures that abrasive particles are evenly distributed in the water jet.
Orifice: Orifice is a small hole in the cutting head assembly through which high-pressure water jet passes. It helps to maintain the pressure and speed of the water jet, ensuring accurate and effective cutting.
On/Off Mounting Collar: On/Off Mounting Collar is a part of a cutting head component that rotates and moves freely, allowing the water jet to cut complex shapes and contours.
The design of the P3 cutting head component has special functions, and the cutting performance is optimized.

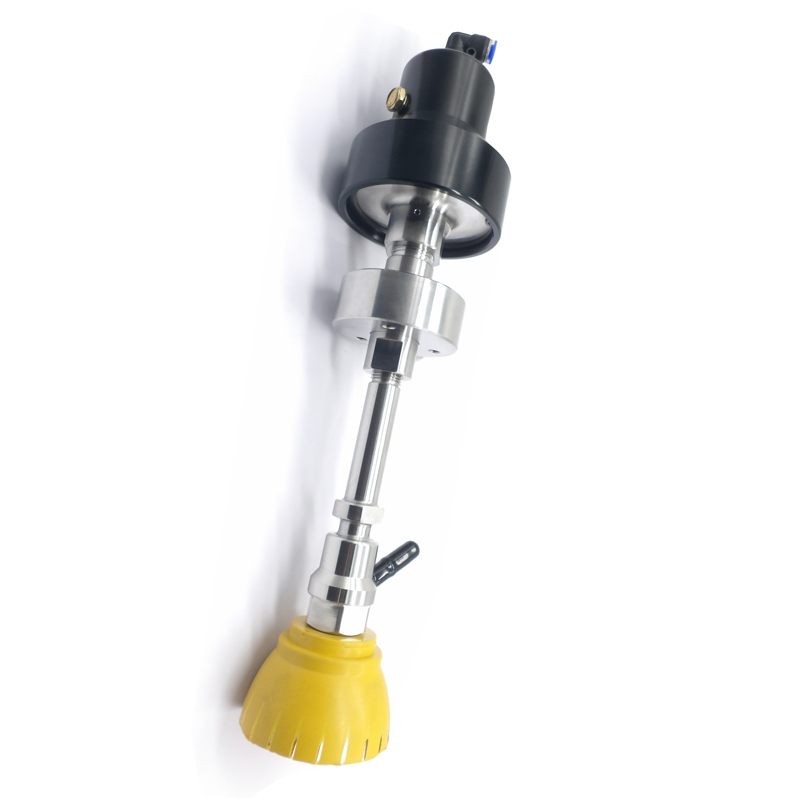

P3 Cutting Head Assembly：

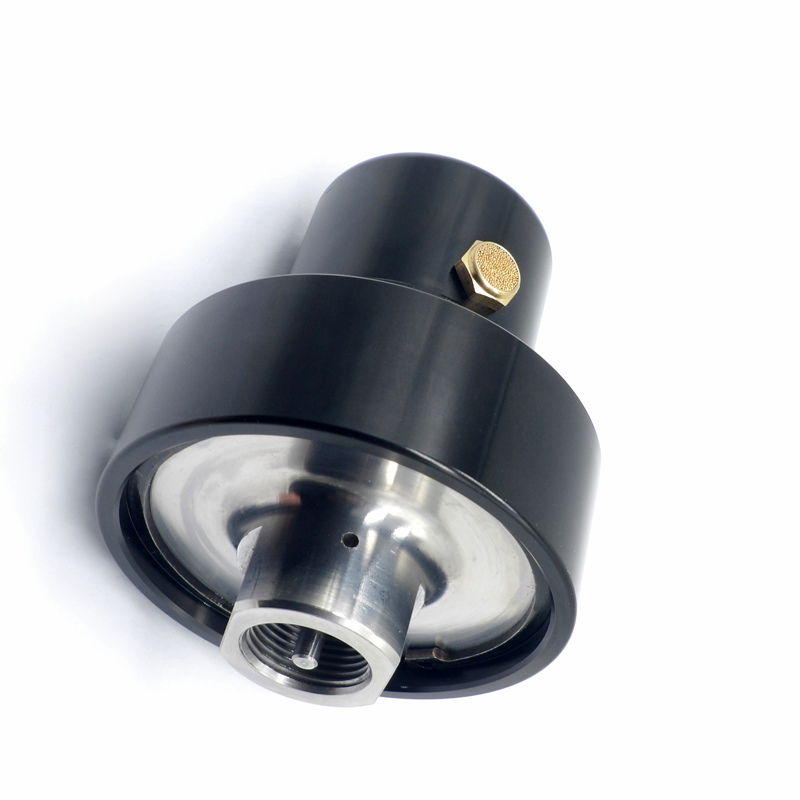

Air Acutator 001323-1:
Valve Body 006143-1:

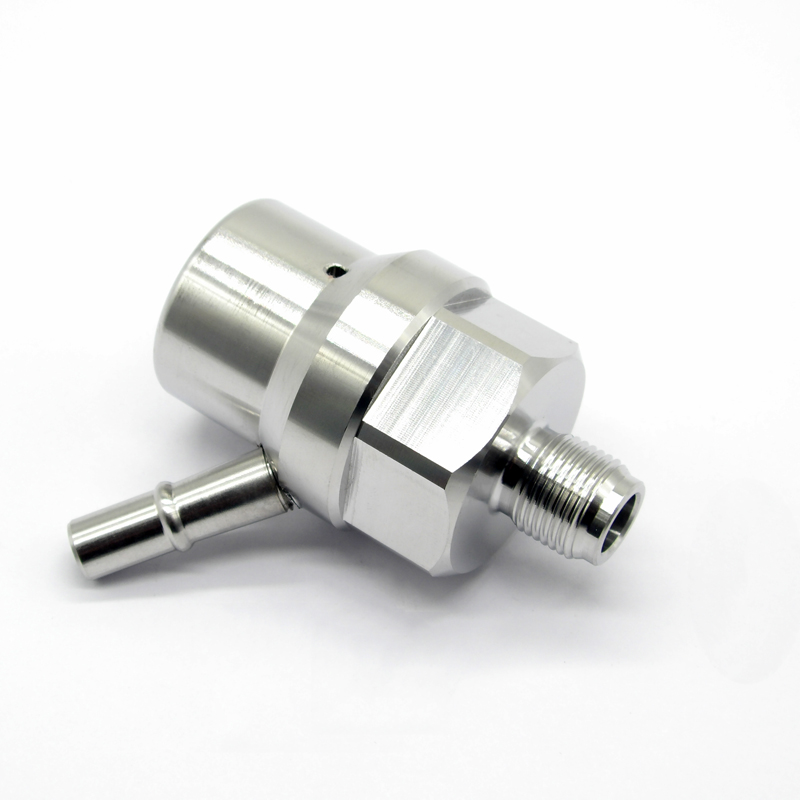

Mixing Chamber 009940-1:

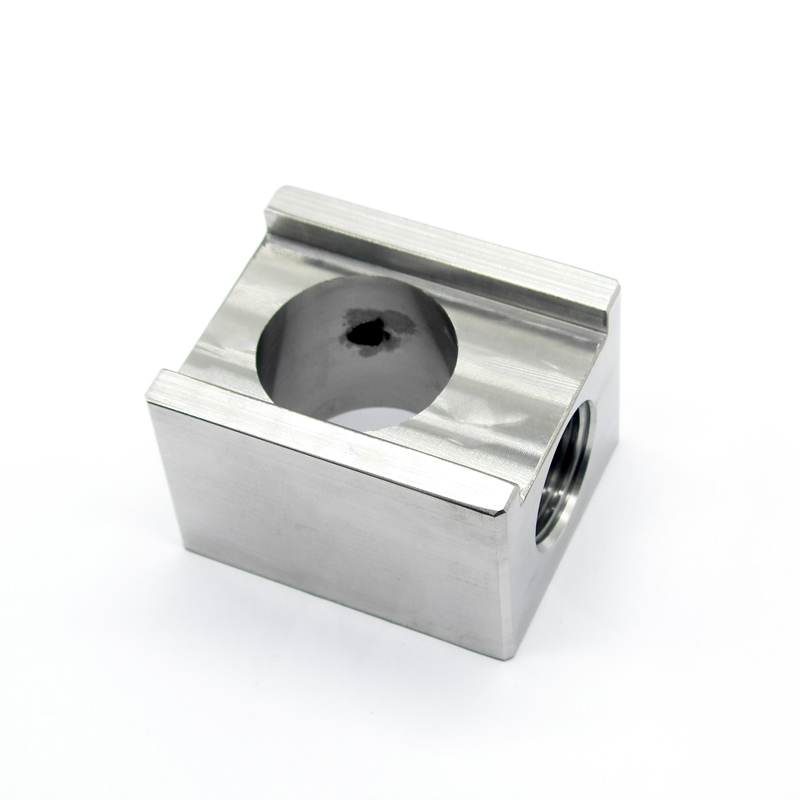

On/Off Mounting Collar 006144-1：

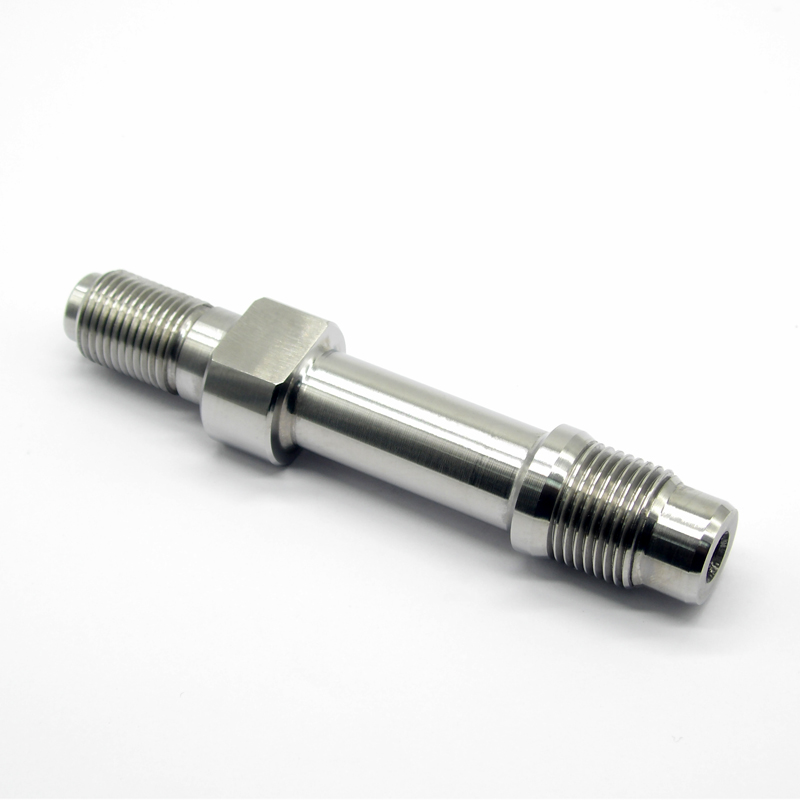

Nozzle Tube 014196-1:

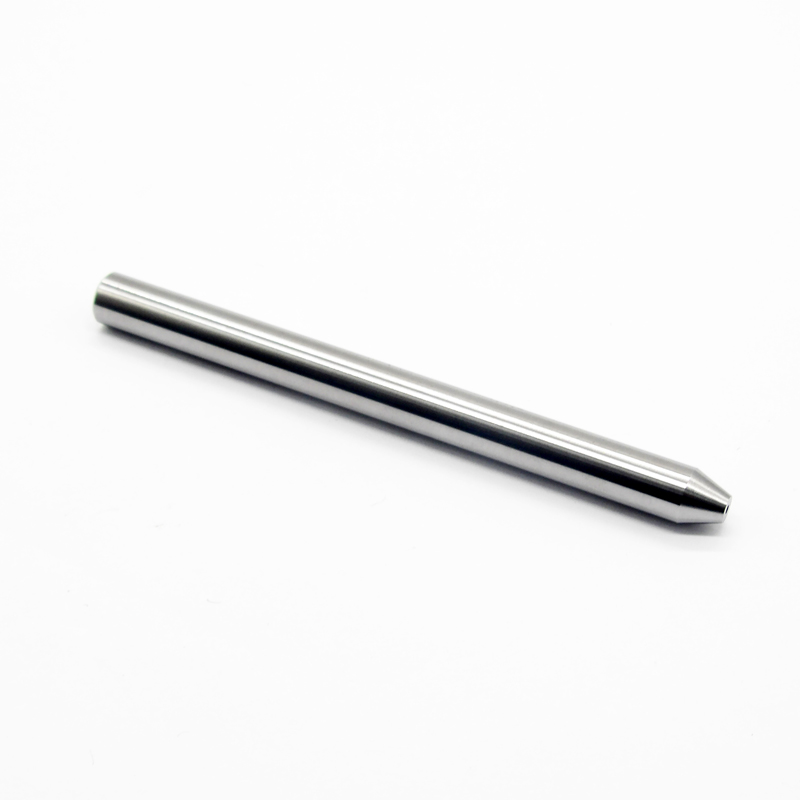

Nozzle 7.14*1.02*76.2mm :

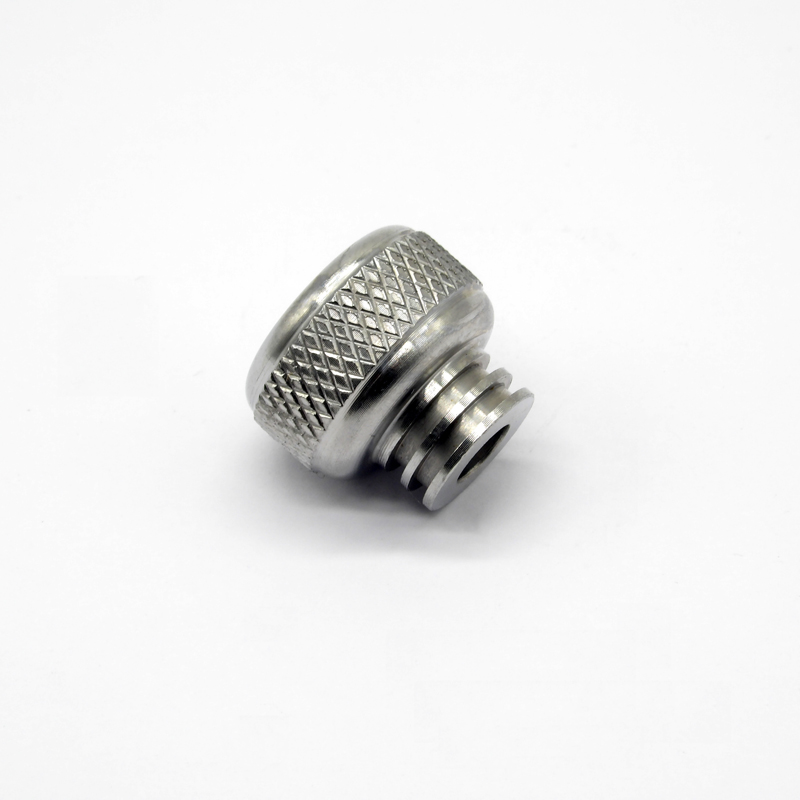

Abrasive Nozzle Clamp 009939-1:

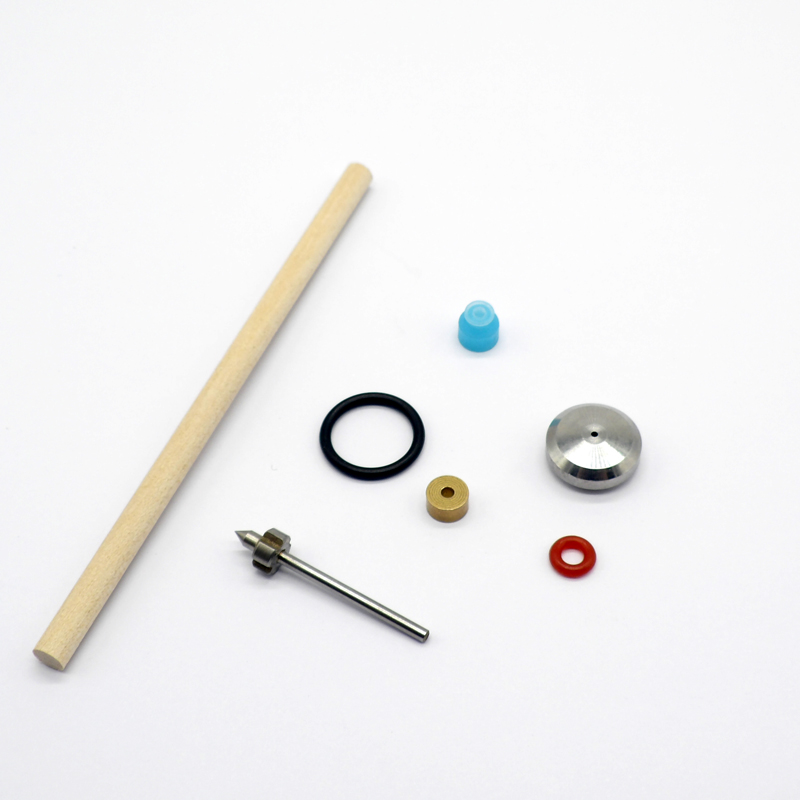

On/ Off Repair Kit 001959-1:
