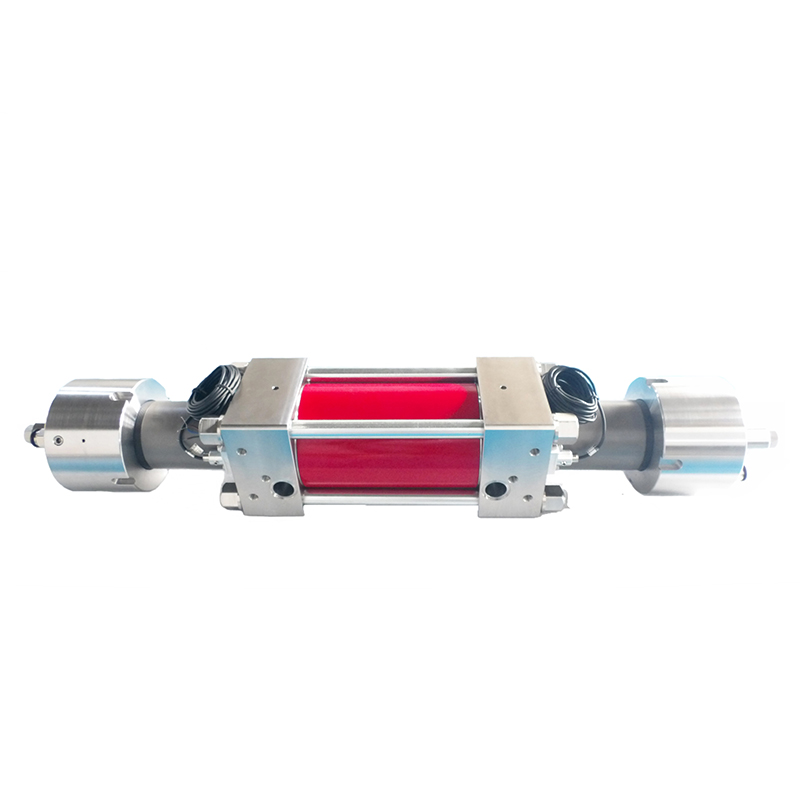

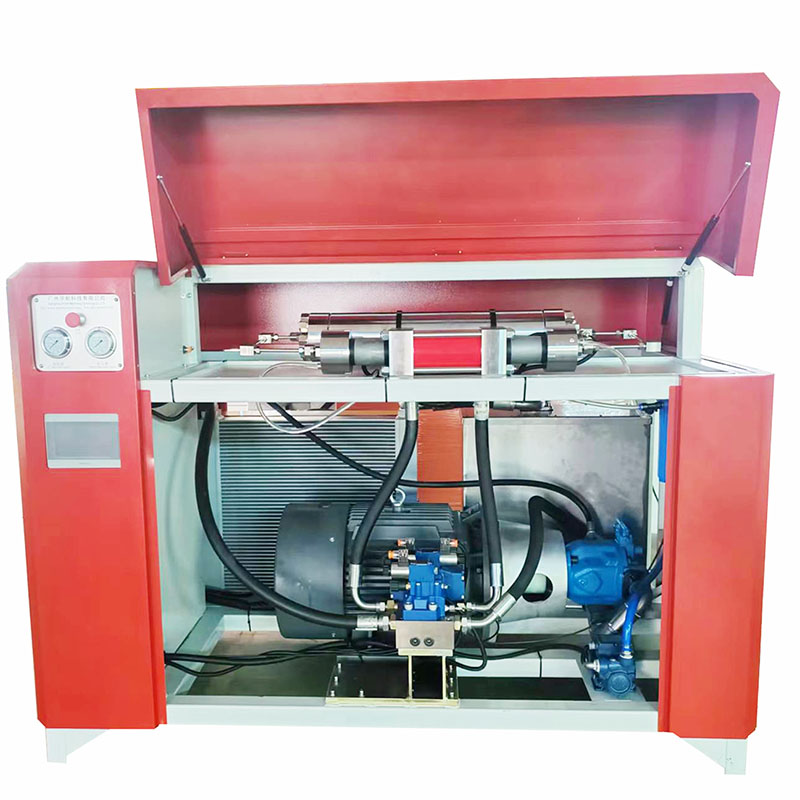

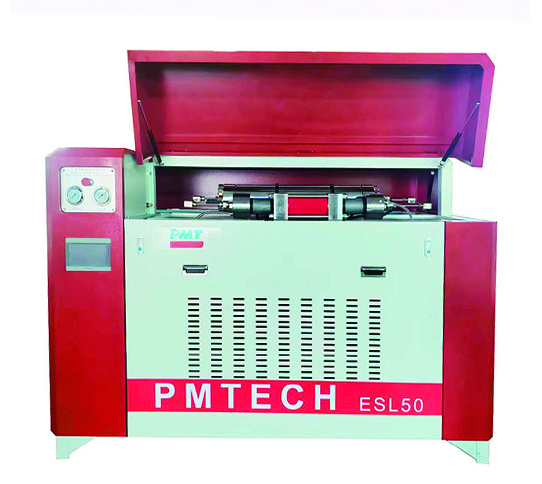

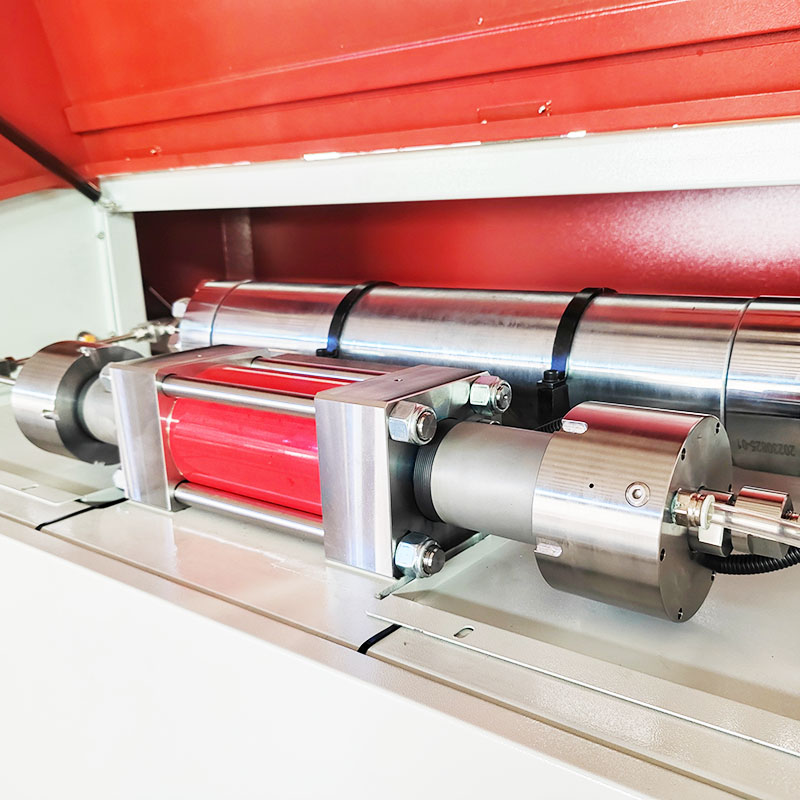

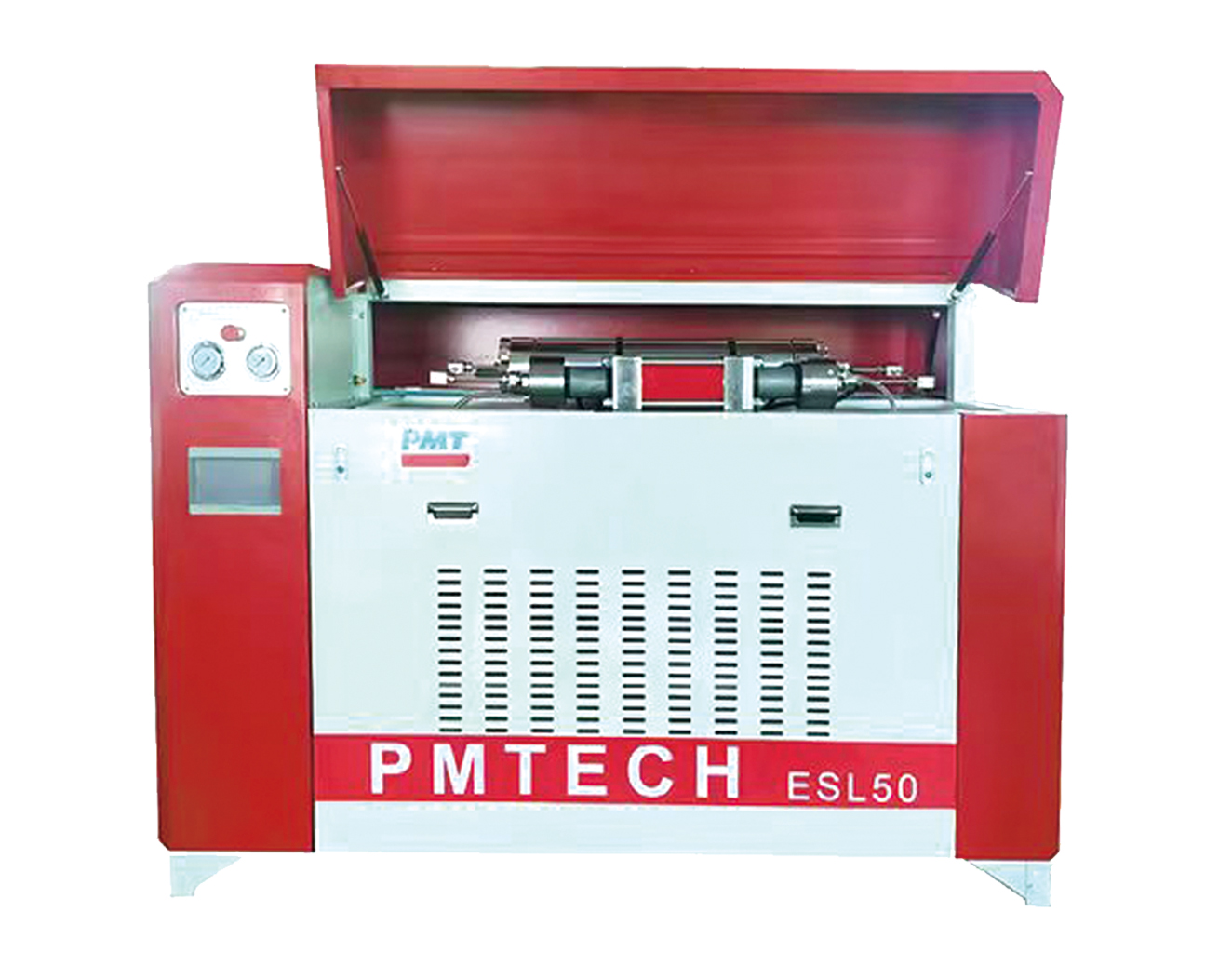

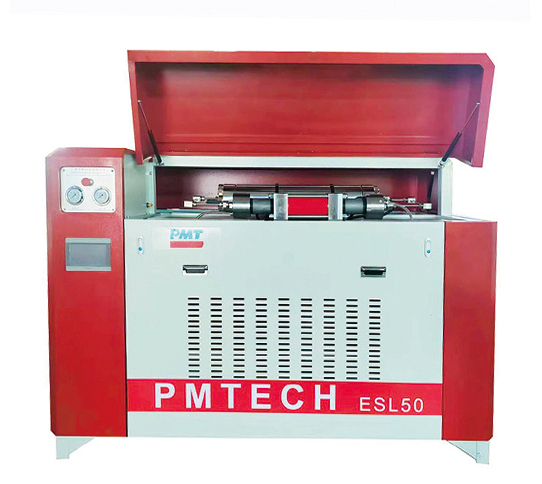

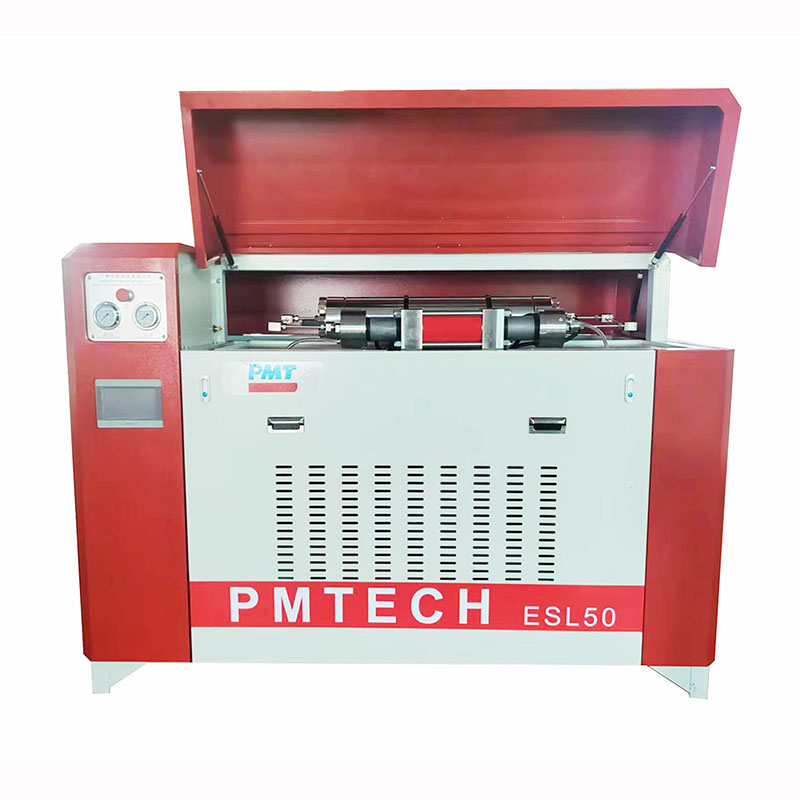

The ESL50 waterjet cutting intensifier pump is widely recognized as a practical and popular choice in the industry. It features an imported intensifier assembly and utilizes a hydraulic pressure boosting method. Operating at a standard working pressure of 50,000psi (3500bar), this pump boasts an advanced and optimized design. Its fully protective design ensures maximum safety and reliability during operation. The ESL50 waterjet cutting intensifier pump is a dependable and efficient solution for various cutting applications.
Technical Parameters:
Dimension(L*W*H) | 1800*1000*1400mm |
Weight | 1000kg |
Power rate | 37kw/50HP |
Max. pressure | 420Mpa /4200bar |
Working pressure | 350-400Mpa |
Max. Flow rate | 3.8L/min |
Orifice Dia | 0.33-0.35mm |
Power supply | 380 V 50hz |
Water supply | ≥15.1L/min |
Accumulator | 1.5 liter |
Hydraulic system | Bosch Rexroth |
Main Motor | Siemens Brand |
