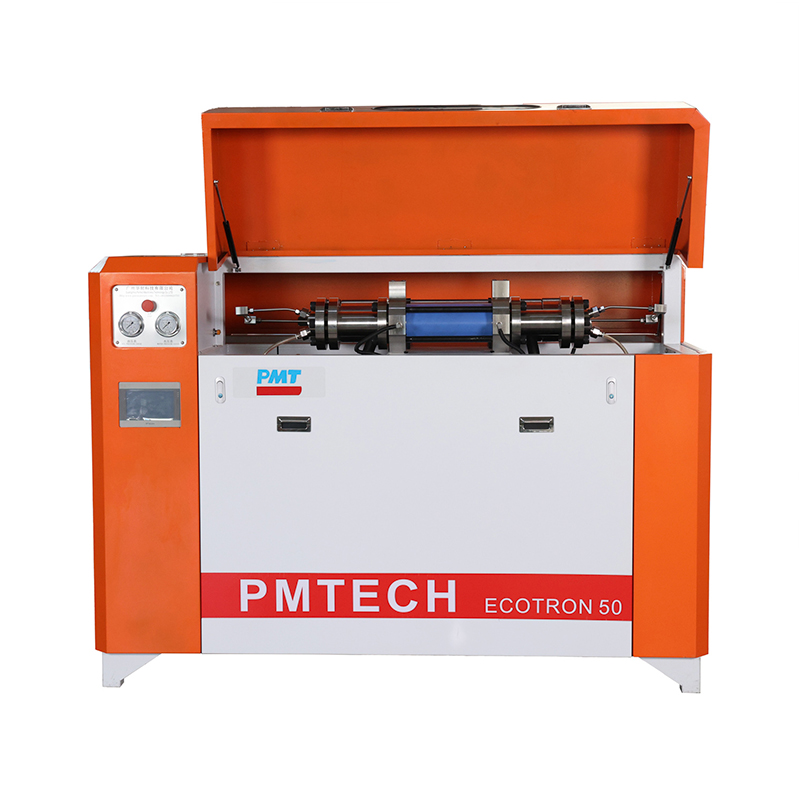

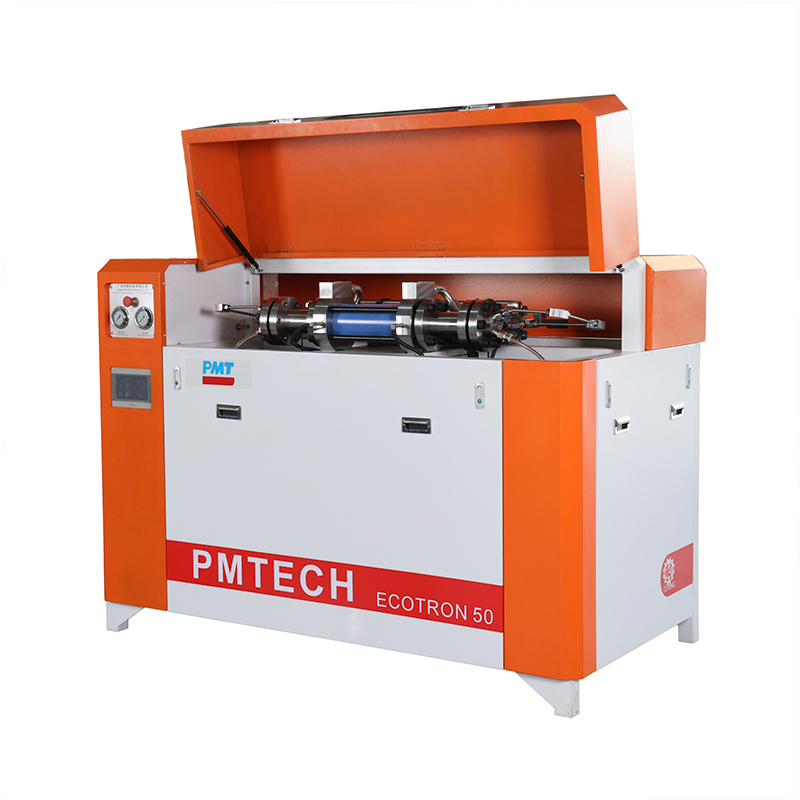

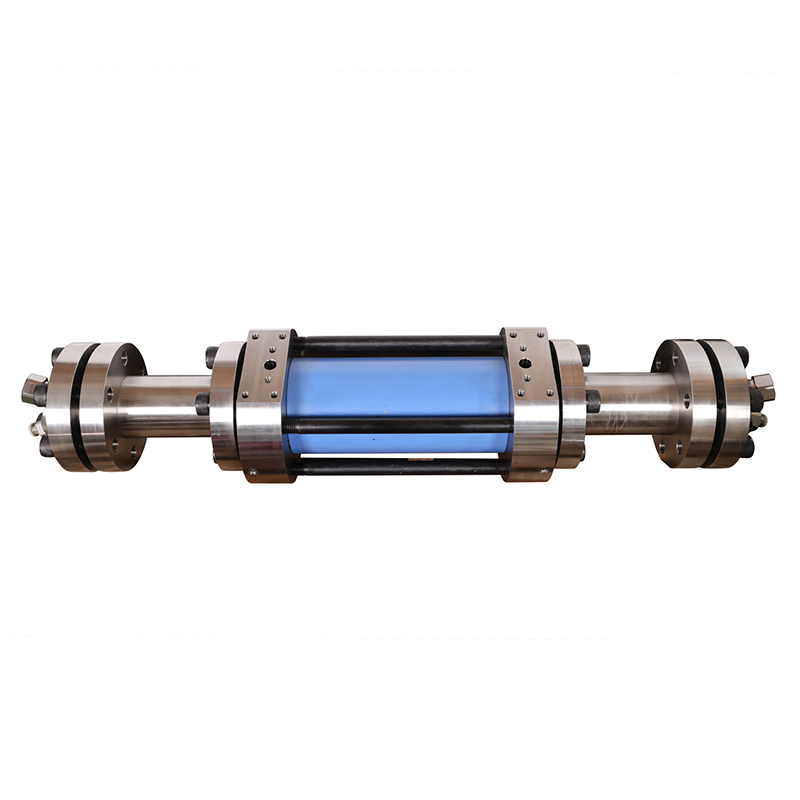

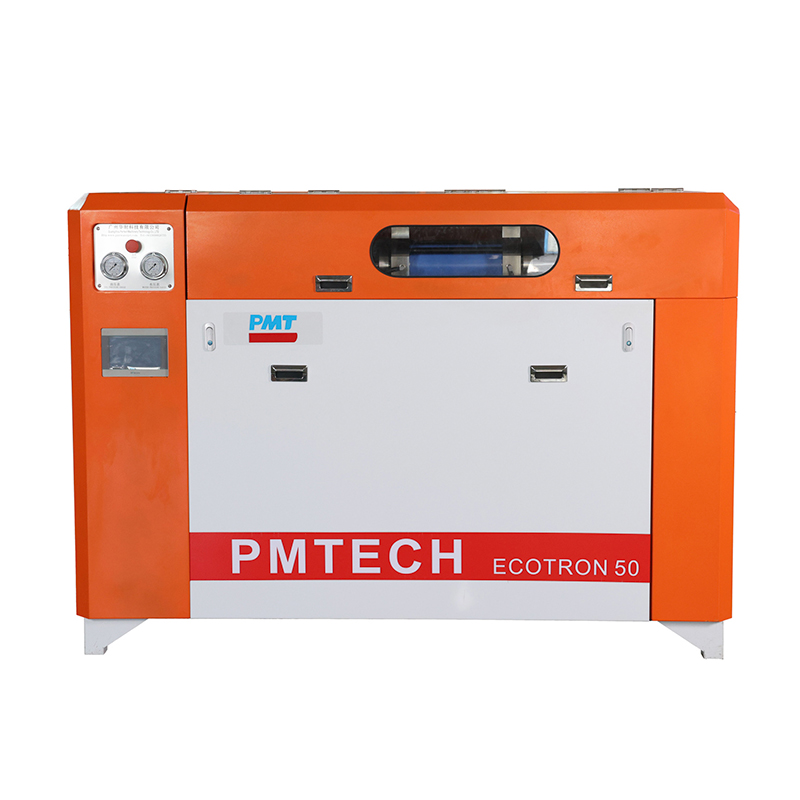

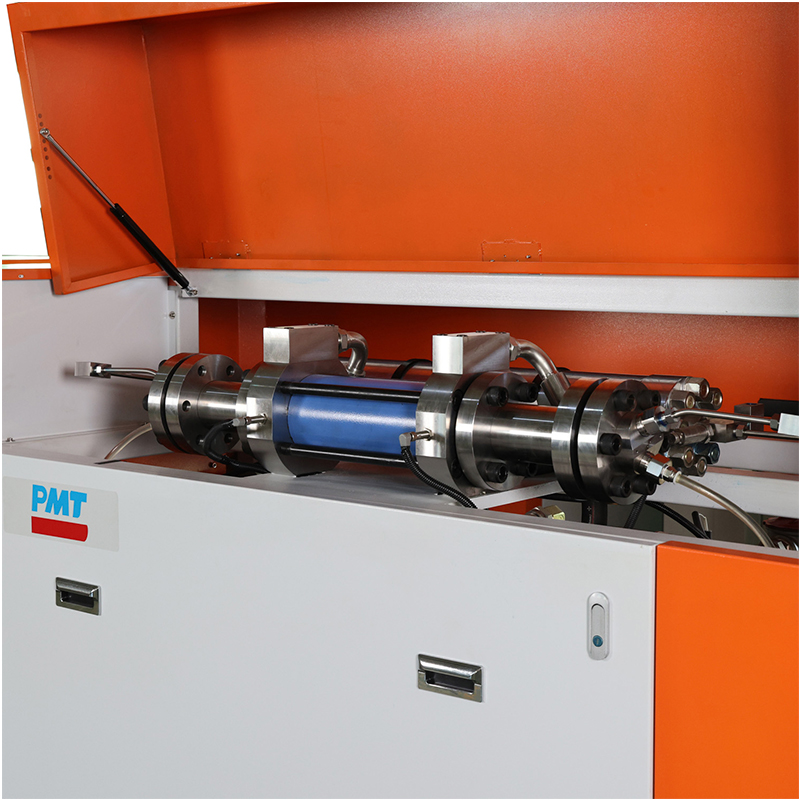

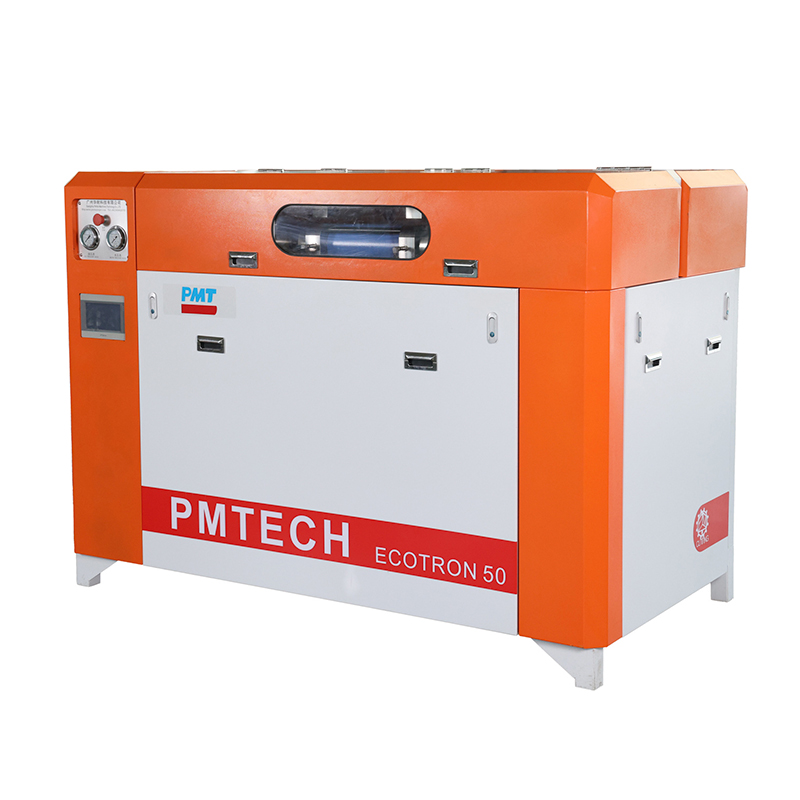

ECOTRON 50 Waterjet Cutting Booster Pump offers a cost-effective solution to enhance waterjet cutting performance. This pump incorporates imported intensifier components and hydraulic pressurization, resulting in a normal operating pressure of 50,000psi (3500bar). With its advanced construction and comprehensive protection features, it guarantees reliable and efficient operation. The ECOTRON 50 Waterjet Cutting Booster Pump is a practical choice for improving cutting performance while maintaining cost-effectiveness.
Product Advantage:
1. Adopt German Bosch Rexroth hydraulic system.
2. Adopt full protection structure. It has the efficacy of safety, dust-proof and noise-proof.
3. Adopt Siemens motor, suitable for cutting various material
Technical Parameters:
Dimension(L*W*H) | 2100*1200*1400mm |
Weight | 1100kg |
Power rate | 37kw/50HP |
Max. pressure | 420Mpa /4200bar |
Working pressure | 350-400Mpa |
Max. Flow rate | 3.8L/min |
Orifice Dia | 0.33-0.35mm |
Power supply | 380 V 50hz |
Water supply | ≥15.1L/min |
Accumulator | 1.5 liter |
Hydraulic system | Bosch Rexroth |
Main Motor | Siemens Brand |
