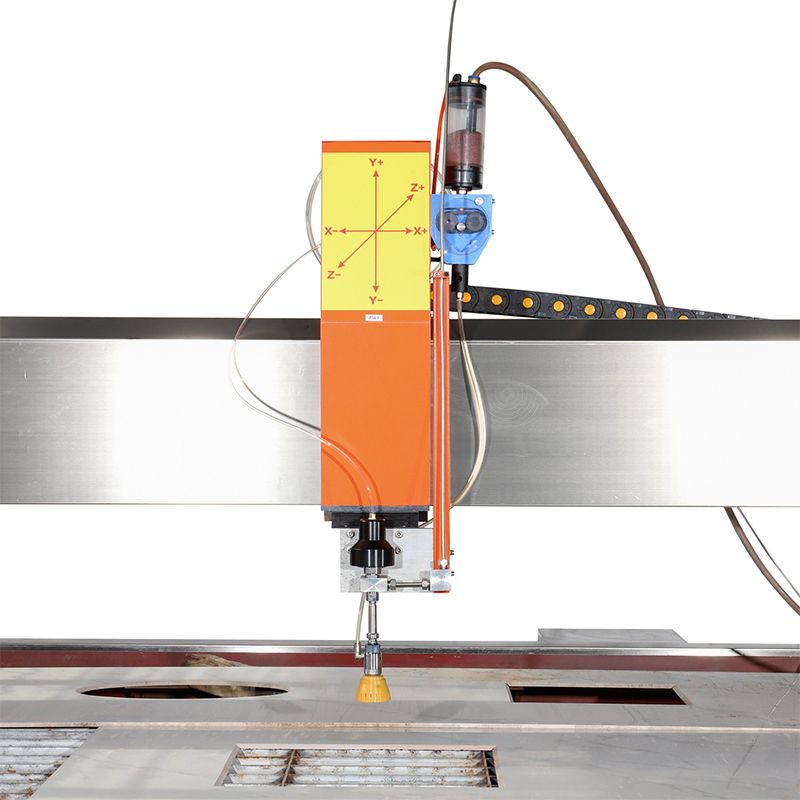

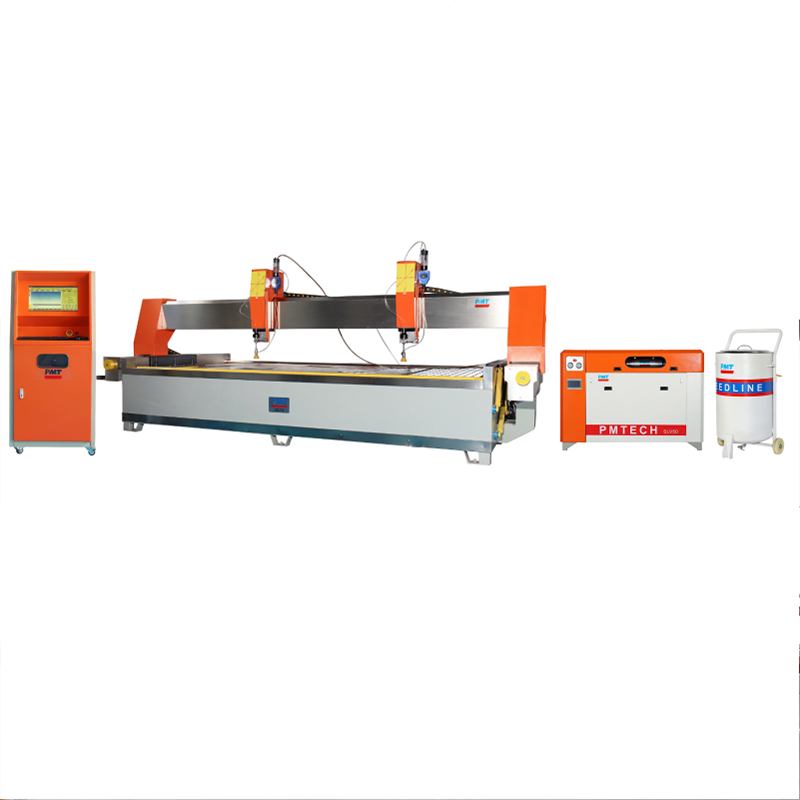

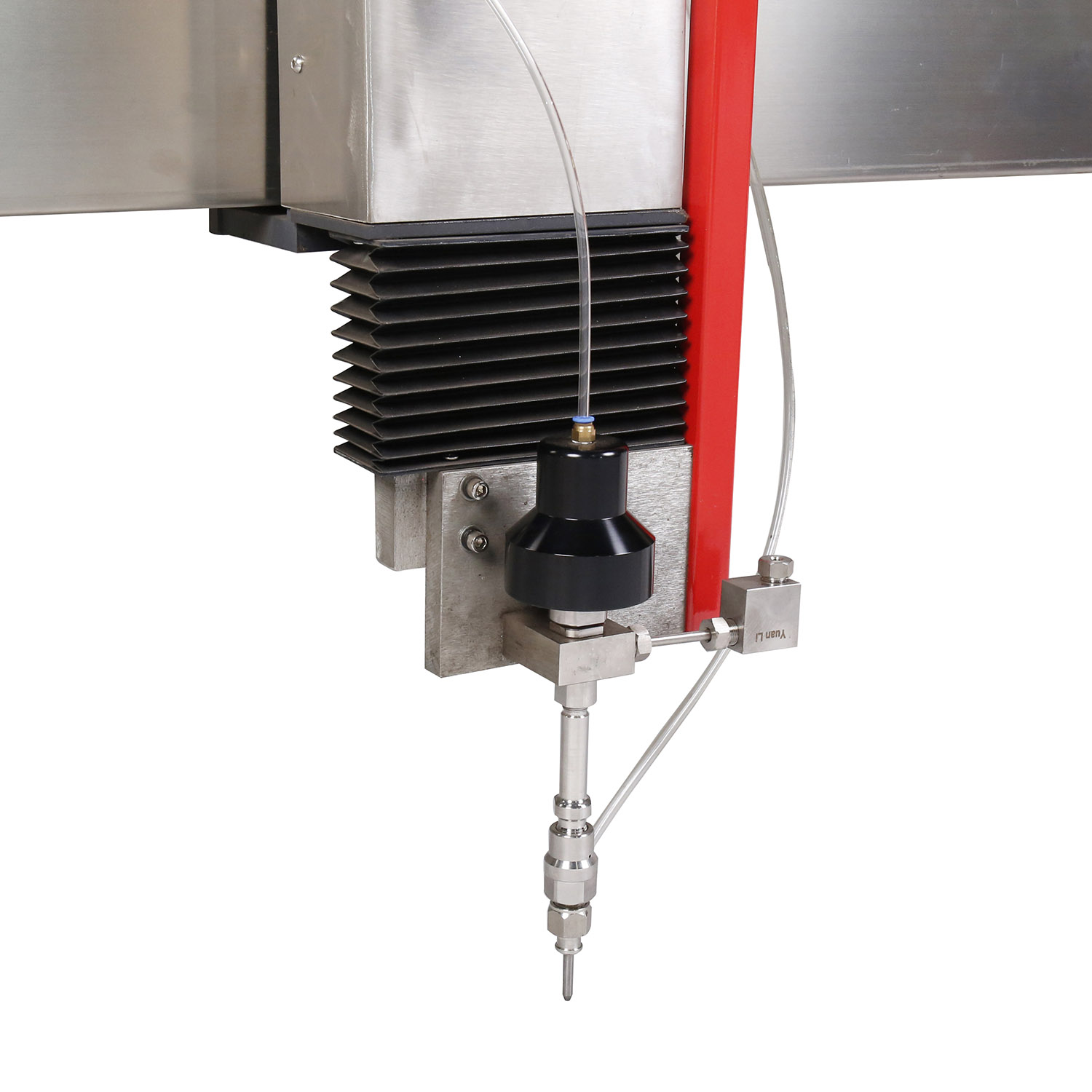

Cutting head Waterjet Cutting Machine
Advantage of PMT waterjet cutting machine
About size, we have 4000*2000 mm , 3000*2000mm , 2000*1500mm , 2500*1500mm , 6000*2000mm ect, which you want?

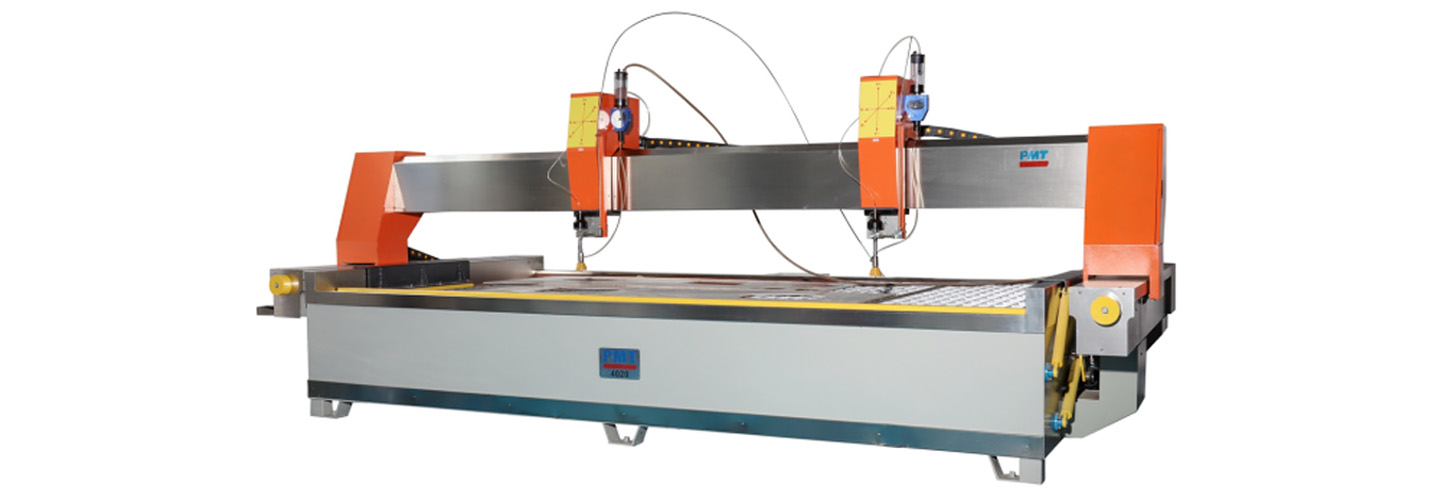

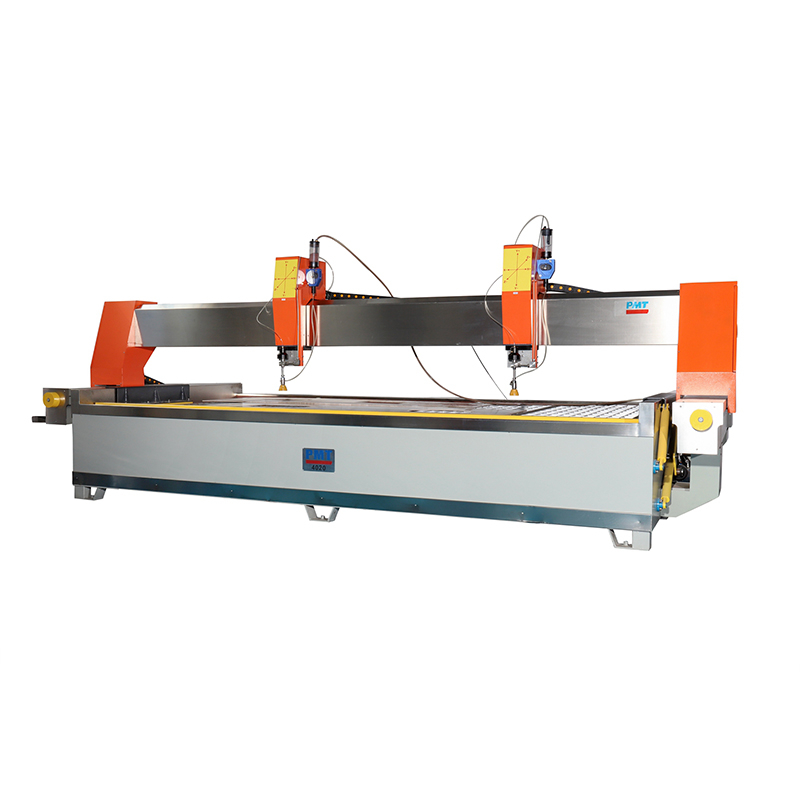

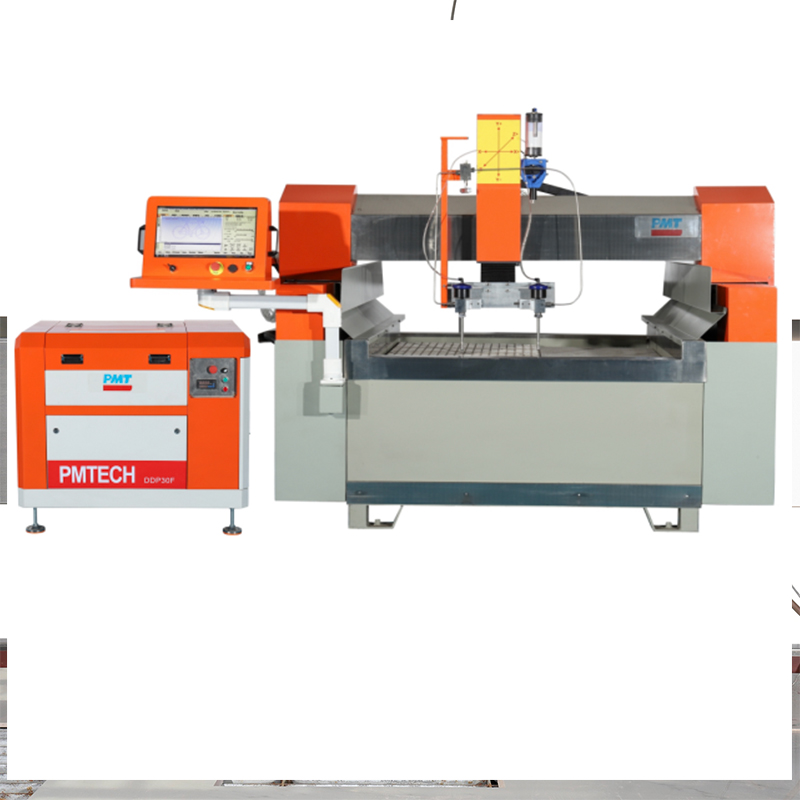

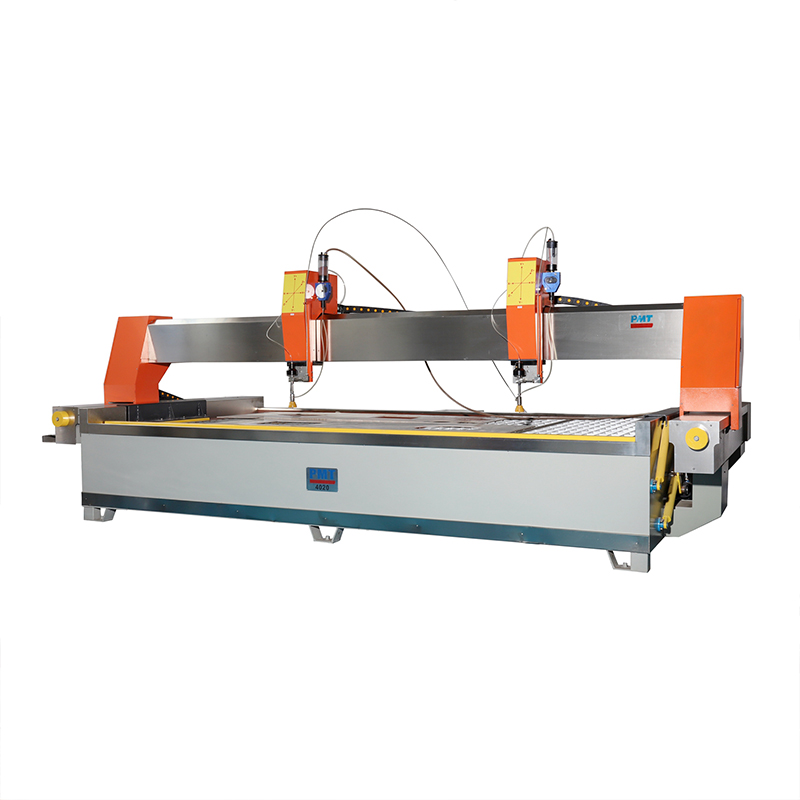

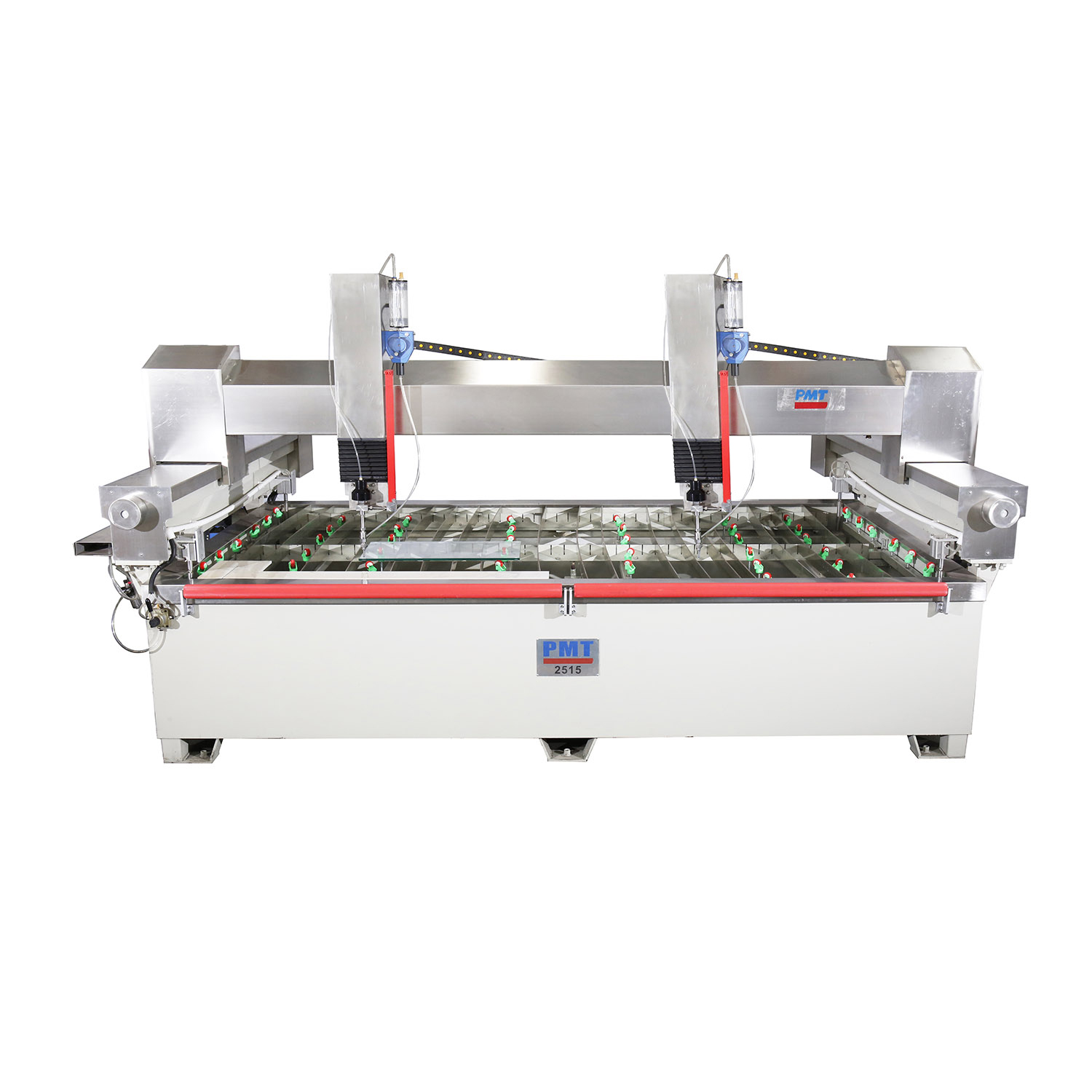

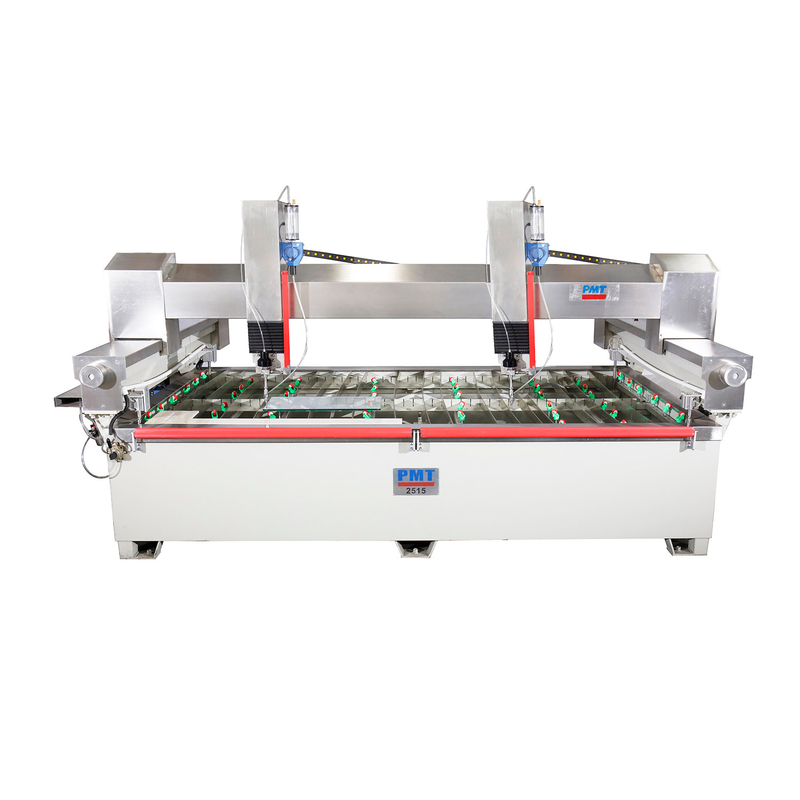

1. Working Table & Controllor
The overall gantry working platform is the most stable structural configuration, with mechanical movement of the X and Y axes during processing while the worktable remains fixed.
When performing high-speed and high-performance cutting on large-format materials, it ensures balanced force on the crossbeam and synchronized operation of the crossbeam.
Model | 2015 | 2515 | 3020 | 4020 | 6020 |
Dimension(mm) | 2650*2150mm | 3100*2150mm | 4500*2300mm | 5250*2300mm | 7300*3100mm |
Max. cutting range | 2000*1500mm | 2500*1500mm | 3000*2000mm | 4000*2000mm | 6000*2000mm |
Travel of Z axis | 180mm | ||||
Servo system | Weihong,OEM Panasonic | ||||
ball-screw linear-rail | ABBA/TBI,Taiwan Brand | ||||
Re-positioning accuracy | ±0.025mm/m | ||||
Cutting accuracy | ±0.1mm | ||||
Max. running speed | 15m/min | ||||
lubrication | Oil Immersion | ||||
Material | 203stainless steel material tank,cast steel beam,rubber and stainless steel cover | ||||
2. Feature
The separation of the water tank and mechanical transmission parts does not affect cutting accuracy during long periods of work and prevents deformation of the entire machine.
1.Safety protection The system is equipped with a dual overtravel limit protection function, including hard and soft limit protections, to prevent accidents during high-speed operation. The special design of the protective cover effectively prevents water and sand, making the machine durable and aesthetically pleasing.
2.Lubrication system The centralized automatic lubrication system ensures that lubricating oil reaches every lubrication point in the transmission system on time, ensuring smooth and reliable machine operation and simple maintenance.
3.Lead screws: Adopting high-quality rolling guides and ball screws from taiwan to guarantee high precision in part processing, smooth transmission, durability, and achieve seamless movement with good accuracy retention.
3.Cutting sample
