Technical Parameters:
Model | PRO50 |
Dimension(L*W*H) | 1800*1300*1400mm |
Weight | 1200kg |
Power rate | 37kw/50HP |
Max. pressure | 600Mpa /6000bar |
Working pressure | 450-600Mpa |
Max. oil discharge | 104L/min |
Max. Flow rate | 3.0L/min |
Orifice Dia | 0.25mm |
Power supply | 380 V 50hz |
Water supply | ≥15.1L/min |
Accumulator | 1.5 liter |
Hydraulic system | Bosch Rexroth |
Main Motor | Siemens Brand |
Technical Parameters:
Model | PRO50 |
Dimension(L*W*H) | 1800*1300*1400mm |
Weight | 1200kg |
Power rate | 37kw/50HP |
Max. pressure | 600Mpa /6000bar |
Working pressure | 450-600Mpa |
Max. oil discharge | 104L/min |
Max. Flow rate | 3.0L/min |
Orifice Dia | 0.25mm |
Power supply | 380 V 50hz |
Water supply | ≥15.1L/min |
Accumulator | 1.5 liter |
Hydraulic system | Bosch Rexroth |
Main Motor | Siemens Brand |

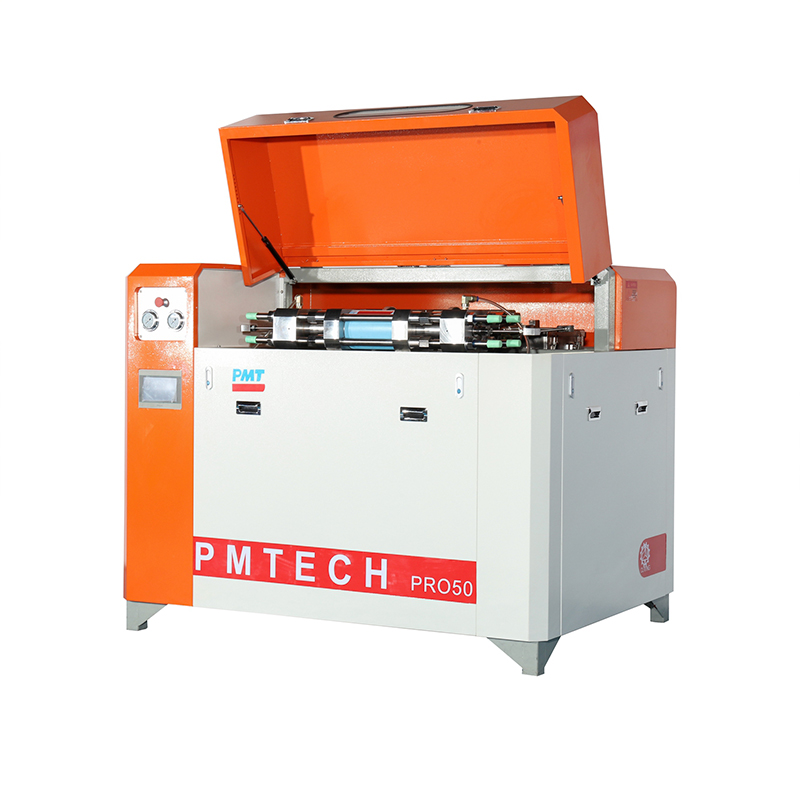

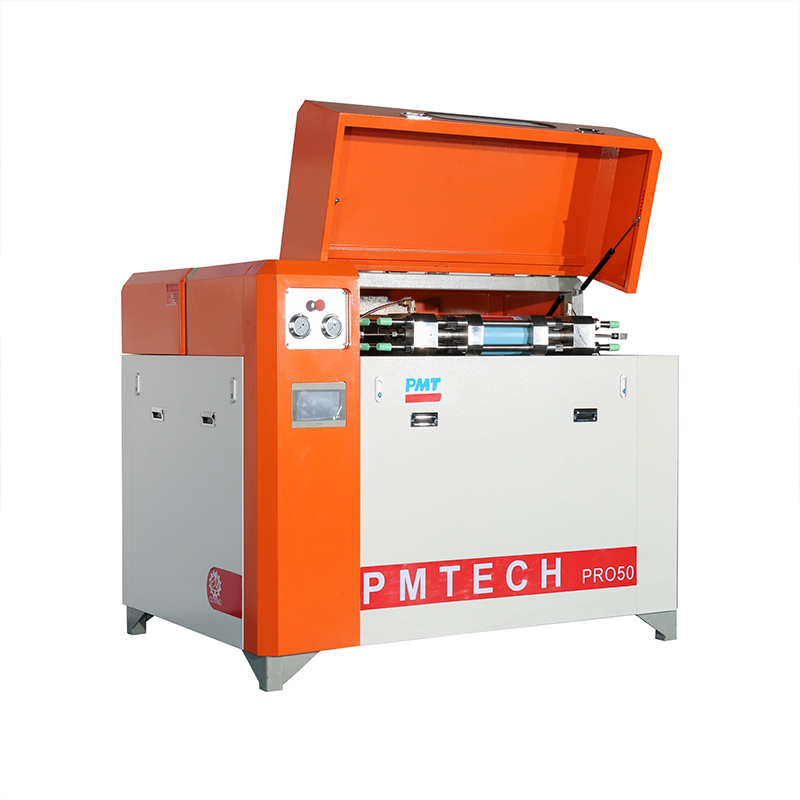

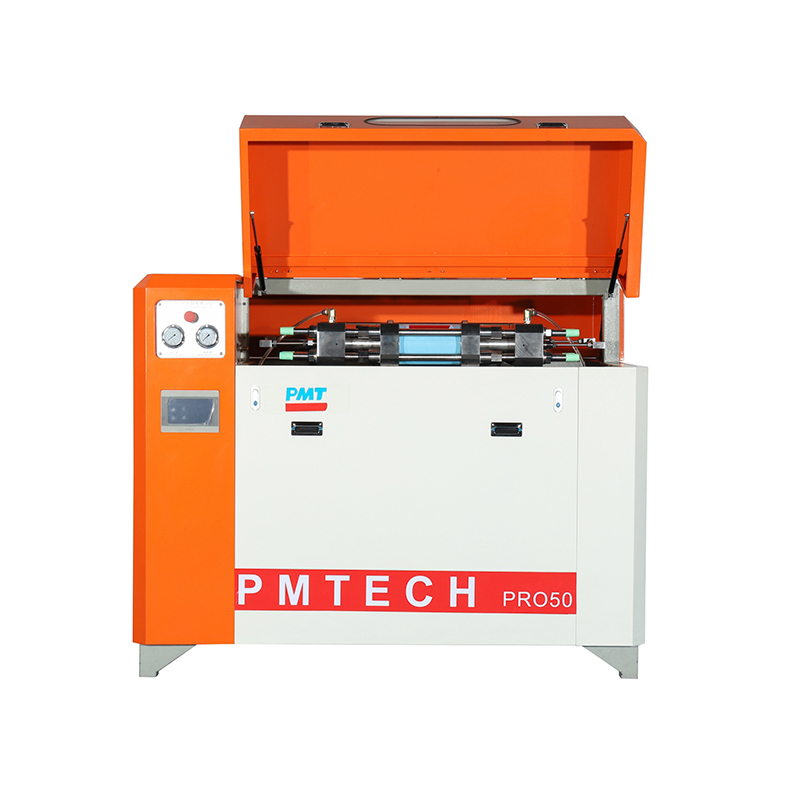

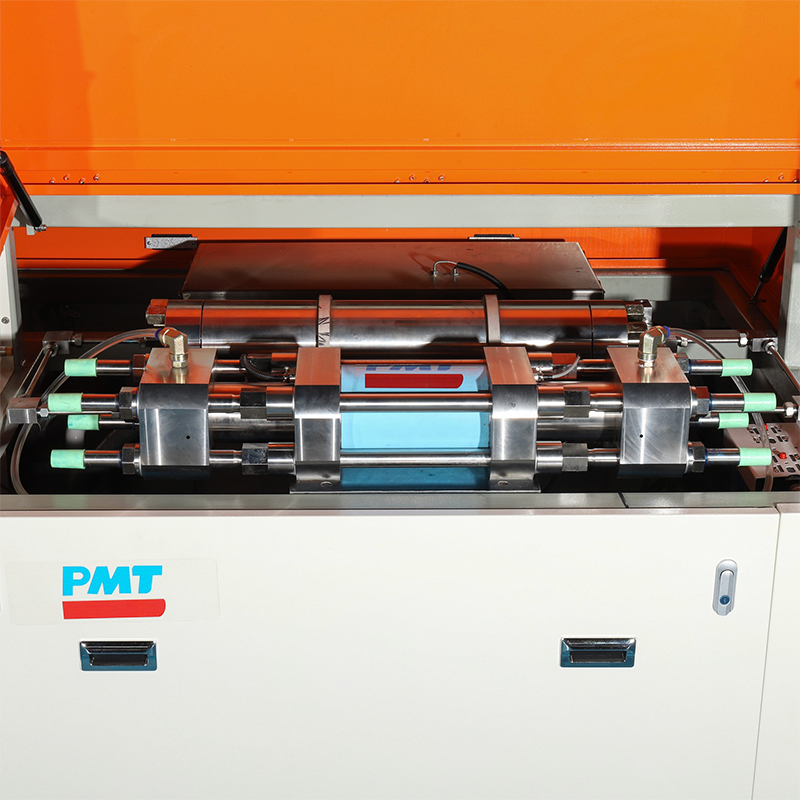

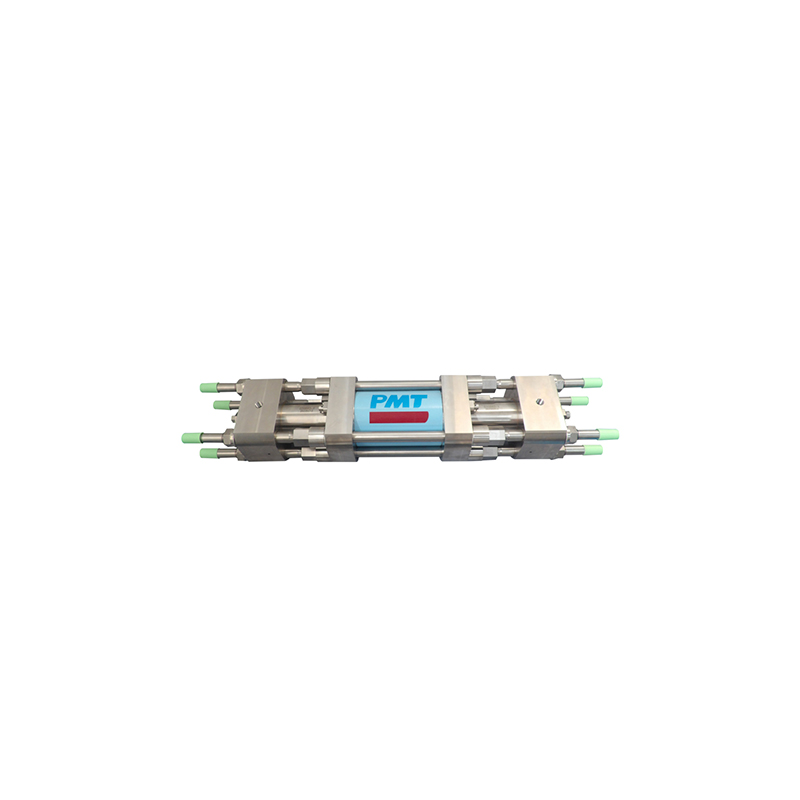

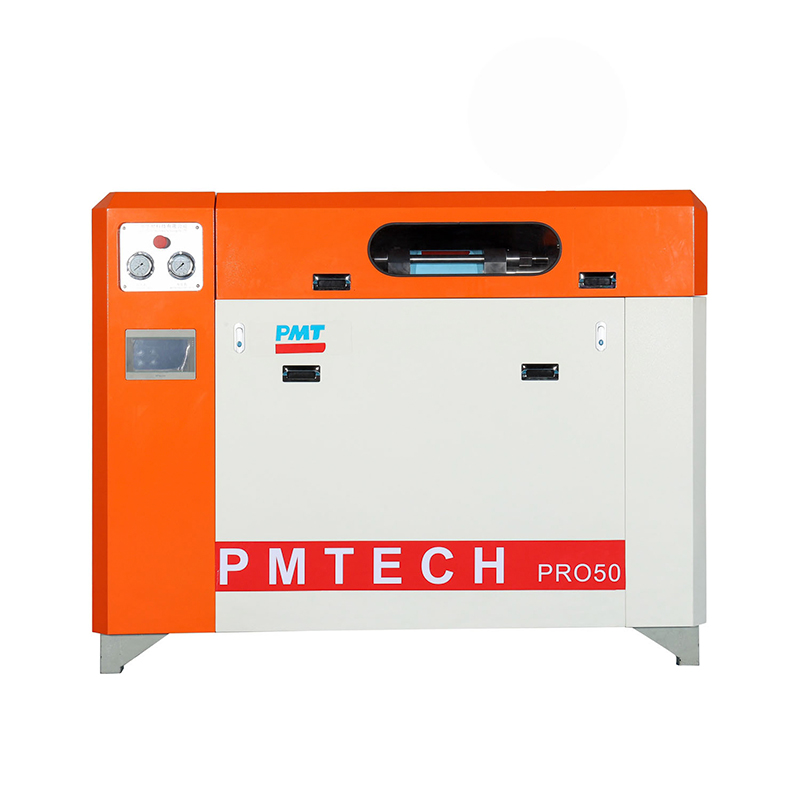

The 90KSI-PRO 50 intensifier pump is the most advanced and robust high-pressure system available. With 94k Pressure technology, you will cut faster and increase production while reducing costs. Cut up to twice as fast as 60,000 psi, use 30-60% less abrasive, and deliver 20-30% lower part costs with the 90KSI-PRO 50.
The operator station of this pump is intelligently designed to prioritize ease of operation and maintenance. The pump controls, pressure settings, and on/off switch are strategically located at the operator station, ensuring convenient access and effortless adjustment. This user-friendly layout allows operators to quickly and easily navigate the necessary settings without any complications. The intuitive placement of the on/off switch guarantees swift and hassle-free start-up and shutdown procedures. With its thoughtful design, this pump streamlines the operation and maintenance process, providing operators with a seamless and efficient experience.
Product Advantage:
1. Digital pressure transducer and display make it easy for operators to see their operating pressure, reducing the possibility of damaged materials due to incorrect pressure.
2. Designed with ease of operation and maintenance in mind, the pump controls, pressure settings, and on/off switch are conveniently found at the operator station.
3. Convenient, user-friendly design: removable side panels for full maintenance accessibility and sound deadening materials.
The 90KSI-PRO 50 intensifier pump is the most advanced and robust high-pressure system available. With 94k Pressure technology, you will cut faster and increase production while reducing costs. Cut up to twice as fast as 60,000 psi, use 30-60% less abrasive, and deliver 20-30% lower part costs with the 90KSI-PRO 50.
The operator station of this pump is intelligently designed to prioritize ease of operation and maintenance. The pump controls, pressure settings, and on/off switch are strategically located at the operator station, ensuring convenient access and effortless adjustment. This user-friendly layout allows operators to quickly and easily navigate the necessary settings without any complications. The intuitive placement of the on/off switch guarantees swift and hassle-free start-up and shutdown procedures. With its thoughtful design, this pump streamlines the operation and maintenance process, providing operators with a seamless and efficient experience.
Product Advantage:
1. Digital pressure transducer and display make it easy for operators to see their operating pressure, reducing the possibility of damaged materials due to incorrect pressure.
2. Designed with ease of operation and maintenance in mind, the pump controls, pressure settings, and on/off switch are conveniently found at the operator station.
3. Convenient, user-friendly design: removable side panels for full maintenance accessibility and sound deadening materials.
