5 axis cutting head Waterjet Cutting MachineAdvantage of PMT waterjet cutting machine
Accomplish perfect cutting quality with our waterjet shaper.
Accomplish slicing exactness up to 0.1mm with our waterjet shaper, considering exact edge joints and the formation of mind boggling riddles and wall paintings.
Experience quick cutting velocity and brilliant item consistency and compatibility with our waterjet shaper.
Our waterjet shaper considers boring, cutting, and framing in a solitary cycle.
Improve the work space by diminishing residue and clamor influence on administrators with our waterjet shaper.
Our waterjet cutting innovation guarantees a virus cutting cycle that saves the inside construction of materials.
Our waterjet shaper is the best decision for handling fragile porcelain and composite materials.
Cut a great many materials including metal, elastic, froth, plastic, composite materials, stone, earthenware tile, marble, and glass with our waterjet shaper.
Browse various sizes including 6020,6030,8030
1. Working Table & Controllor

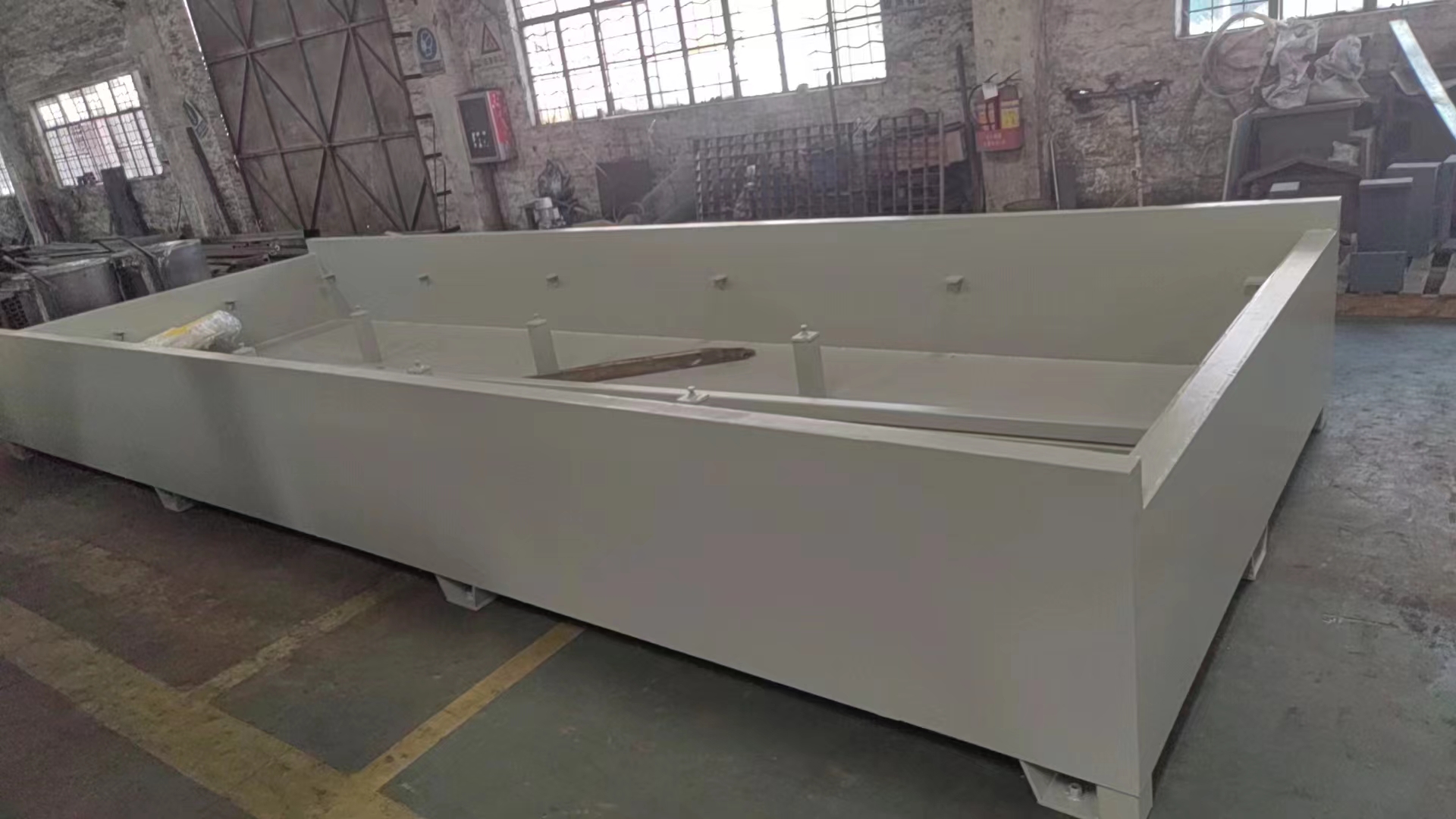

The PMT waterjet cutting table is outfitted with a refined transmission framework involving the X, Y, and Z tomahawks, a water tank, cutting head, grease framework, and servo driving framework.
Its gantry mechanical construction is explicitly intended for enormous measured machines, taking into consideration expanded travel distances along the X and Y tomahawks, making it reasonable for handling mind boggling and larger than average parts.
This cutting table is a best in class 2-D PC-controlled framework, including the Y-pivot, catcher, X-hub, Z-hub (cutting head rest), cutting head, high-pressure hose, and rough box. To guarantee accuracy and smooth activity, both the X and Y tomahawks are outfitted with straight aides and ball screws.
Model | 6020 | 6030 | 8030 | 12030 | |
Dimension(mm) | 7200*3500mm | 7200*4500mm | 9200*4500mm | 13200*4500mm | |
Max. cutting range | 6000*2000mm | 6000*3000mm | 8000*3000mm | 12000*3000mm | |
Travel of Z axis | 180mm | ||||
Servo system | Weihong,OEM Panasonic | ||||
ball-screw linear-rail | ABBA/TBI,Taiwan Brand | ||||
Re-positioning accuracy | ±0.025mm/m | ||||
Cutting accuracy | ±0.1mm | ||||
Max. running speed | 30m/min | ||||
lubrication | Oil Immersion | ||||
Material | 203stainless steel material tank,cast steel beam,rubber and stainless steel cover | ||||
2.ESL50 High presssure pump structure
Dimension(L*W*H) | 1800*1000*1400mm |
Weight | 1200Kg |
Power rate | 37kw/50hp |
Max. pressure | 420Mpa /4200bar |
Working pressure | 300-350Mpa |
Max. oil discharge | 104L/min |
Max. Flow rate | 3.7L/min |
Power supply | 380 V 50hz |
Water supply | ≥15.1L/min |
Accumulator | 1.5liter |
3. CNC Controller
Power supply | AC220V 50/60Hz |
Drawing system | Auto-CAD |
Computer system | Windows 7 |
Function | Remoter controller |
screen | Apply 19 inch LCD |
Water jet software NC-Studio-V10 | Support DXF file and NC code |
4.AC 5 Axis cutting system for diamond cutting head
Re-positioning accuracy | ±0.02/1000mm |
Cutting accuracy | ±0.15/1000mm |
Max. prussure | 420mpa |
Orifice type | Parse 3 |
Nozzle type | 7.14*1.02*76mm |
running travel of Z axis | 180mm |
A-Axis Roteting Angle | ±67° |
C-Axis Roteting Angle | ±360° |
Cutting Angle | ±45° |
application | 2D/3D cutting |
5.Abrasive Feeding System
Dimension(L*W*H) | 700*700*1350mm |
Weight | 80kg |
Max. capacity | 200kg |
Max. air pressure supply | 2bar |
software controlling motor adjustting regulator | |
Eliminates abrasive waste | |
Our factory not only have all kinds of size of water jet machines and waterjet spare parts, but also our company sell all kinds of stone carving machines, laser machines, bridge cutting machines, edge grinding machines, row pitch machines and rope machines and so on !!!
Technical Training
1, basic working principle of the super-high pressure water jet cutting machine2 , working principle of the high-pressure system and supercharge
3 , replacement of the high-pressure sealed, low-pressure sealed and high-pressure parts
4 , maintenance of the high-pressure system and judgment and troubleshooting of common failures
5 , CNC Programming&operation&operation of the NC cutting platform
6 , daily maintenance of the NC cutting platform
7 , equipment installation
8 , abrasive control and transportation operation and CNC communication
9 , operation of the CAD / CAM software and CNC communication
10 , working principle, maintenance and judgment and troubleshooting of common failures of the main high-pressure functional parts, high-pressure water switches and abrasive cutting head
Product packaging
Waterjet cutting machine bundle: Our waterjet slicing machines are painstakingly bundled to guarantee security during transportation. The bundle incorporates a solid wooden outside, alongside delicate bundling materials inside. On the other hand, we offer the choice of utilizing all delicate film bundling for added assurance. The bundle contains the HP siphon, waterjet cutting table bed with cutting head, CNC waterjet regulator, waterjet sand feeder, and extra parts for the siphon. The whole arrangement of waterjet machine gear is stacked into either a 20-feet or 40-feet holder, with aspects of roughly 30-40 cubic meters and a load of 4000-6000 kilograms.
Waterjet spare parts: To ensure the protected conveyance of our waterjet spare parts, we use a blend of delicate bundling materials inside and container bundling outside. This guarantees that the parts are all around safeguarded during travel. Also, we can oblige explicit bundling necessities according to client inclinations.
Conveyance time for machines: Our conveyance time for waterjet machines normally goes from 15 to 30 days. We endeavor to quickly convey our items to address our clients' issues.
waterjet spare parts : 1-7days
