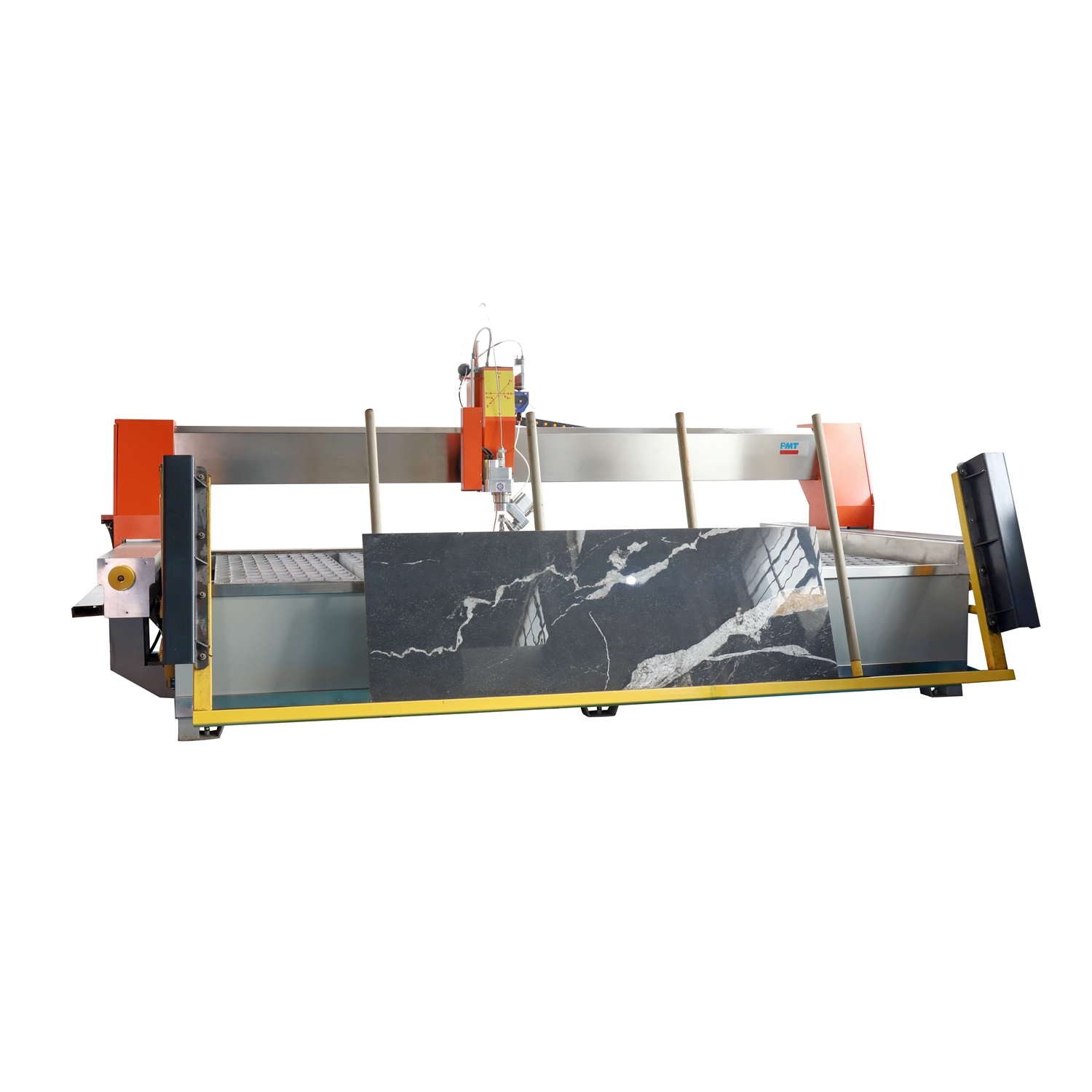

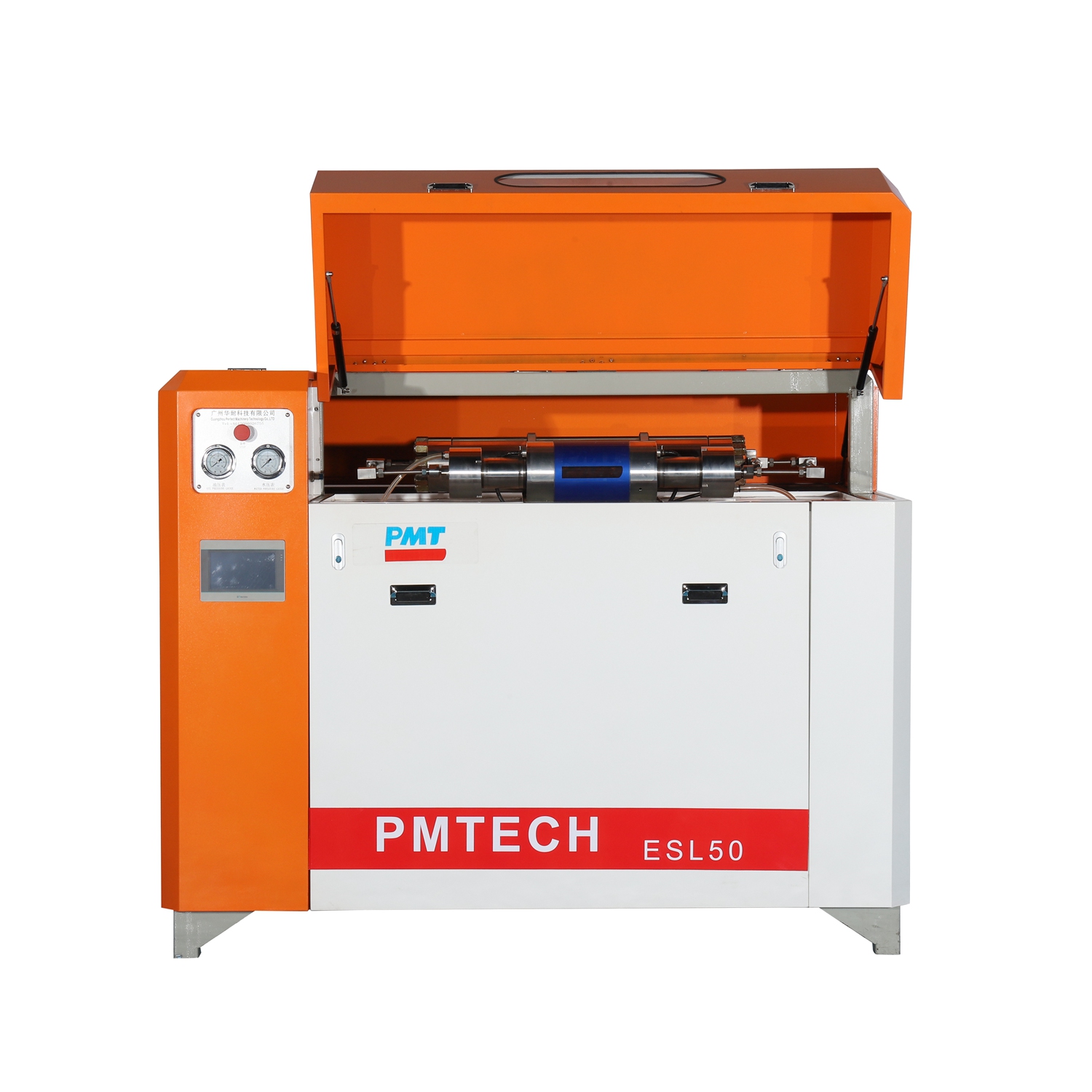

PMT AC five-axis waterjet cutting machine, where innovation in design, exceptional performance, and versatile applications converge. Leveraging cutting-edge technology, we provide high-precision, high-efficiency cutting solutions.
PMT waterjet cutting machine Advantage
Five-Axis Cutting: Multi-axis linkage design enables cutting complex workpieces from various angles.
High Precision: Utilizing advanced control systems and precision components to ensure reliable and precise cutting every time.
Multi-Material Compatibility: Unrestricted by material, suitable for cutting a wide range of materials including metal, glass, and ceramics.
Environmentally Friendly: Waterjet cutting is pollution-free and non-toxic, meeting today's environmental standards.
Intelligent Operation: Simple user interface and intelligent cutting parameter settings make operation intuitive and straightforward.
About size, we have 4000*2000 mm , 3000*2000mm , 2000*1500mm , 2500*1500mm , 6000*2000mm ect, which you want?

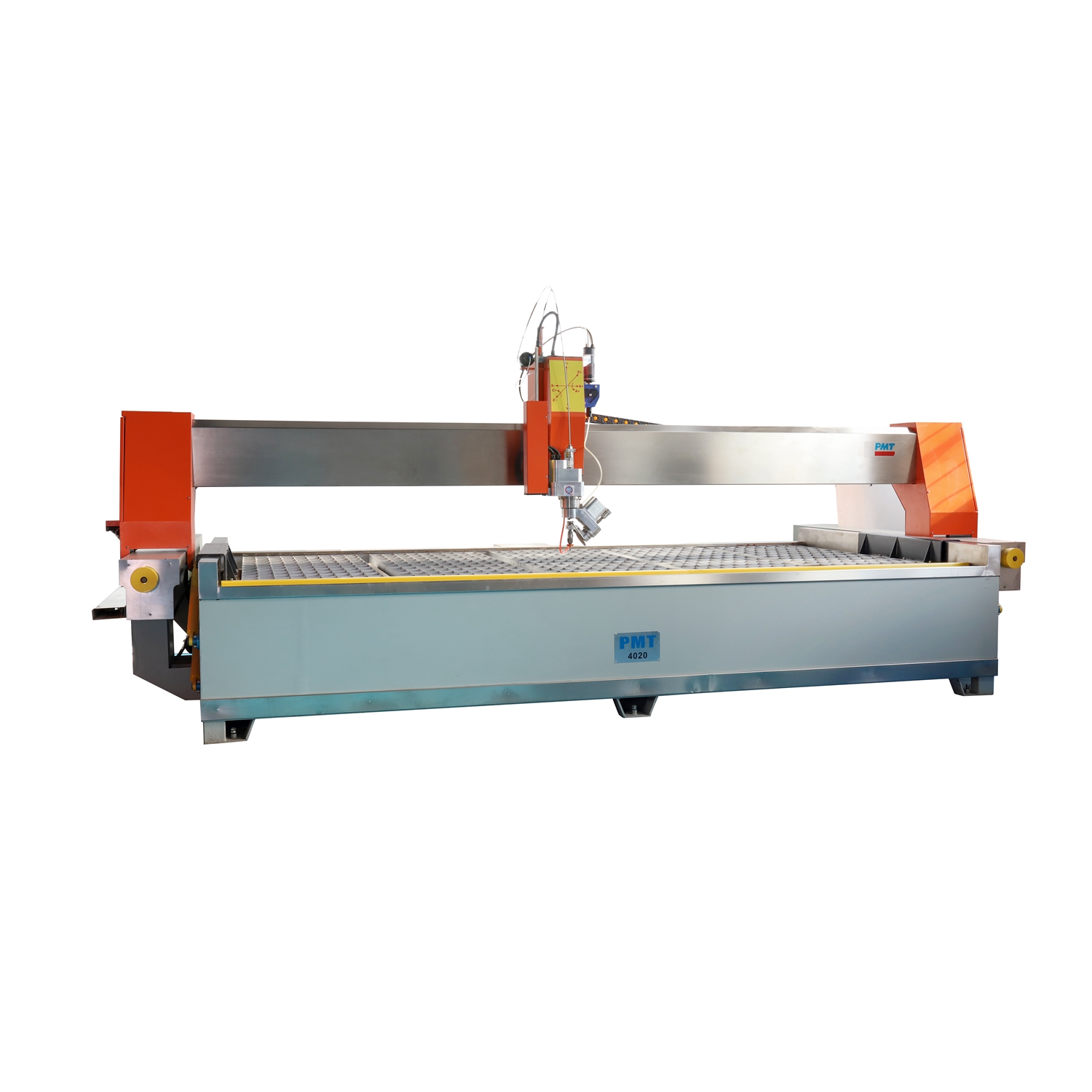

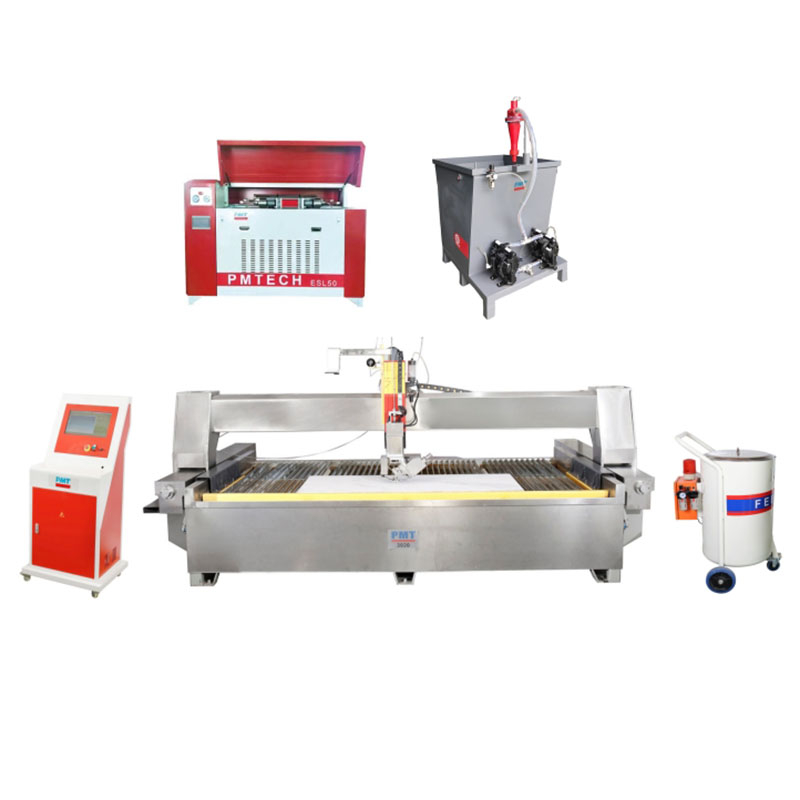

1. Working Table & Controllor
The cutting table is a computer-controlled 2D table, featuring the Y-axis, catcher, X-axis, Z-axis (cutting head holder), cutting head, high-pressure hose, and the abrasive box. Both the X-axis and Y-axis are equipped with linear guides and ball screws for precise motion control.
Model | 2015 | 2515 | 3020 | 4020 | 6020 |
Dimension(mm) | 2650*2150mm | 3100*2150mm | 4500*2300mm | 5250*2300mm | 7300*3100mm |
Max. cutting range | 2000*1500mm | 2500*1500mm | 3000*2000mm | 4000*2000mm | 6000*2000mm |
Travel of Z axis | 180mm | ||||
Servo system | Weihong,OEM Panasonic | ||||
ball-screw linear-rail | ABBA/TBI,Taiwan Brand | ||||
Re-positioning accuracy | ±0.025mm/m | ||||
Cutting accuracy | ±0.1mm | ||||
Max. running speed | 15m/min | ||||
lubrication | Oil Immersion | ||||
Material | 203stainless steel material tank,cast steel beam,rubber and stainless steel cover | ||||
2. Feature

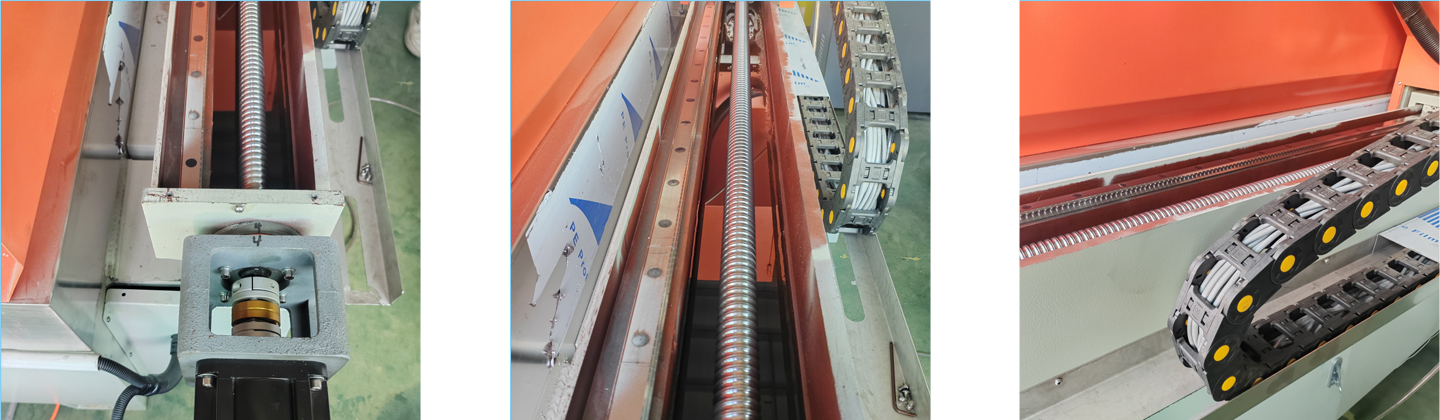

The guide rails and ball screws of our waterjet cutting tables are fully immersed in an oil tank, ensuring optimal lubrication and preventing wear caused by abrasive materials and water splashes. This unique feature not only guarantees exceptional cutting precision but also significantly prolongs the machine's lifespan. It effectively addresses the issue of accuracy deterioration commonly observed in conventional water jet cutting machines. Furthermore, our cutting technology ensures consistent accuracy regardless of the time of day.
1.Enhanced Stability: Our waterjet cutting tables employ an oil-immersed transmission mechanism that offers superior stability compared to traditional transmissions. This advanced system enables precise control over cutting speed, pressure, and direction, ensuring optimal performance.
2.Reduced Noise: The oil-immersed transmission mechanism utilizes high-quality finished oil for lubrication. Unlike the grease or liquid lubricants used in conventional mechanisms, finished oil provides superior lubrication effectiveness while generating minimal noise. This results in a quieter operation during the cutting process.
3.Convenient Maintenance: Our waterjet cutting tables equipped with an oil-immersed transmission mechanism require simplified maintenance compared to traditional systems. The long-lasting lubrication effect of the finished oil significantly reduces the frequency of oil replacement, resulting in lowered maintenance costs.
4.Extended Service Life: The oil-immersed transmission mechanism offers a considerably longer service life when compared to conventional mechanisms. Unlike traditional systems that often suffer from wear and tear due to poor lubrication, the oil-immersed transmission mechanism prevents such issues. It eliminates the risk of component failure, particularly in critical parts like bearings, ensuring optimal performance and longevity.

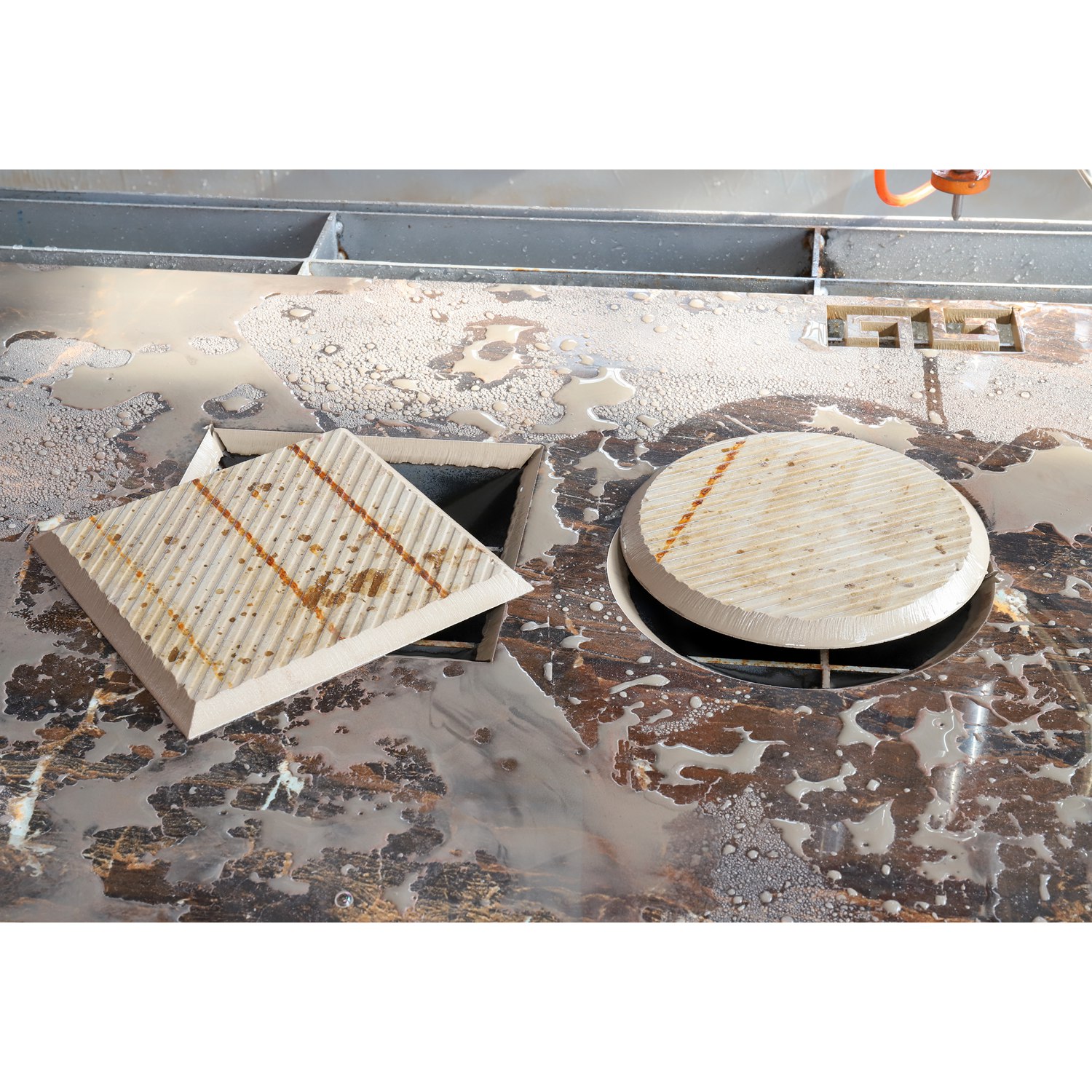

3.Cutting sample
The cutting speed of our mini waterjet cutting machine can vary based on factors such as the material type, thickness, desired cut quality, water pressure, and the specific configuration of the machine. While it's important to note that these speeds are provided as a reference for PMT waterjet machines, actual cutting speeds may differ.
Please keep in mind that optimal cutting speed should be determined based on your specific requirements and the characteristics of the material being cut.
4.PMT AC five-axis waterjet cutting machine finds extensive applications in:
Automotive component manufacturing
Aerospace industry
Metallurgical processing
Architectural decoration
Electronics manufacturing
Engineering plastic cutting
