Advantage:Double the Precision, Triple the Efficiency
To stay updated with the latest market trends, we are actively involved in providing CNC Water Jet Cutting Machines. These machines are widely utilized for cutting both soft and hard materials, and have gained significant popularity in the market due to their high performance.
To ensure top-notch quality, each waterjet cutting machine undergoes thorough testing on multiple parameters before being delivered to customers. Furthermore, these machines are available in various specifications at affordable prices.
Our extensive experience in the water jet industry has enabled us to incorporate essential details that will ultimately save you time and money. All our machines are designed and sold with these advantageous features.

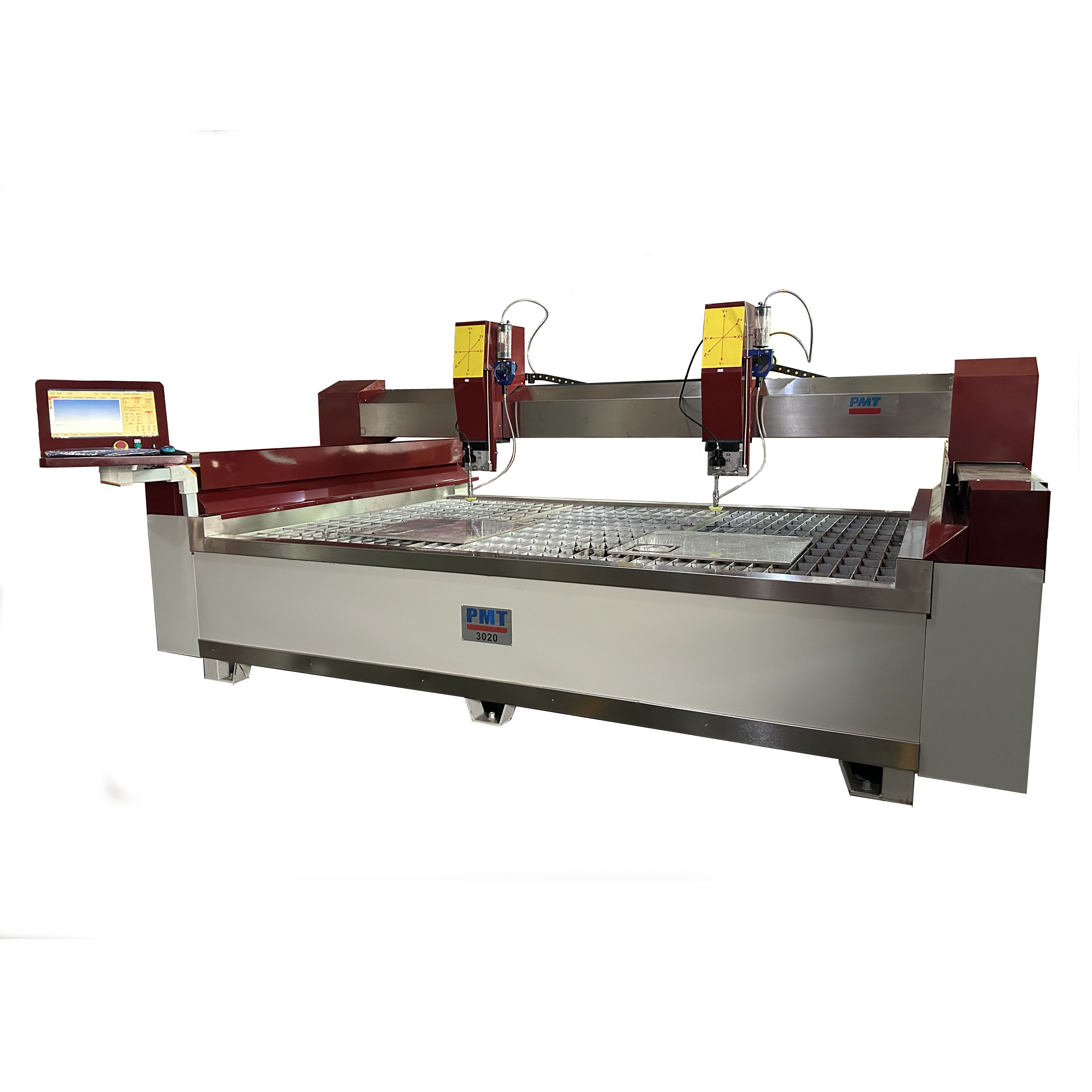

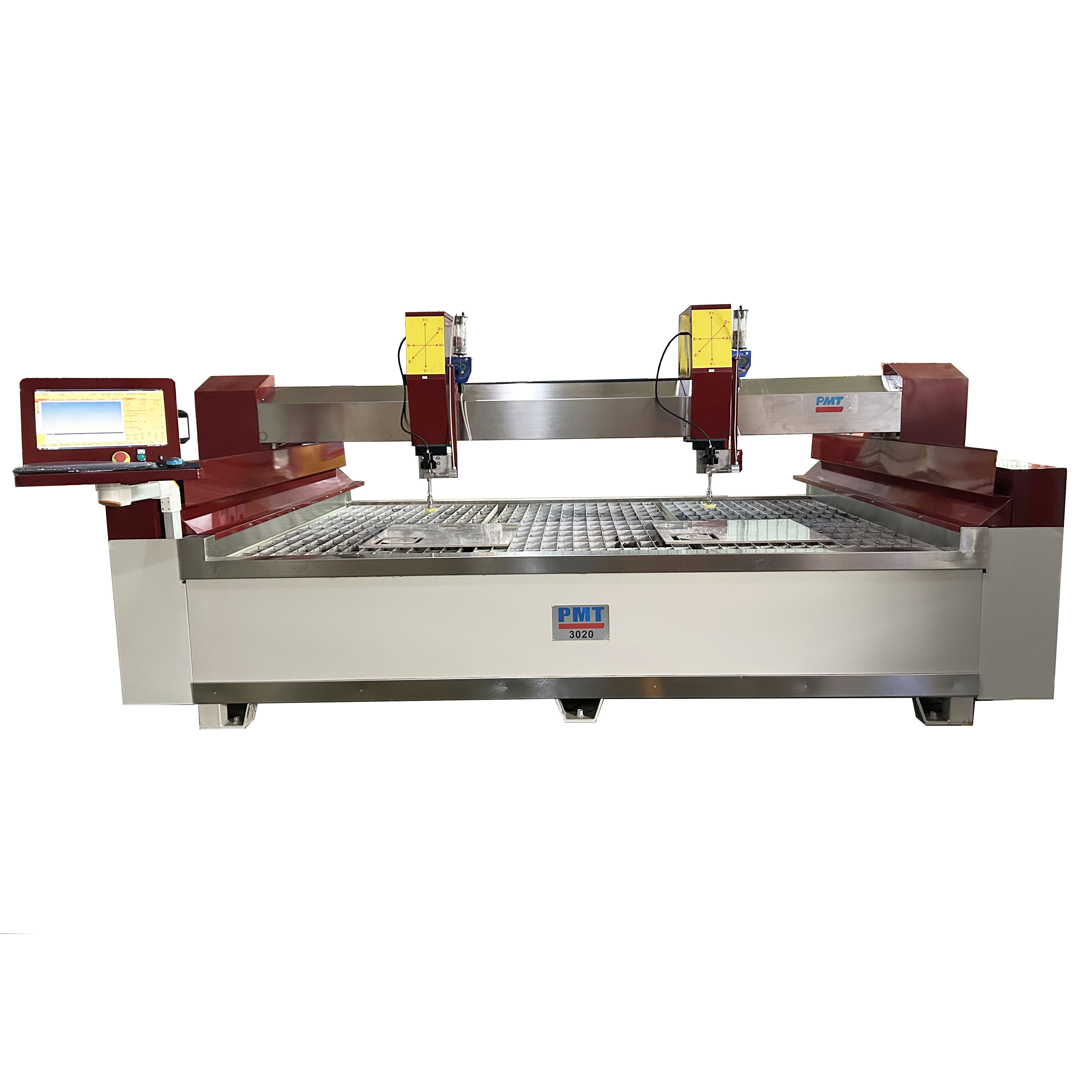

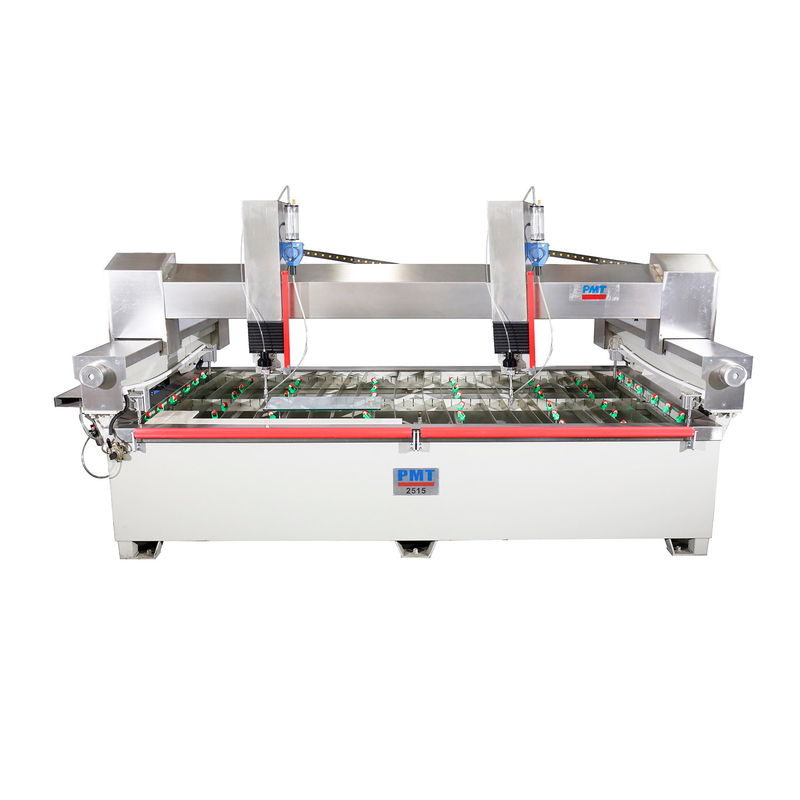

PMT Cutting head Waterjet Cutting Machine

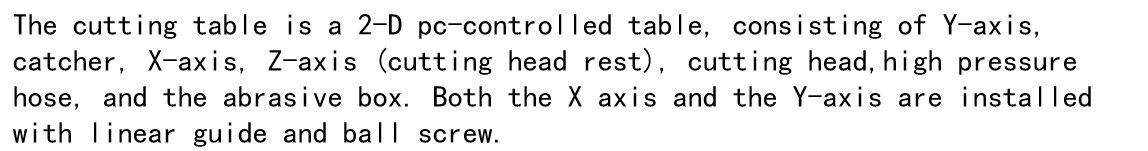

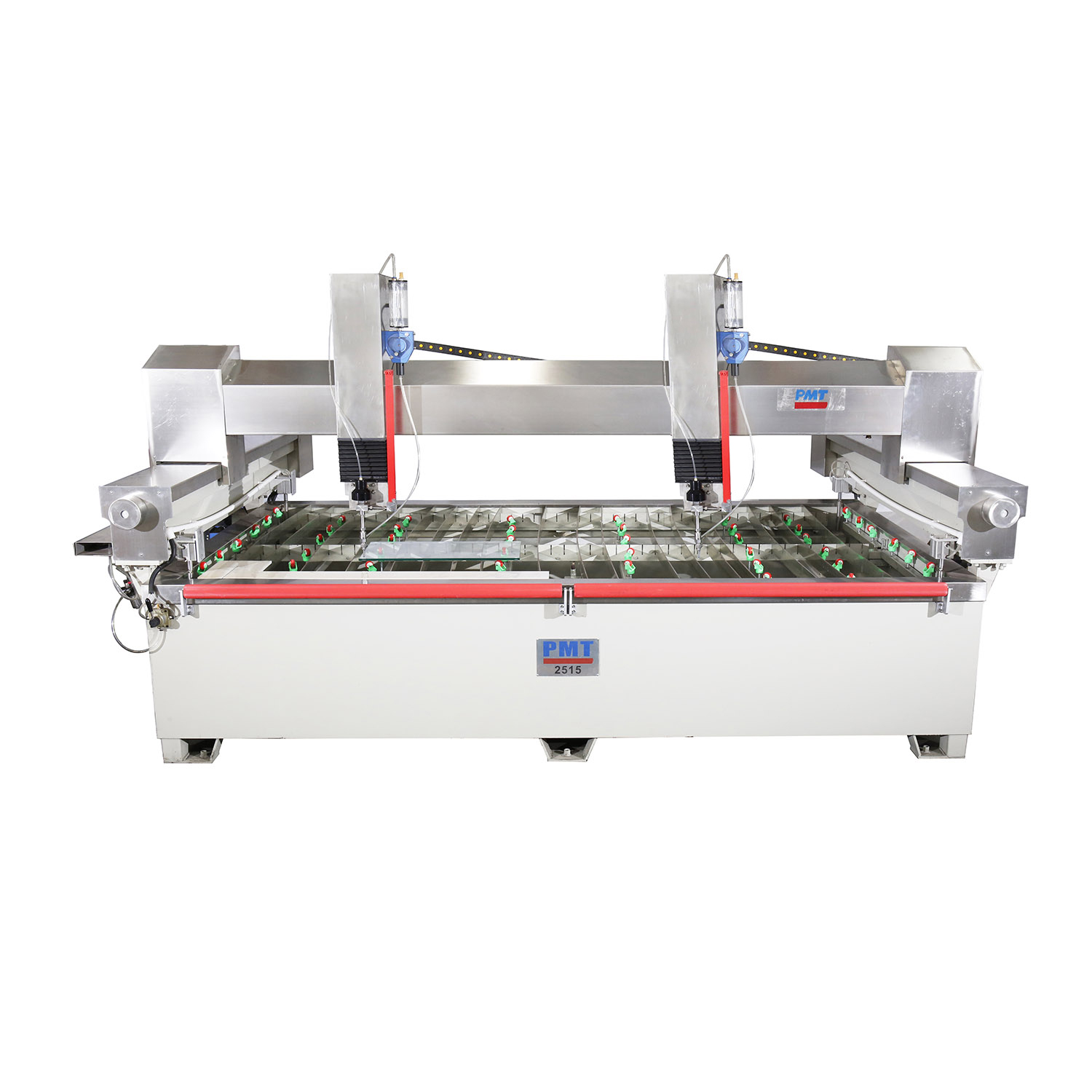

1. Working Table & Controllor
Model | 2015 | 2515 | 3020 | 4020 | 6020 |
Dimension(mm) | 2650*2150mm | 3100*2150mm | 4500*2300mm | 5250*2300mm | 7300*3100mm |
Max. cutting range | 2000*1500mm | 2500*1500mm | 3000*2000mm | 4000*2000mm | 6000*2000mm |
Travel of Z axis | 180mm | ||||
Servo system | Weihong,OEM Panasonic | ||||
ball-screw linear-rail | ABBA/TBI,Taiwan Brand | ||||
Re-positioning accuracy | ±0.025mm/m | ||||
Cutting accuracy | ±0.1mm | ||||
Max. running speed | 15m/min | ||||
lubrication | Oil Immersion | ||||
Material | 203stainless steel material tank,cast steel beam,rubber and stainless steel cover | ||||
2. Feature
1. Robust and reliable bed design .
In our Gantry series, the machine bed and load-bearing platform are designed with a split structure, ensuring both aesthetics and rational structural design. This configuration provides a more stable operating environment. The main components are selected from renowned brands, guaranteeing reliable performance.
2. Leading industry in meticulous details .
Our machines incorporate centralized automatic lubrication design for enhanced equipment maintenance automation. We prioritize user-friendliness in our designs. The machines are equipped with durable drag chains, offering flexible motion, along with high-quality sensors. They also feature reliable soft limits, ensuring safety.
3.Carefully crafted innovative solutions .
To protect the machine's lifespan, we employ a labyrinth-style waterproof and sand-proof design for the machine guides. For machines with a stroke length of 3 meters or more, we utilize a ball screw transmission system to ensure more dependable long-distance operation.
Our machines are equipped with international high-quality ball screws and rails, guaranteeing high precision in part processing, balanced transmission, and exceptional durability.
3.Cutting sample
4. Key Features
Dual-Head Cutting: Double cutting heads for increased productivity and parallel cutting of multiple parts.
Three-Axis Precision: Three-axis control ensures accurate and multi-dimensional cutting capabilities.
Versatile Applications: Capable of cutting a wide range of materials including metals, composites, glass, and stone.
Efficiency and Speed: Dual-head operation boosts cutting speed and overall efficiency, reducing production time.
Intuitive Control: User-friendly interface and precise control for easy and efficient operation.
5.The twin-head three-axis waterjet cutting machine is ideal for various industries, including:
Automotive and aerospace manufacturing
Architectural and interior design
Industrial fabrication
Composite material cutting
Stone and tile processing
Electronic component manufacturing
