Streamline™ systems use the latest technology and a very smart design for ease of use, reliability and convenience. The result is a system that delivers highest efficiency and profit.
Advances in Convenience
• Complete Redundancy – Because a single intensifier produces all of the needed pressure, adding an optional redundant system for continuous production of 60,000 psi is a simple operation.
• More Ergonomic Design – From the see-through top cover, which opens on both sides, to the high pressure intensifier, which can be disassembled in parts or one side at a time, extreme convenience was a high priority during design.
• Better Software Features – High-tech software and built-in sensors provide protection and immediate access to information. More control and information is available faster. • Long-term Competitiveness – The SL-V pumps were designed with the latest technology to provide a competitive edge that will last long into the future. Smart Design Advances
• Longer Run-times – Significant advances were achieved by eliminating some seals and changing materials.
• Faster Cutting – Rather than just increase the pressure, we changed and strengthened the machine design to produce 60,000 psi for faster cutting and cleaner edges.
Parameters for pump
| Product Model | 50HP(37KW) | 100HP(75KW) |
| Max pressure | 60000psi(4137bar) | 60000psi(4137bar) |
| Max Flow | 3.79|pm | 7.57|pm |
| Orifice Dia | 0.355mm | 0.508mm |
| Control voltage and current | 24V DC,10Amps DC | 24V DC,10Amps DC |
| Environmental Temperature | 5~40C | 5~40C |
| Hydraulic oil tank capacity | 106L | 182L |
| Cooling water volume | 11.4|pm | 17.0|pm |
| Accumulator capacity | 0.96L | 1.92L |
| Length*Width*Height | 1700*914*1453(mm) | 2000*914*1453(mm) |
| Weight | 1315kg | 1905kg |

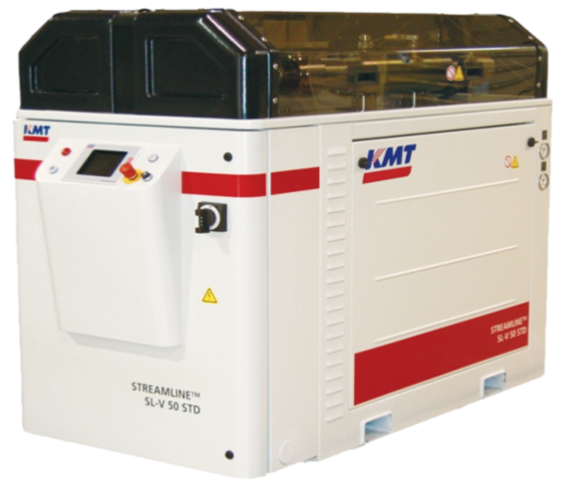

KMT Original pump
Delivery Time : 6Months
Power:37KW/50HP
Pressure:60KSI/4130Bar
Flow Rate:4.2L/min
