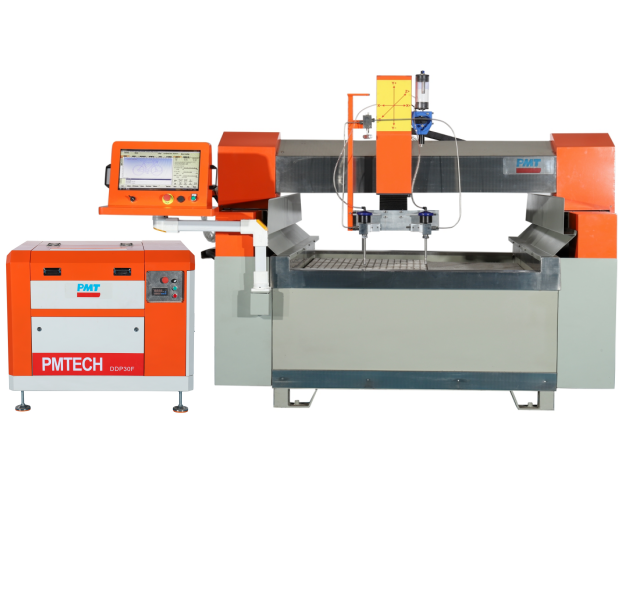

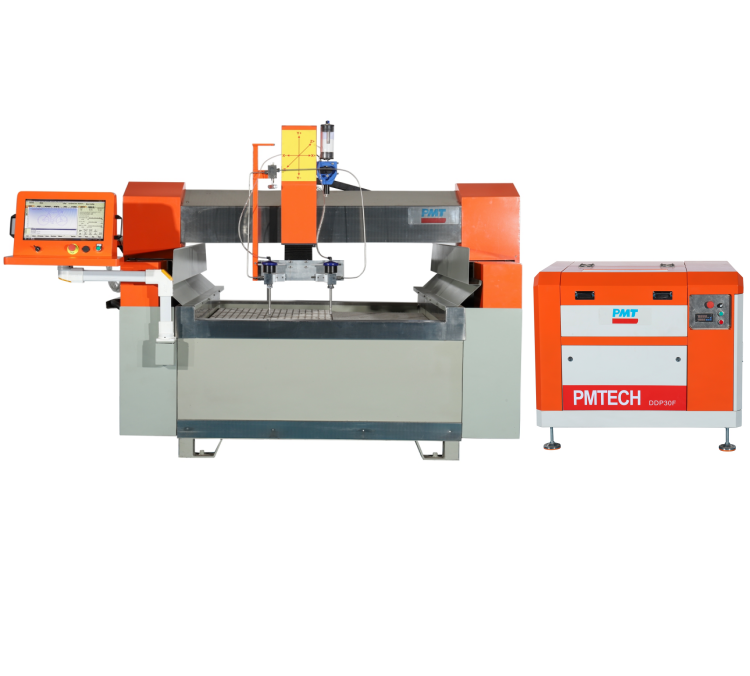

The 3 axis CNC Water Jet cutting machine is highly versatile and can efficiently cut carbon steel sheet metal ranging from 0 to 150mm in thickness. Its remarkable feature lies in its ability to generate no heat during the cutting process, ensuring clean slits without arc marks or thermal effects. This eliminates the need for additional machining and allows for easy rework if needed.
This machine stands out with its capability to cut and punch any curve without the requirement for molds. It offers flexibility and convenience across various applications. The resulting slits are impressively narrow, measuring only 1-1.5mm, while delivering a smooth and seamless cut surface with a surface roughness range of 3.2μm to 1.6μm.
Additionally, the workpiece can be securely held without the need for special clamping, simplifying the operation and enhancing overall convenience.
Advantage:

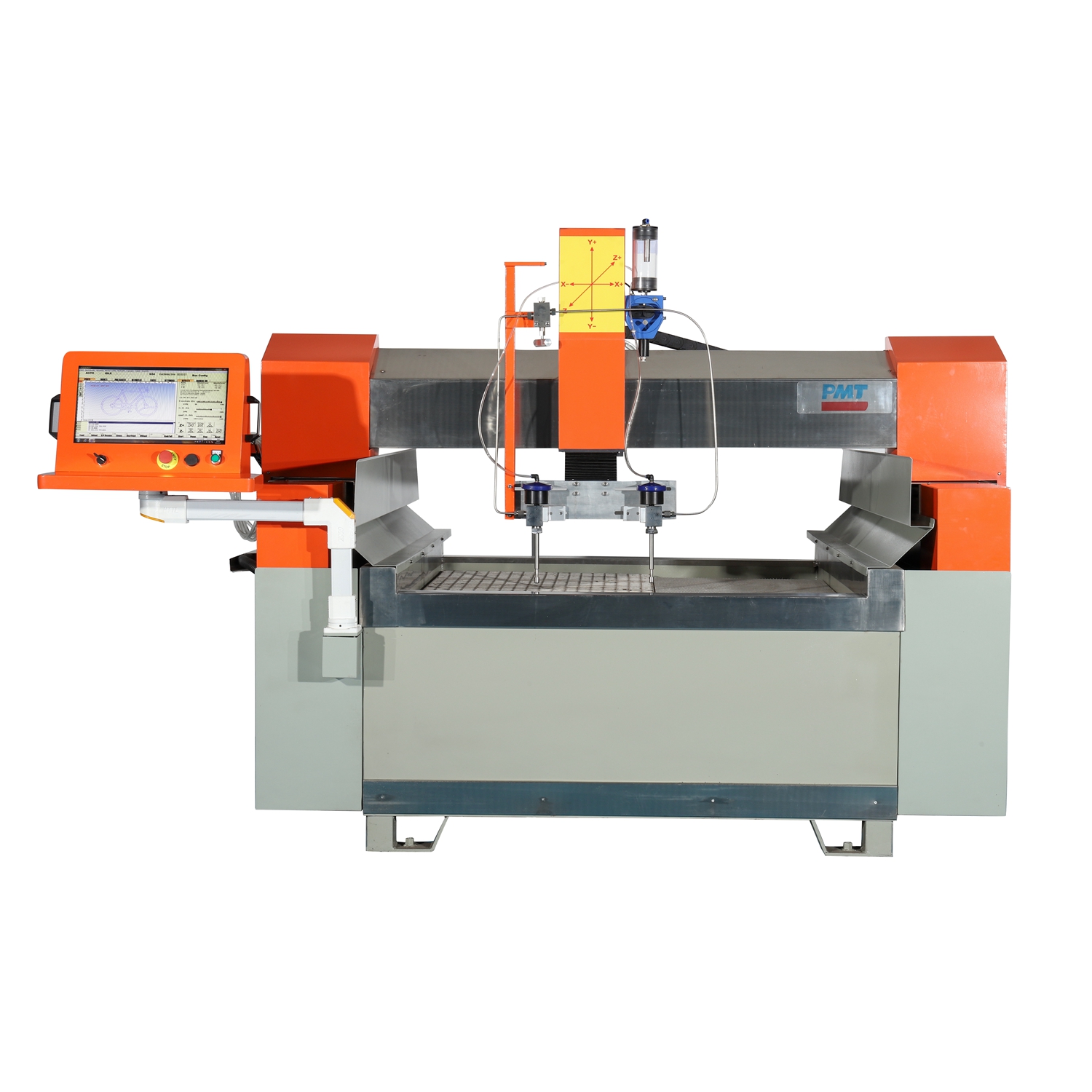

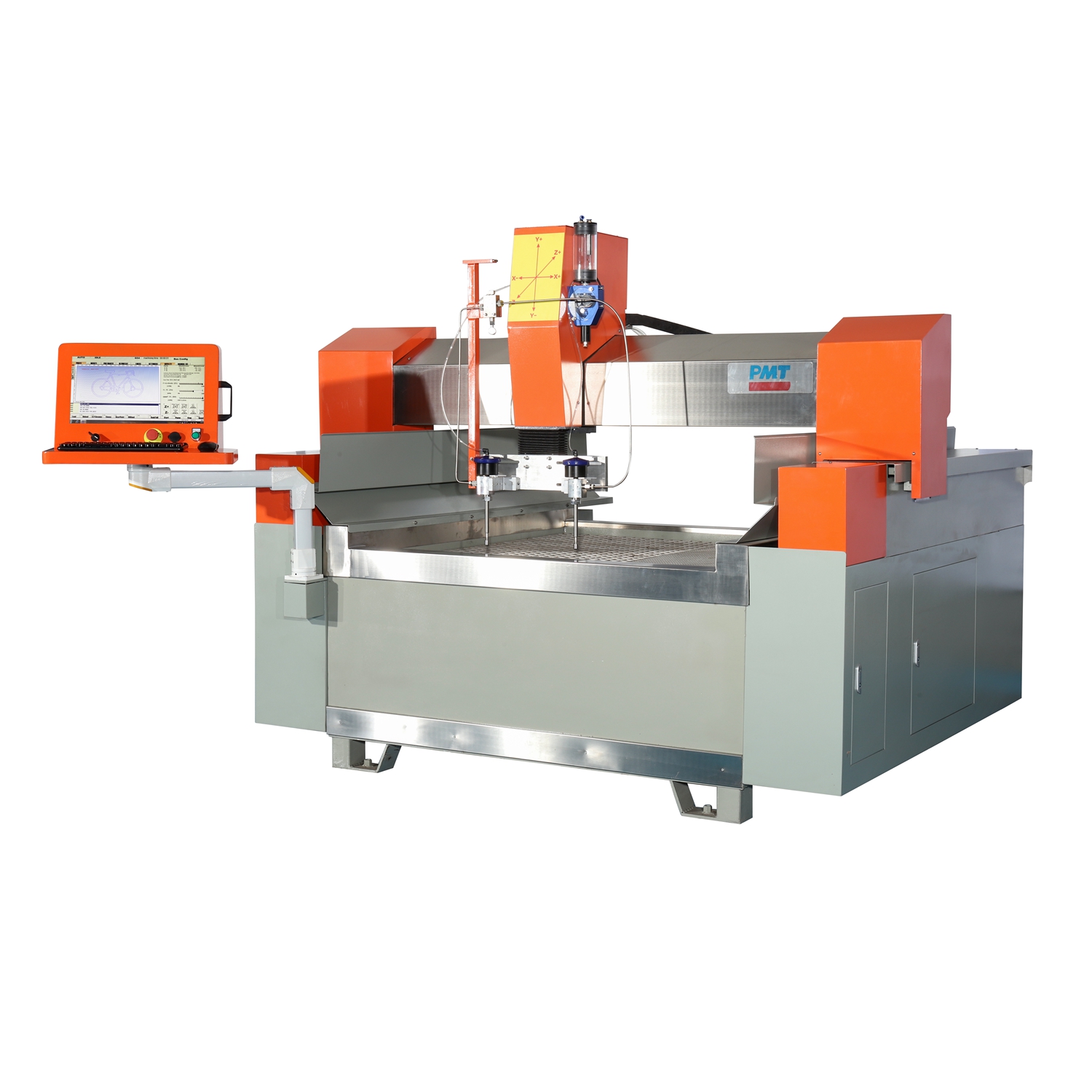

This type of water jet is an ideal combination of size, speed, and accuracy. Adopting double bridge frames

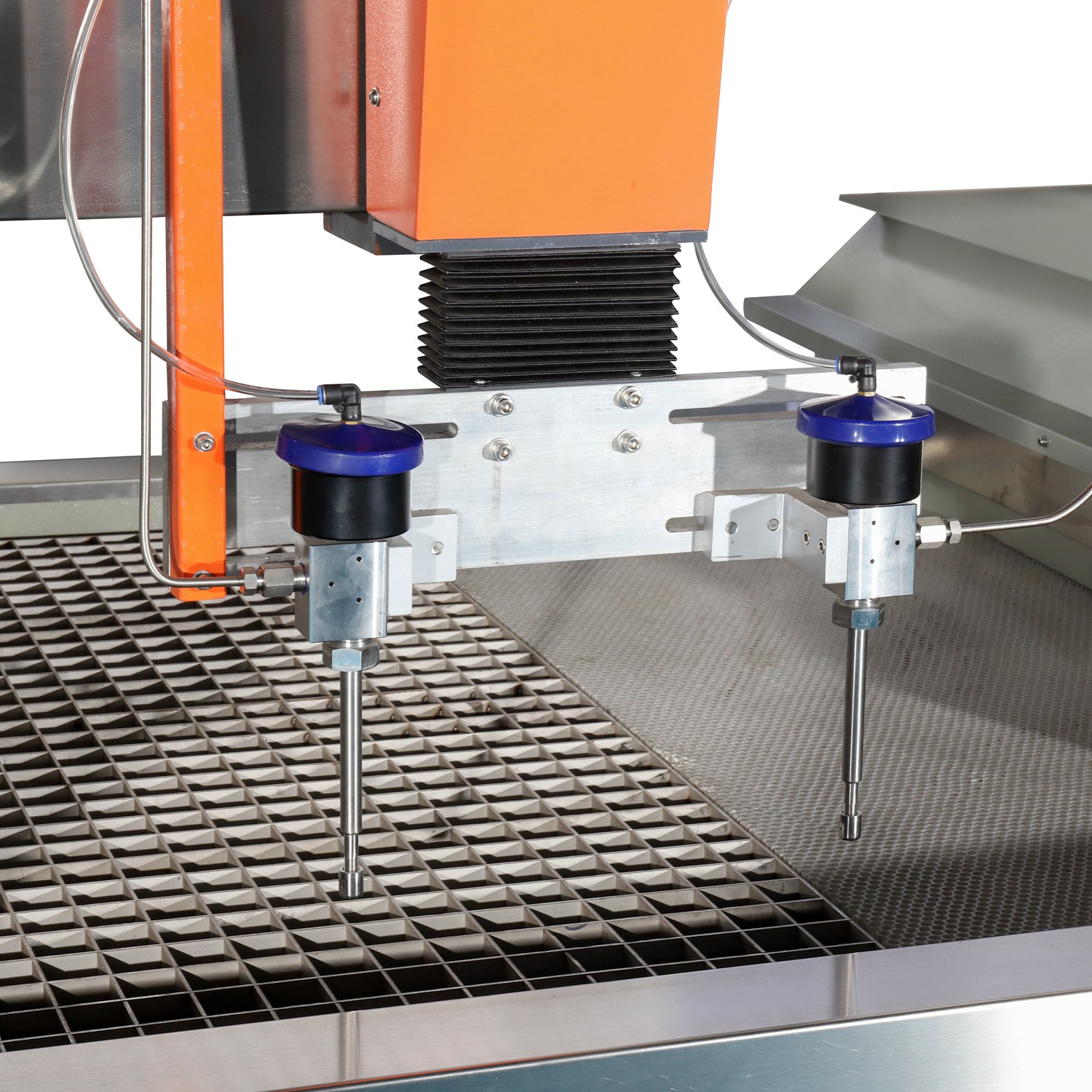

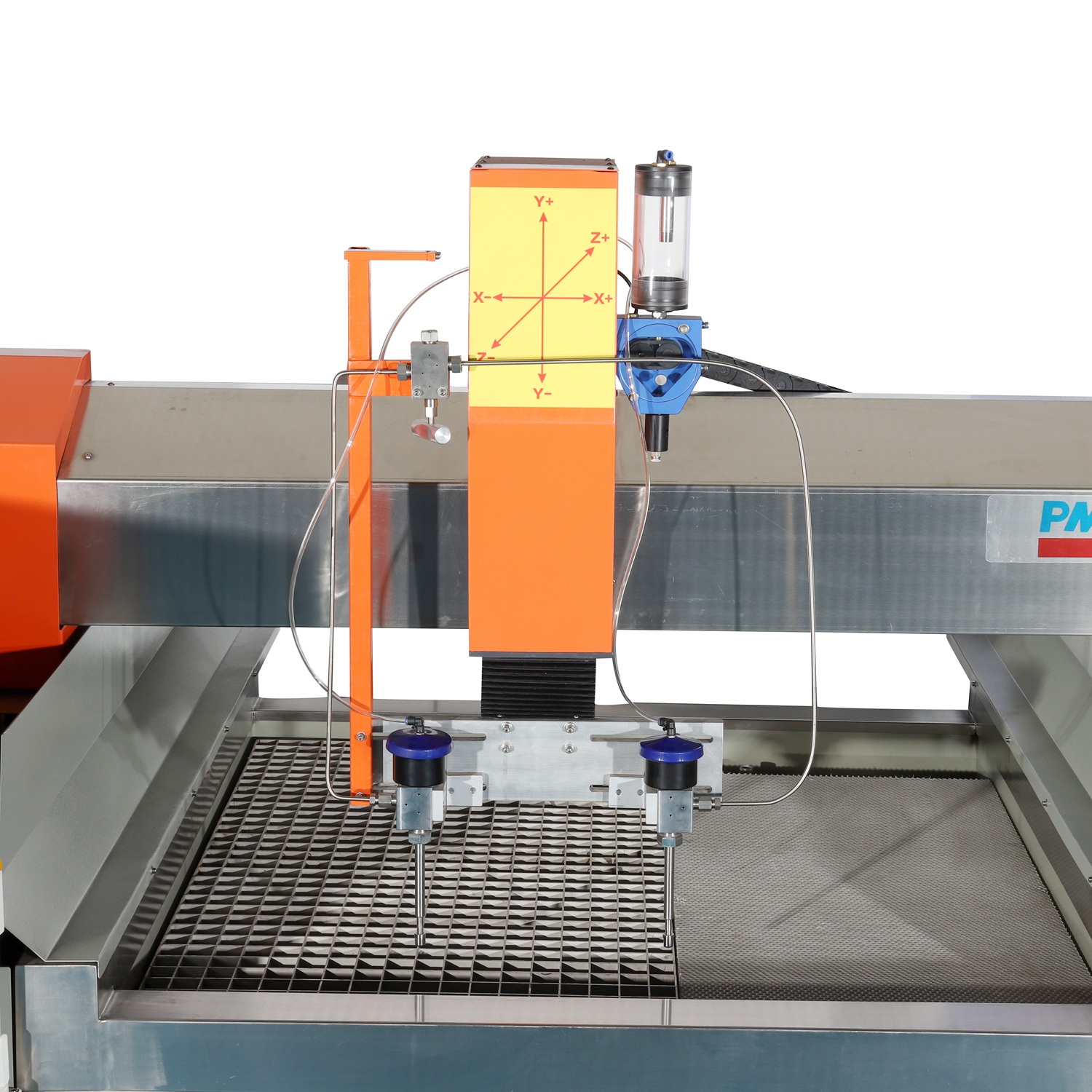

The design greatly improves work efficiency. The PMT 3 Axis machine has a significant positive impact on your profits, with two doubles cutting head and its fast cutting speed, reduced part processing time, and improved work efficiency.
1. Working Table & Controllor
Model | 2015 | 2515 | 3020 | 4020 | 6020 |
Dimension(mm) | 2650*2150mm | 3100*2150mm | 4500*2300mm | 5250*2300mm | 7300*3100mm |
Max. cutting range | 2000*1500mm | 2500*1500mm | 3000*2000mm | 4000*2000mm | 6000*2000mm |
Travel of Z axis | 180mm | ||||
Servo system | Weihong,OEM Panasonic | ||||
ball-screw linear-rail | ABBA/TBI,Taiwan Brand | ||||
Re-positioning accuracy | ±0.025mm/m | ||||
Cutting accuracy | ±0.1mm | ||||
Max. running speed | 15m/min | ||||

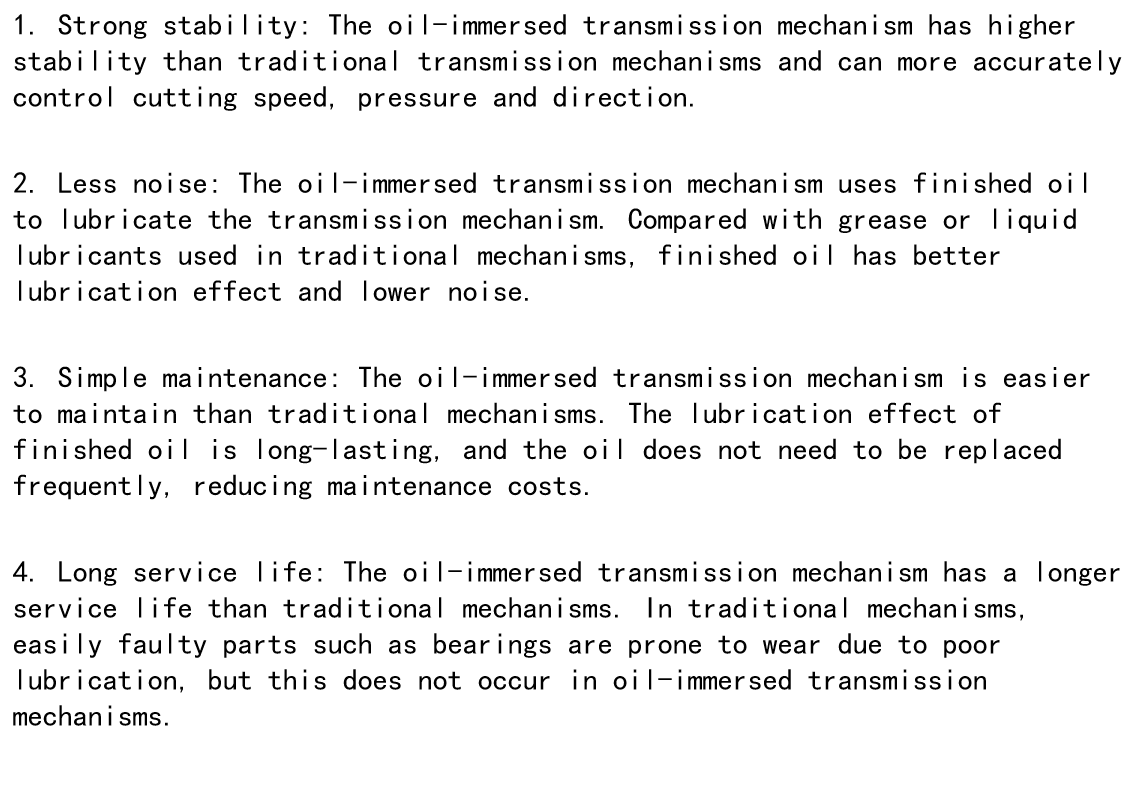

lubrication | Oil Immersion | ||||
Material | 203stainless steel material tank,cast steel beam,rubber and stainless steel cover | ||||
2. Feature
