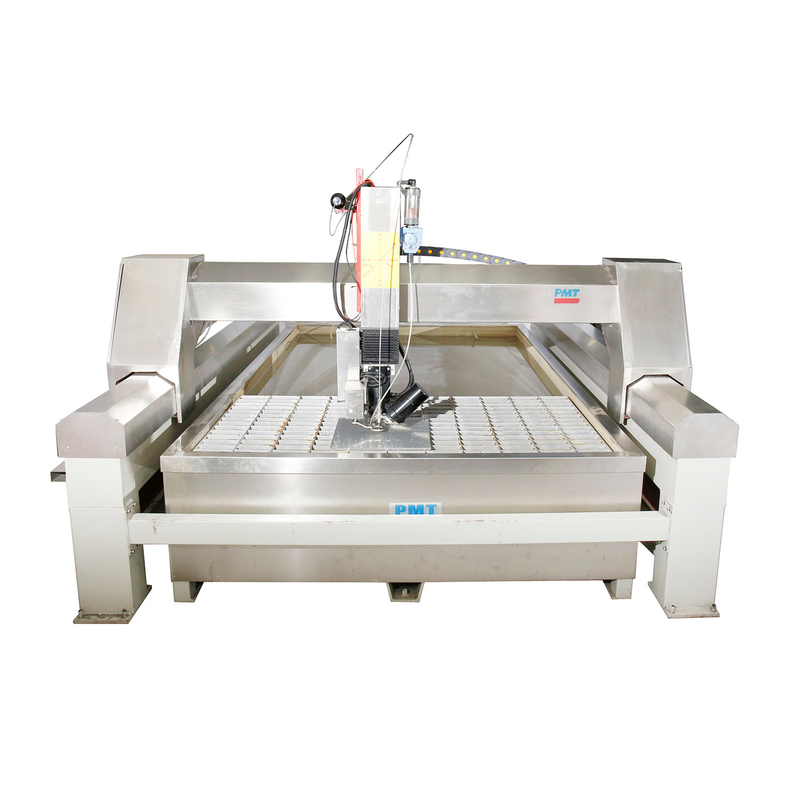

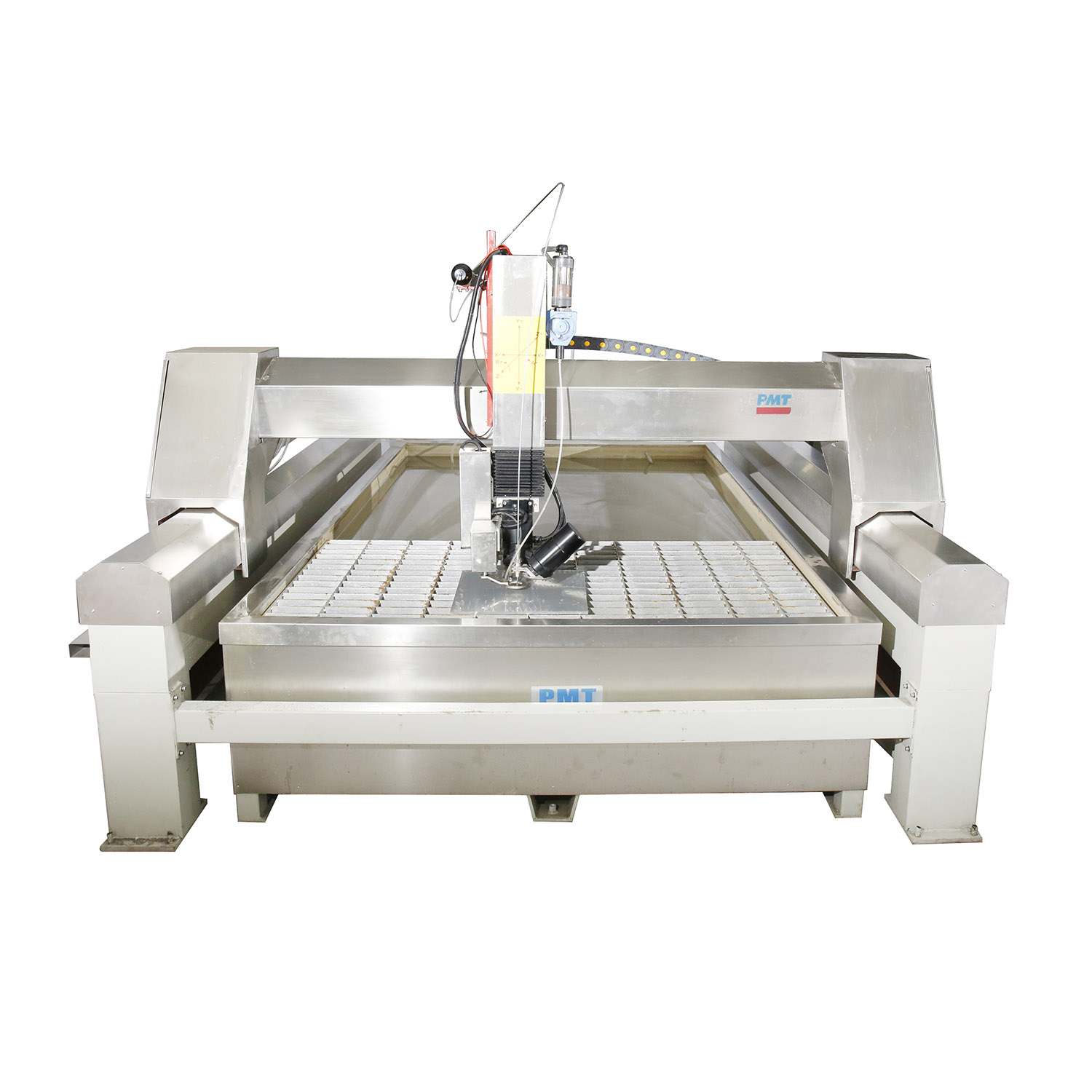

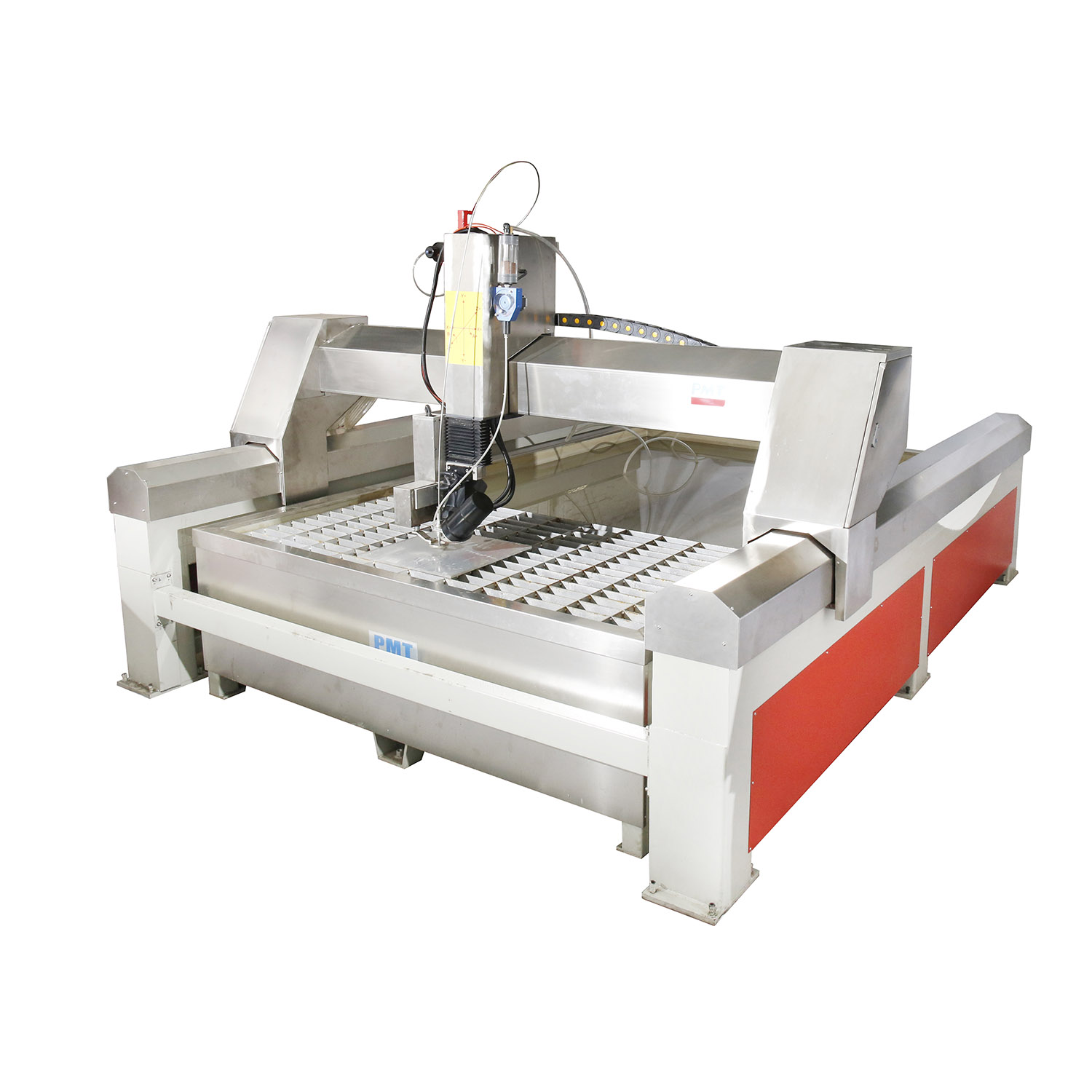

PMT Waterjet cutting machine advantage
1. It can achieve different cutting speeds based on the thickness and hardness of different metals or stones, thereby achieving higher accuracy
2. Cutting at a 45 degree angle can perfectly connect stone or board materials
3. The A-axis can rotate freely from 0 to 360 degrees, while the C-axis can rotate freely from 0 to 70 degrees
4. Integrated steel structure lays a solid foundation for cutting performance
5. Provide strong global after-sales service
Additionally, you have the option to integrate imported 3D software for achieving 3D cutting on various materials.

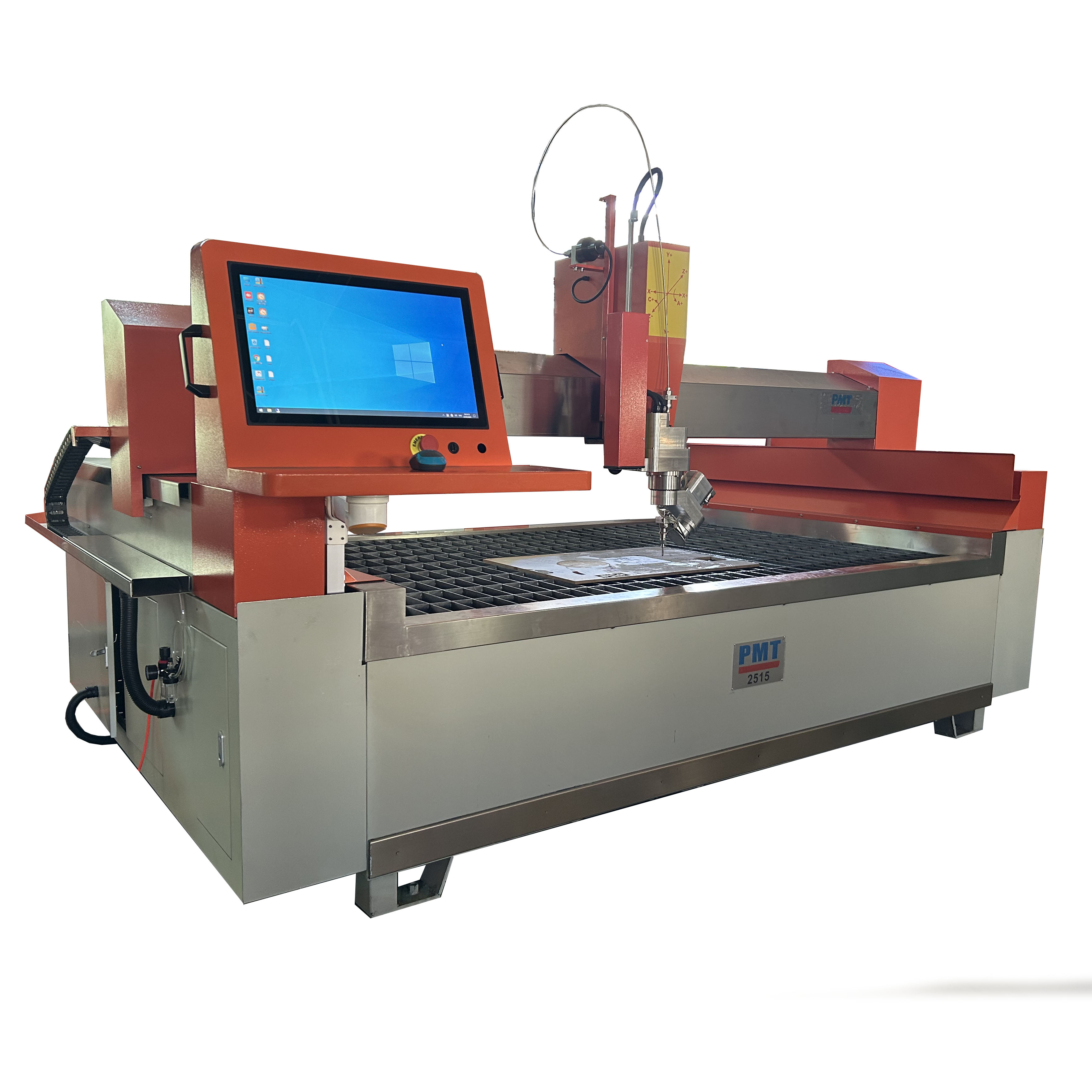

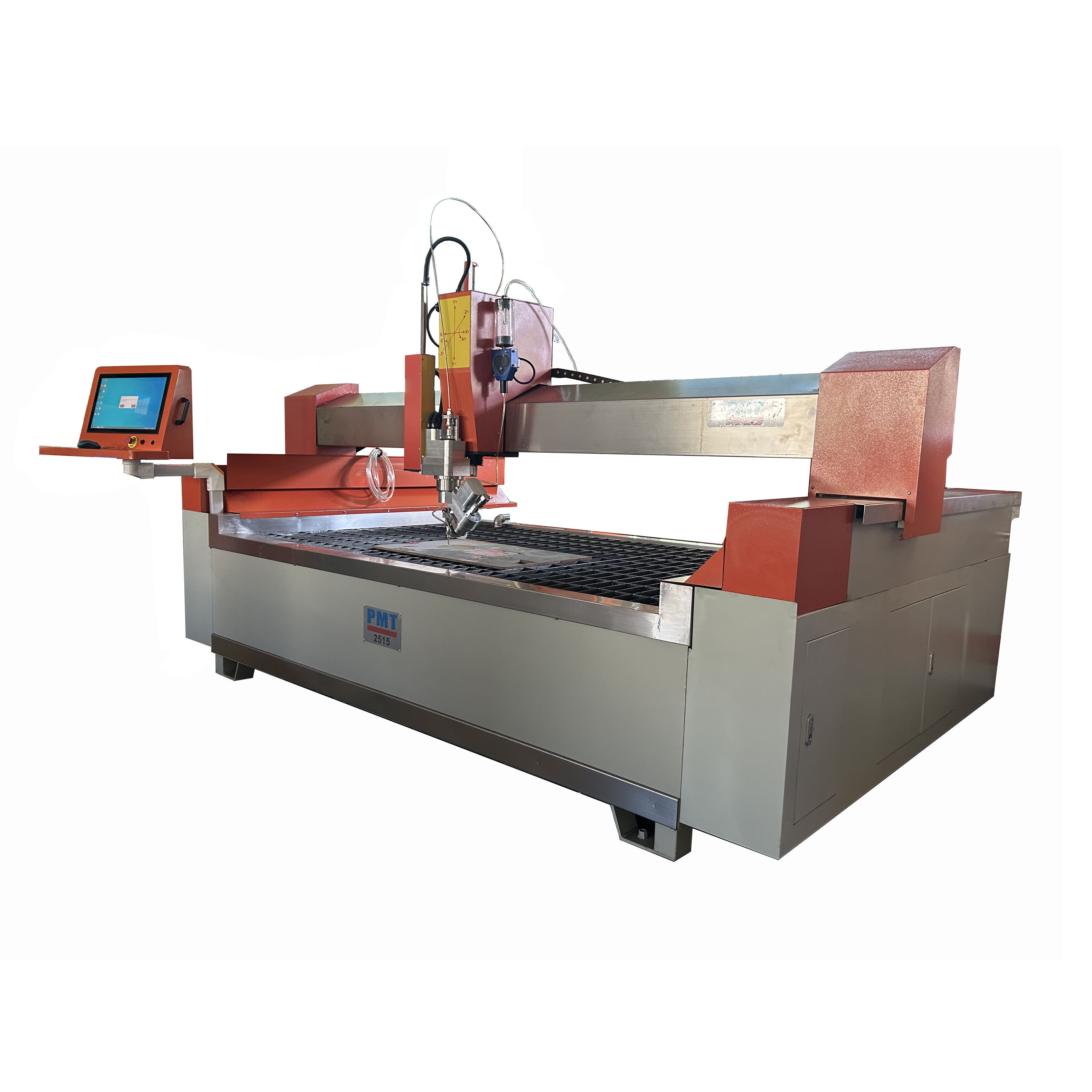

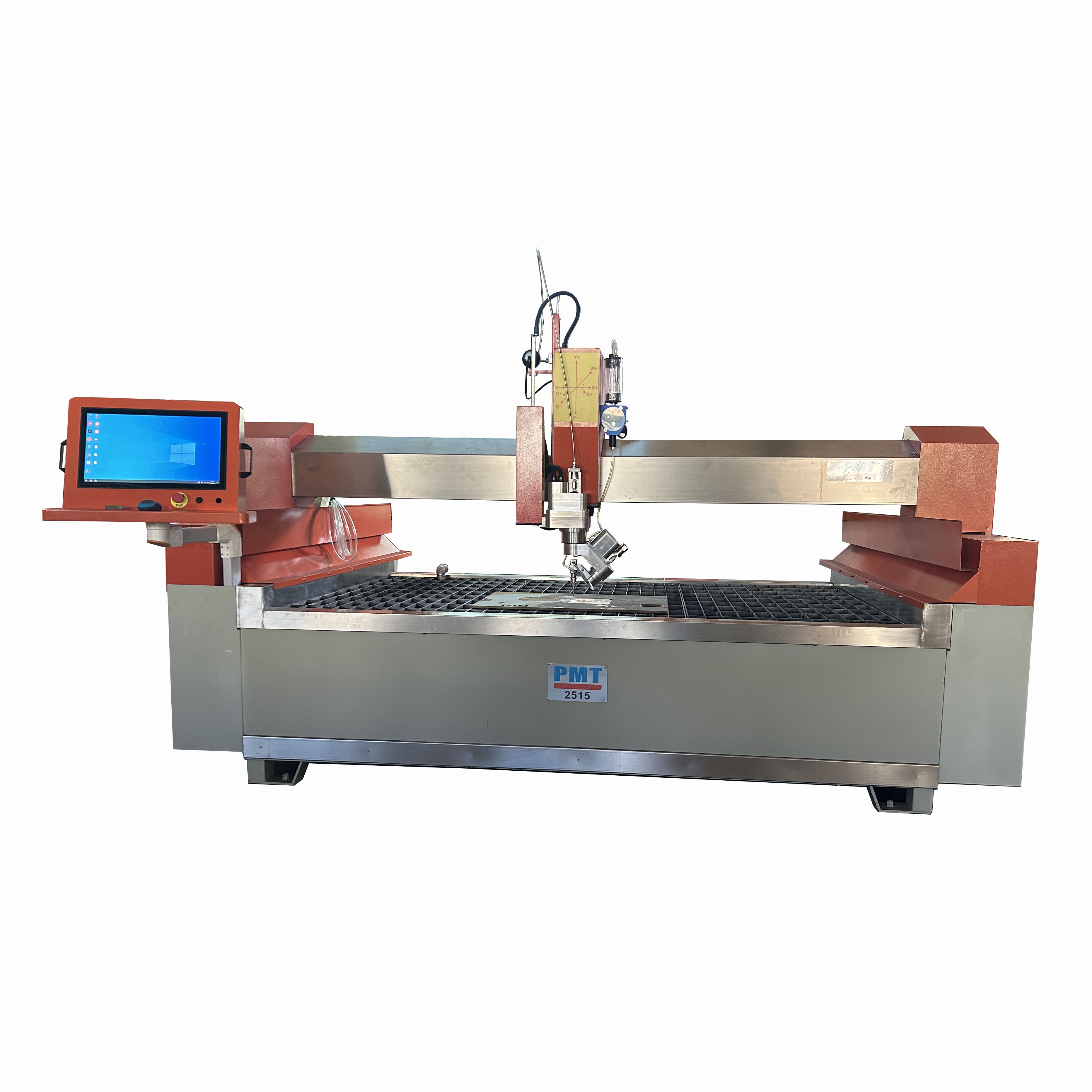

Cutting head Waterjet Cutting Machine

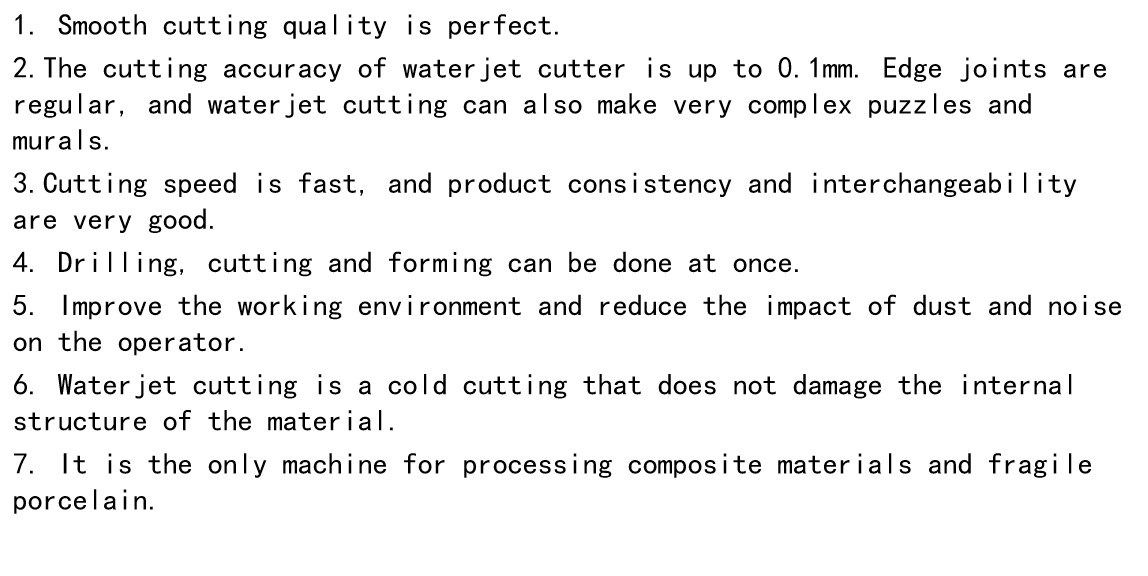

Advantage of PMT waterjet cutting machine
About size, we have 4000*2000 mm , 3000*2000mm , 2000*1500mm , 2500*1500mm , 6000*2000mm ect, which you want?

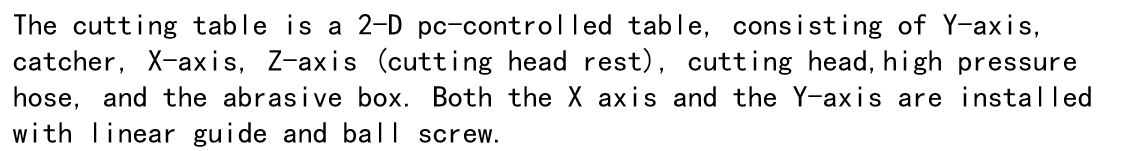

1. Working Table & Controllor
Model | 2015 | 2515 | 3020 | 4020 | 6020 |
Dimension(mm) | 2650*2150mm | 3100*2150mm | 4500*2300mm | 5250*2300mm | 7300*3100mm |
Max. cutting range | 2000*1500mm | 2500*1500mm | 3000*2000mm | 4000*2000mm | 6000*2000mm |
Travel of Z axis | 180mm | ||||
Servo system | Weihong,OEM Panasonic | ||||
ball-screw linear-rail | ABBA/TBI,Taiwan Brand | ||||
Re-positioning accuracy | ±0.025mm/m | ||||
Cutting accuracy | ±0.1mm | ||||
Max. running speed | 15m/min | ||||
lubrication | Oil Immersion | ||||
Material | 203stainless steel material tank,cast steel beam,rubber and stainless steel cover | ||||

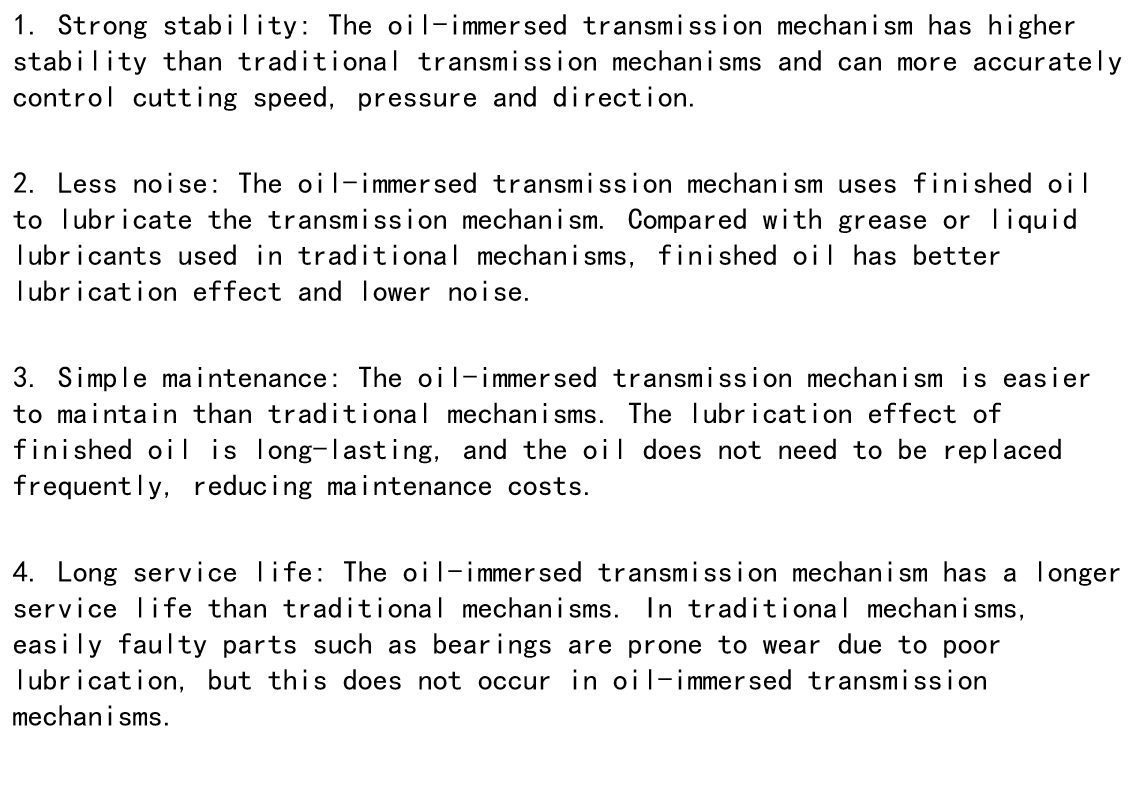

2. Feature

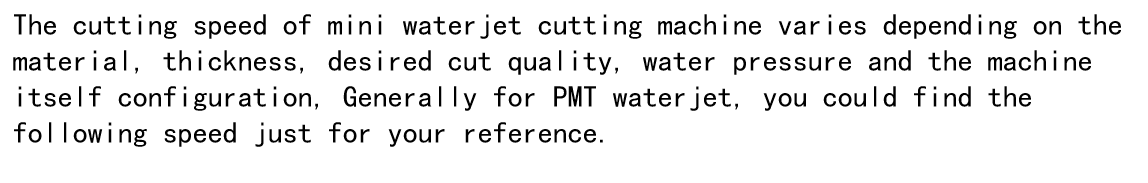

3.Cutting sample
Our factory not only have all kinds of size of water jet machines and waterjet spare parts, but also our company sell all kinds of stone carving machines, laser machines, bridge cutting machines, edge grinding machines, row pitch machines and rope machines and so on !!!
