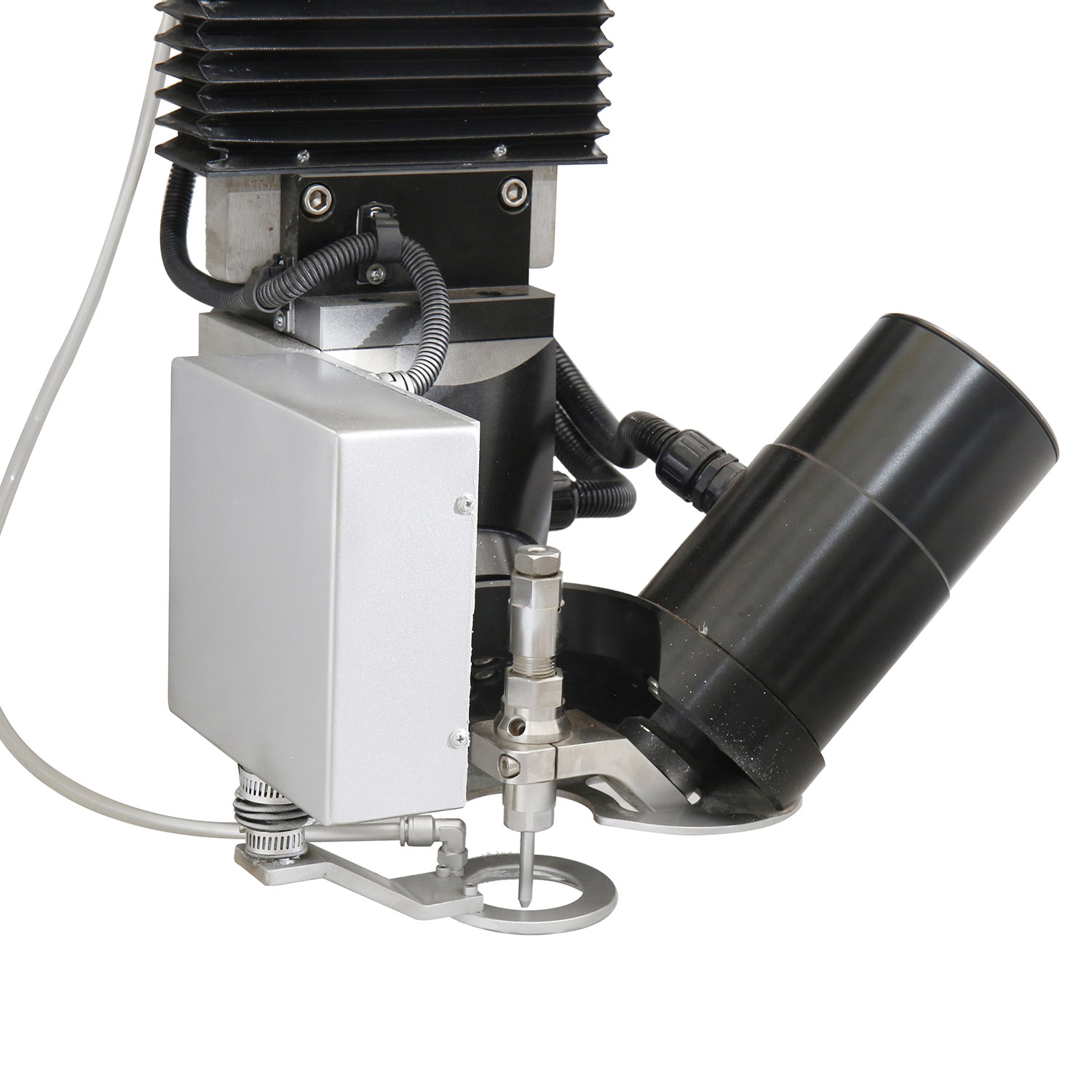

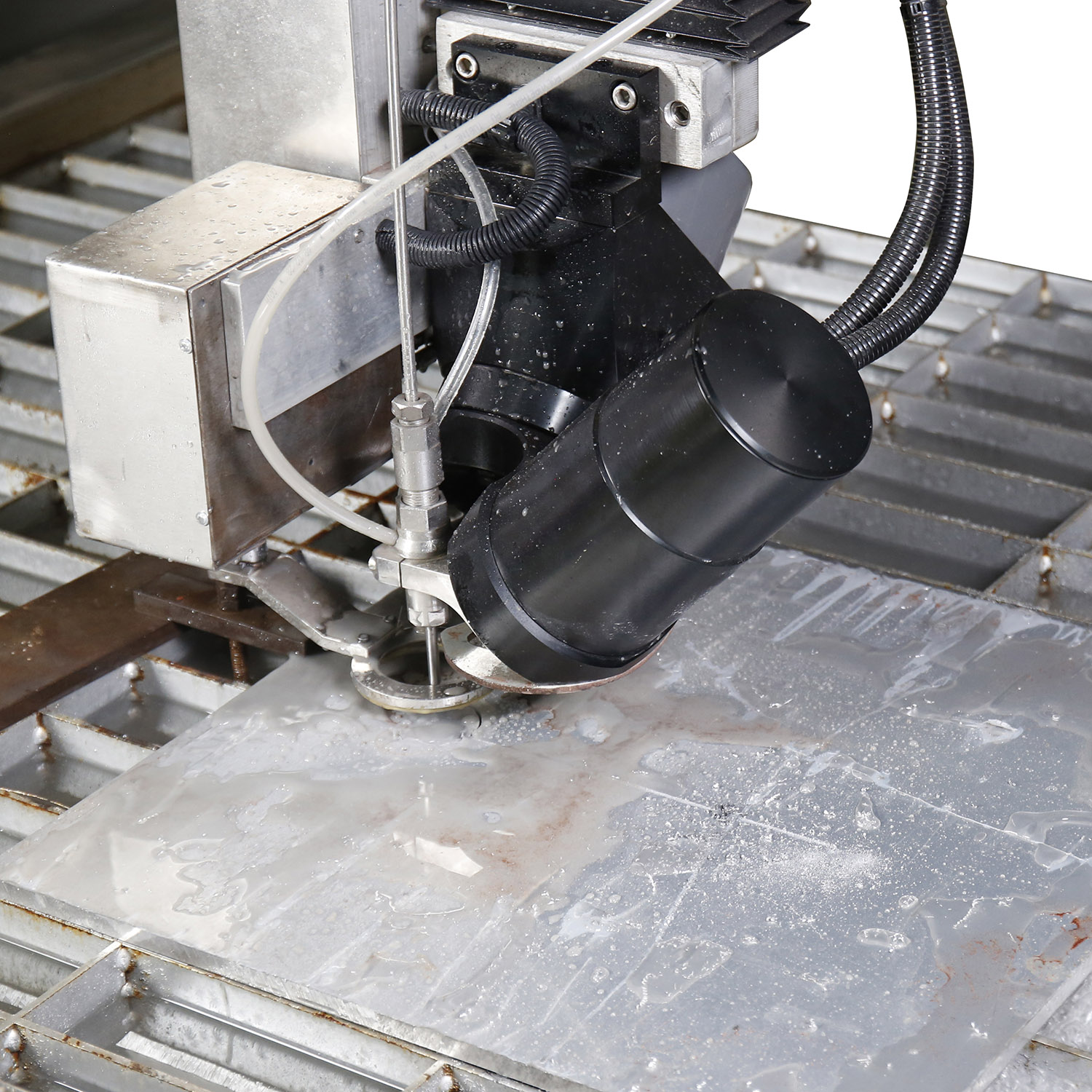

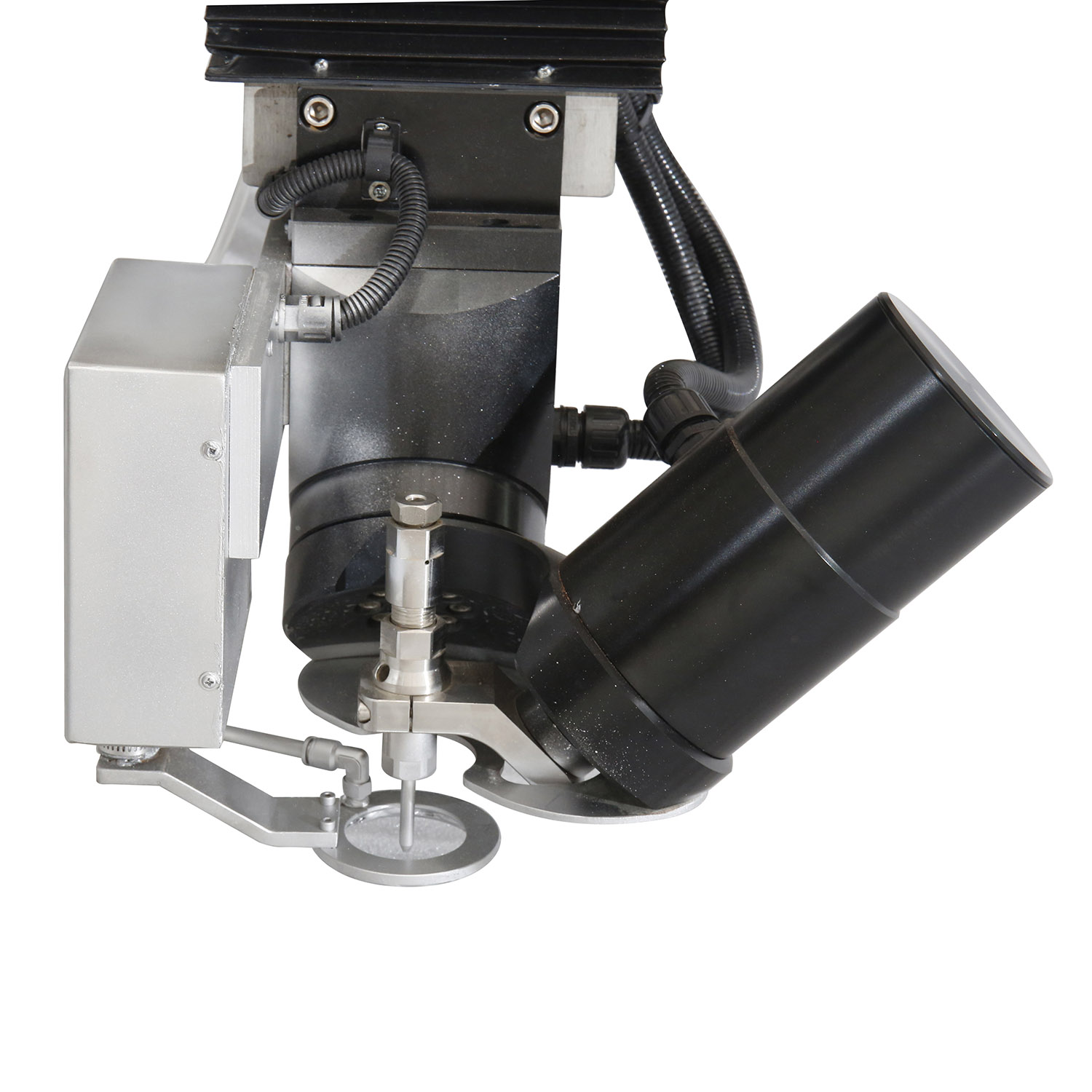

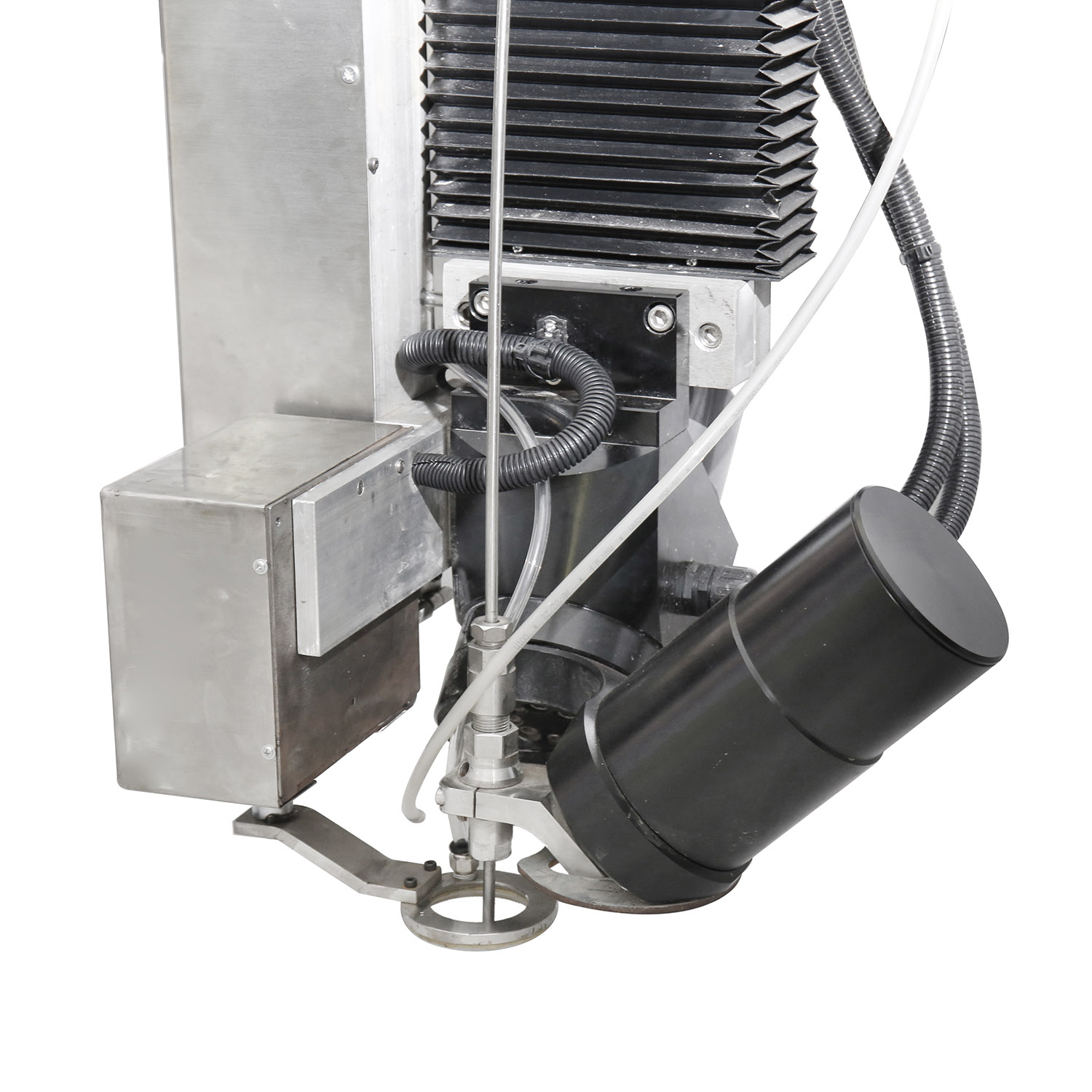

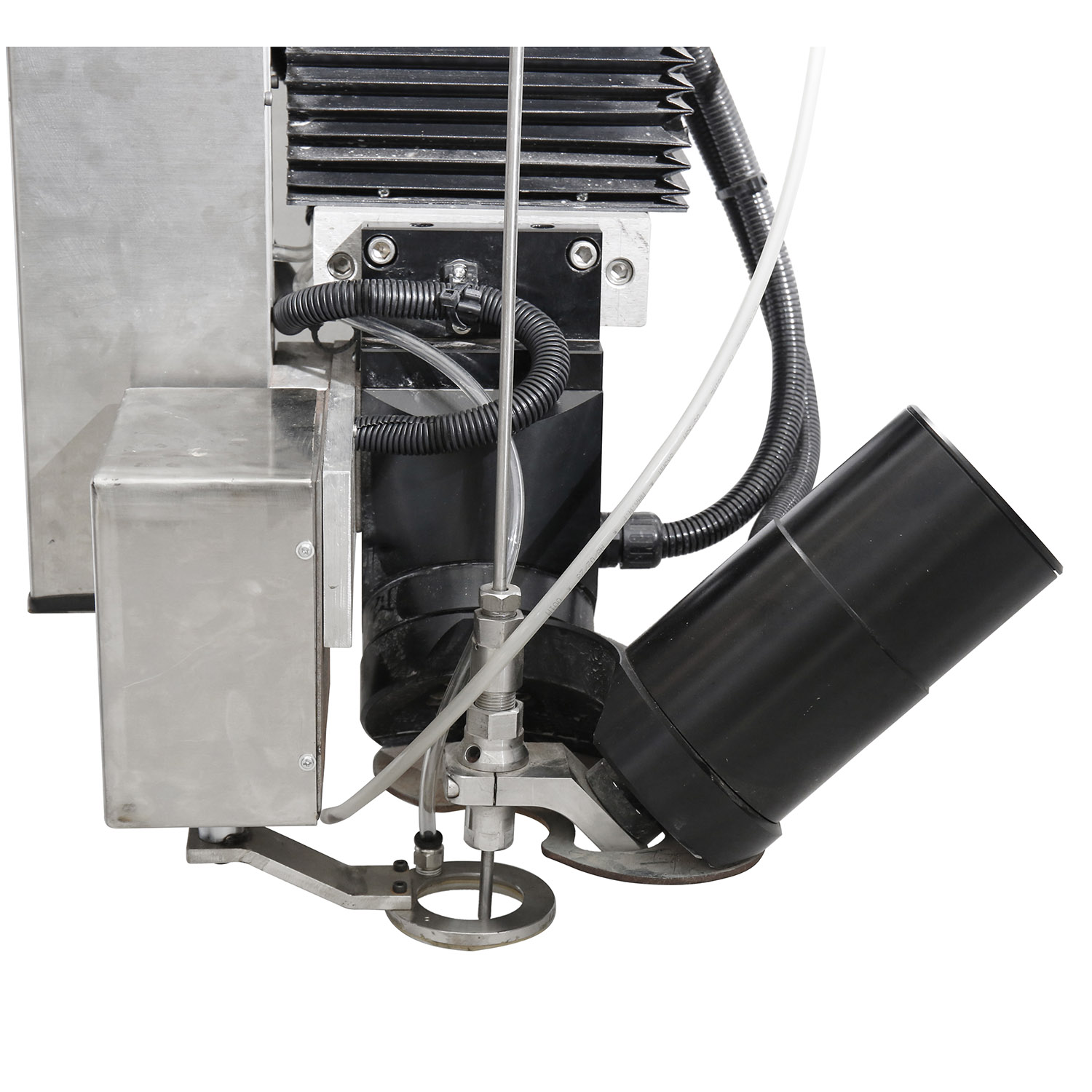

AB 5 axis cutting head system was special designed for users of marble inlay work, it help to reduce polishing and edging,improve production effect and save cost
The cutting table consists of transmission part with X axis,Y axis and Z axis , water tank, cutting head, lubrication part and servo driving system. Gantry mechanical structure is fit to large size machines, long running distance of X and Y axis,suitable for processing a variety of complex big size parts.
Product Advantage:
1. Concise AB five-axis structure and easy for programming.
2. The swing angle of the AB five-axis is t15°, and it is equipped with safety limiter.
3. It can be used in marble and ceramic medallion cutting, which saves time in polishing.
Technical Parameter:
| A Axis | ±10° |
| B Axis | ±10° |
| Bevel Cutting | ±5° |

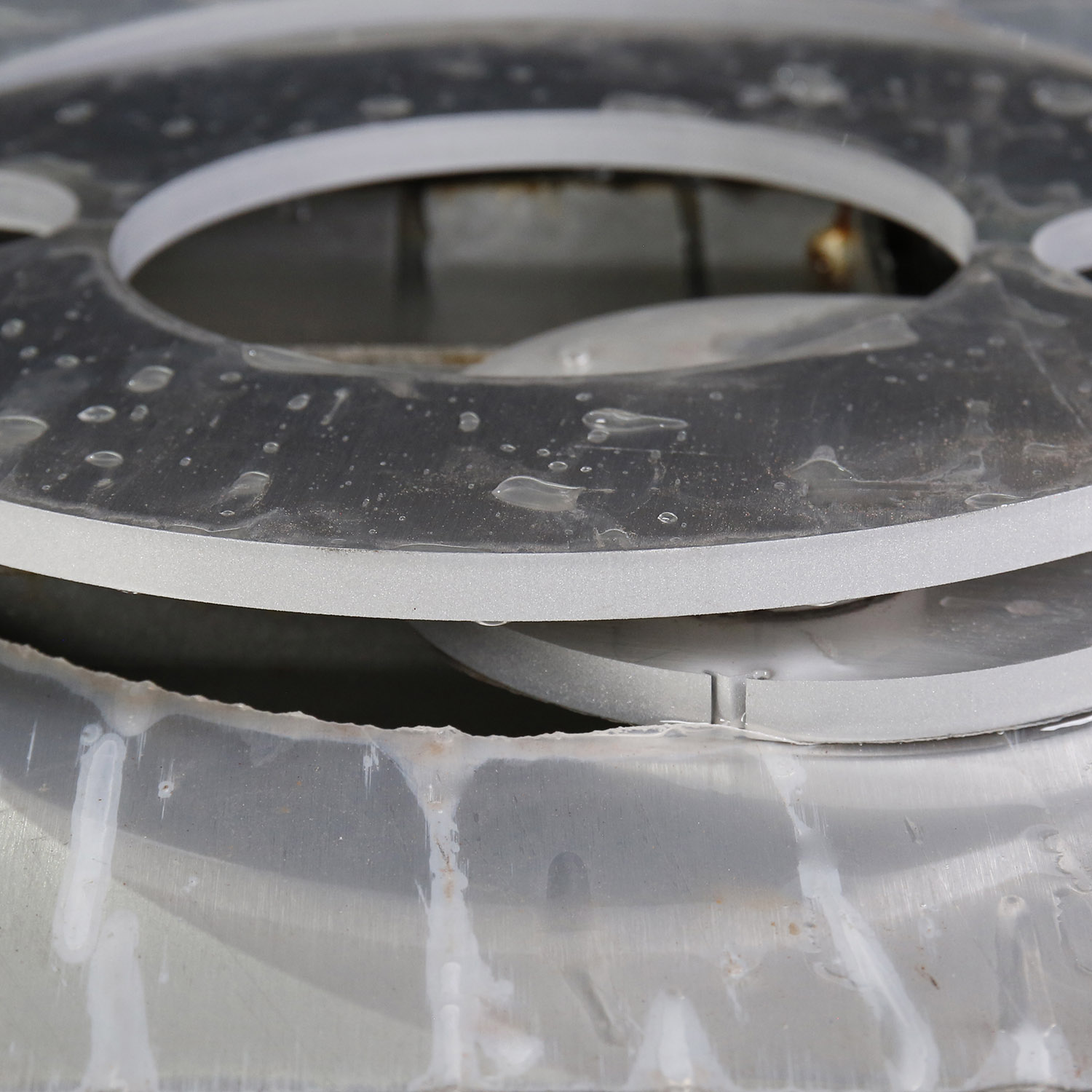

Sample
