| Availability: | |
|---|---|
Technical parameters:
| Product name | Unit | ZDQJ-600 | ZDQJ-1200 |
| Blade diameter | mm | 300-600 | 600-1200 |
| Max working dimensions(L*W*H) | mm | 3200*2000*180 | 3200*2000*450 |
| Worktable size | mm | 3200*2000 | 3200*2000 |
| Worktable tilting degree | n° | 0-85 | / |
| Worktable rotating degree | n° | 90(360) | 0-90 |
| Main motor power | kw | 18.5 | 22 |
| Water consumption | m²/h | 4 | 4 |
| Overall dimensions(L*W*H) | mm | 6000*4700*2600 | 6100*4700*4400 |
| Total weight | T | ≈8.5 | ≈12 |
Technical parameters:
| Product name | Unit | ZDQJ-600 | ZDQJ-1200 |
| Blade diameter | mm | 300-600 | 600-1200 |
| Max working dimensions(L*W*H) | mm | 3200*2000*180 | 3200*2000*450 |
| Worktable size | mm | 3200*2000 | 3200*2000 |
| Worktable tilting degree | n° | 0-85 | / |
| Worktable rotating degree | n° | 90(360) | 0-90 |
| Main motor power | kw | 18.5 | 22 |
| Water consumption | m²/h | 4 | 4 |
| Overall dimensions(L*W*H) | mm | 6000*4700*2600 | 6100*4700*4400 |
| Total weight | T | ≈8.5 | ≈12 |
Features:
1. PLC control, easy to operate, accurate and stable
2. the support guide adopts imported linear guide, high precision, long service life.
3. The main parts of the whole machine (such as frequency converter, magnetic ruler, laser divider, etc.) are made of imported high quality materials, to ensure high precision, stable performance, strong adaptability and high reliability of the whole machine.

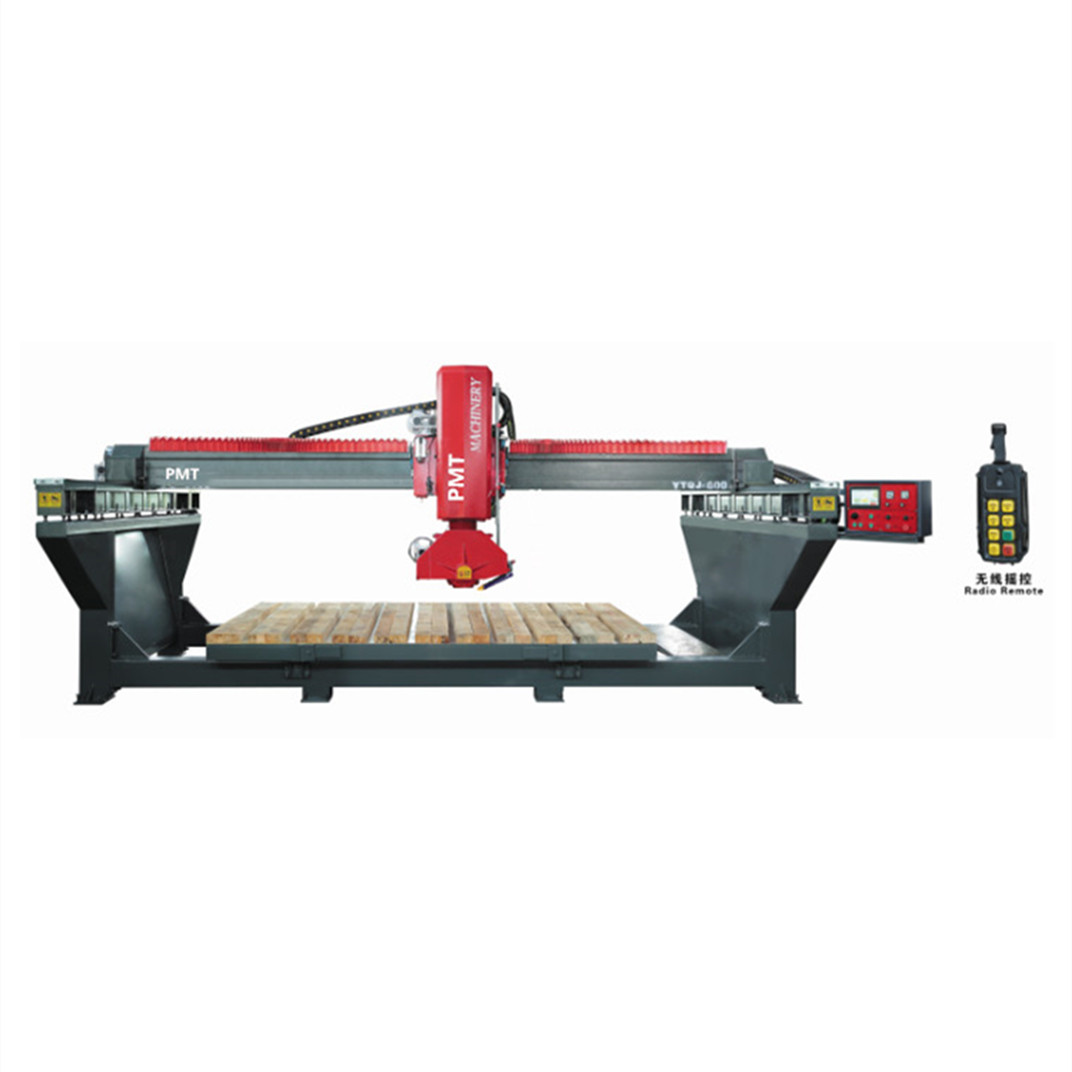

Bridge Cutting Machine infrared automatic stone bridge cutting machine has three type, adopting PLC system and Human-machine interface,togethering with ultra-high precision rotary encoder positioning and infrared device, with Chinese & English double operation language, using inverter to control left right feeding,adjusting the speed according to stone material, using hydraulic lifting system which equipted through 4 guide post, also this machine provide the unique side beam protection device, main spare parts adopt imported well-quality materials.
The whole machine is featured with high cutting efficiency, high cutting precision, high stability, easy to operate, specially high value granite and big size marble.
Features:
1. PLC control, easy to operate, accurate and stable
2. the support guide adopts imported linear guide, high precision, long service life.
3. The main parts of the whole machine (such as frequency converter, magnetic ruler, laser divider, etc.) are made of imported high quality materials, to ensure high precision, stable performance, strong adaptability and high reliability of the whole machine.
Bridge Cutting Machine infrared automatic stone bridge cutting machine has three type, adopting PLC system and Human-machine interface,togethering with ultra-high precision rotary encoder positioning and infrared device, with Chinese & English double operation language, using inverter to control left right feeding,adjusting the speed according to stone material, using hydraulic lifting system which equipted through 4 guide post, also this machine provide the unique side beam protection device, main spare parts adopt imported well-quality materials.
The whole machine is featured with high cutting efficiency, high cutting precision, high stability, easy to operate, specially high value granite and big size marble.
