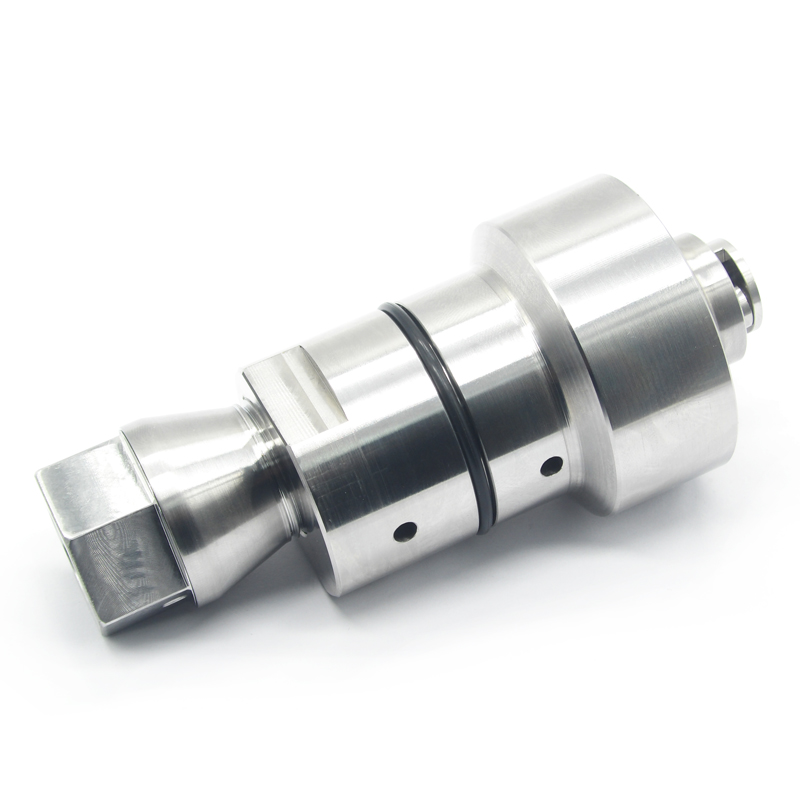

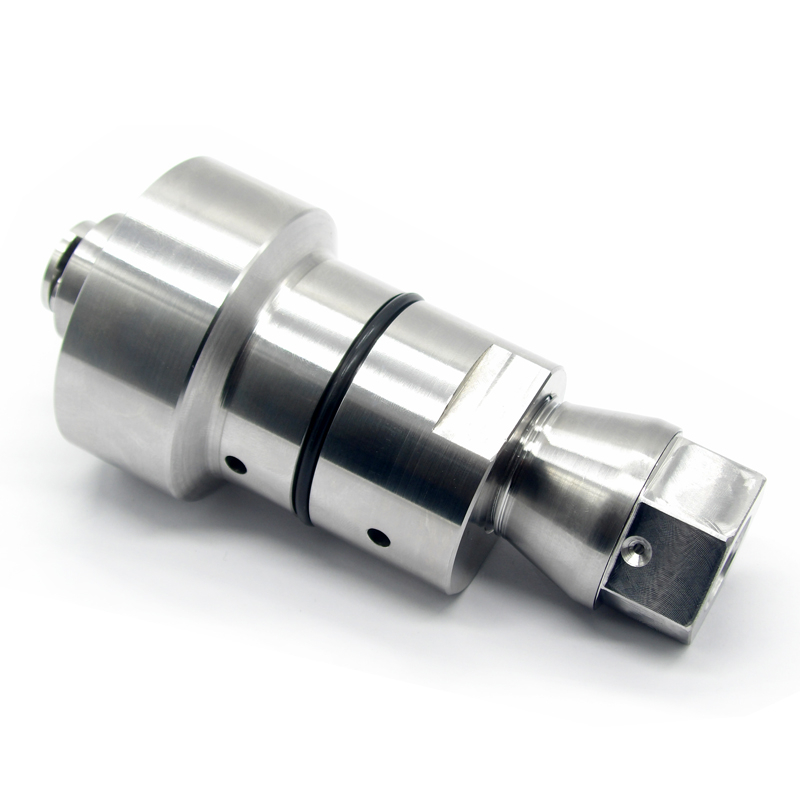

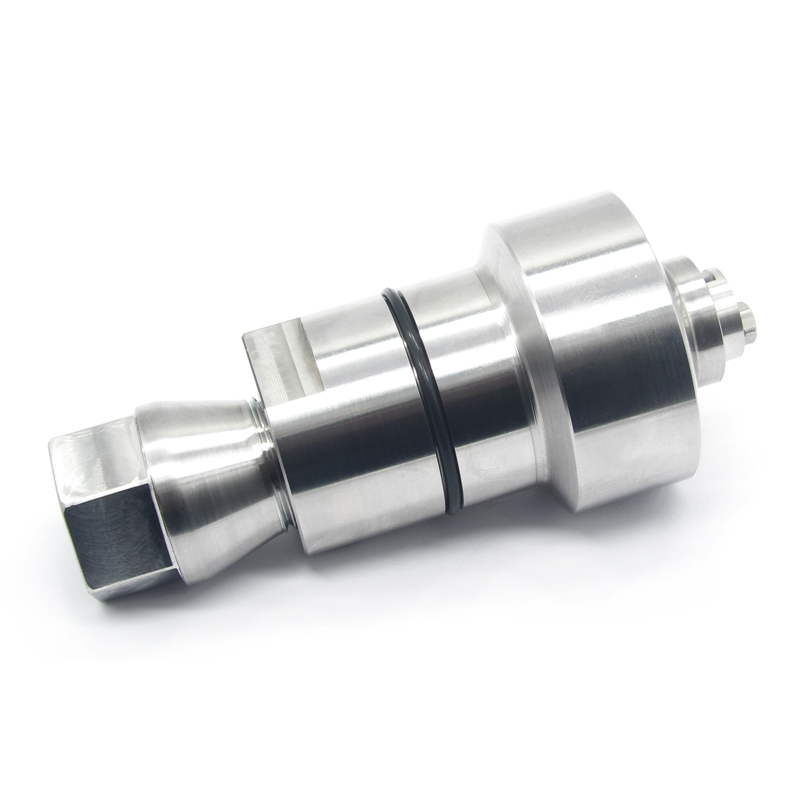

Check Valve Assembly
391002-1 is for Flow and H2O Jet 94k intensifiers. (Outlet poppet is improved design for smoother, quicker response; it reduces downstream shock extending tubing and fitting life.)
Quantity | Part# | Description | |
1 | 100009-1 | Check Valve Main Body, 60K | |
1 | 302040-1 | H2O JET Check Valve Upgrade Kit | |
1 | 302003-1 | Check Valve Repair Kit, 60K & 40K | |
1 | 400043-125 | O-Ring (Use in 302003-1, Check Valve Repair Kit) | |
1 | 100034-1 | Check Valve Poppet Seat | |
1 | 301009-1 | Inlet Poppet Housing Assembly, Check Valve | |
1 | 100056-1 | Check Valve Retaining Screw | |
1 | 100057-1 | Check Valve Outlet Poppet | |
1 | 100058-1 | Check Valve Inlet Poppet |
