ControNest System
With ControNest advance beveling option it’s possible to do all beveling cutting types easily and from the same program interface.
Thanks to 5 Axes compensation makes Beveling cutting more accurate.
5 Axes Compensation:

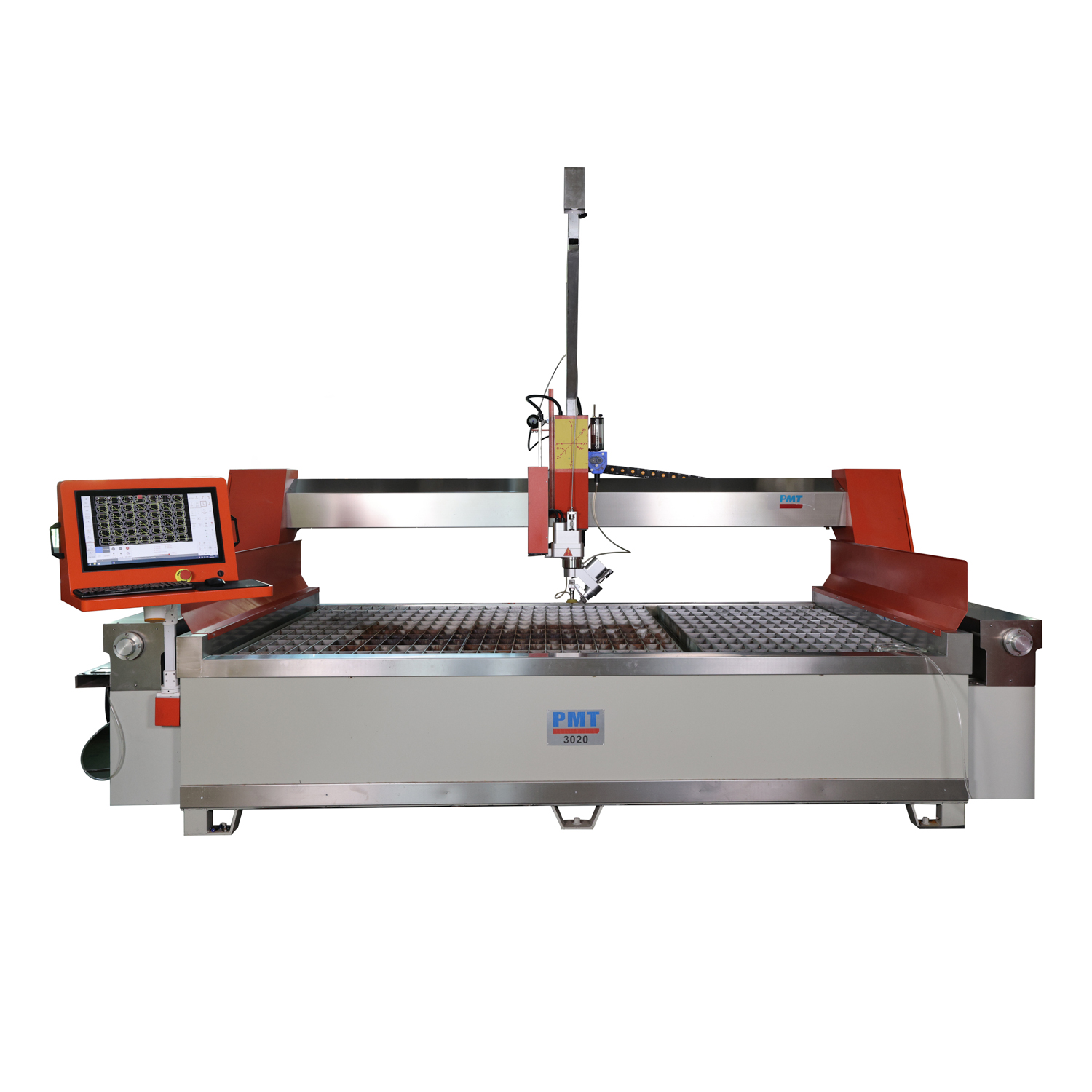

No matter what the type of cutting machine (Water-jet, Laser) or how complicated the kinematic of the 5 axis head The controller is capable to run any 5 axis cutting machine, along with correcting the X Y axis to compensate the tool center error.
Regardless the accuracy of the 5-axes mechanism, this feature will allow the customer to re-calibrate his 5 axis at no time.
Only need to cut Calibration cutting sample, then do 4 distances measuring and the controller will automatically calculation the X,Y compensation values according to beveling axes movement.
Make 5 Axes calibration easier and more effective, and result a very high accuracy with beveling cutting.
Advantages:
Seven different types of beveling for easy part creation .
Support both limited and unlimited rotation for C axis.
Can easily select different beveling type for each contour or each segment (Line or arc).
Can select segments to be excluded from beveling for same shape.

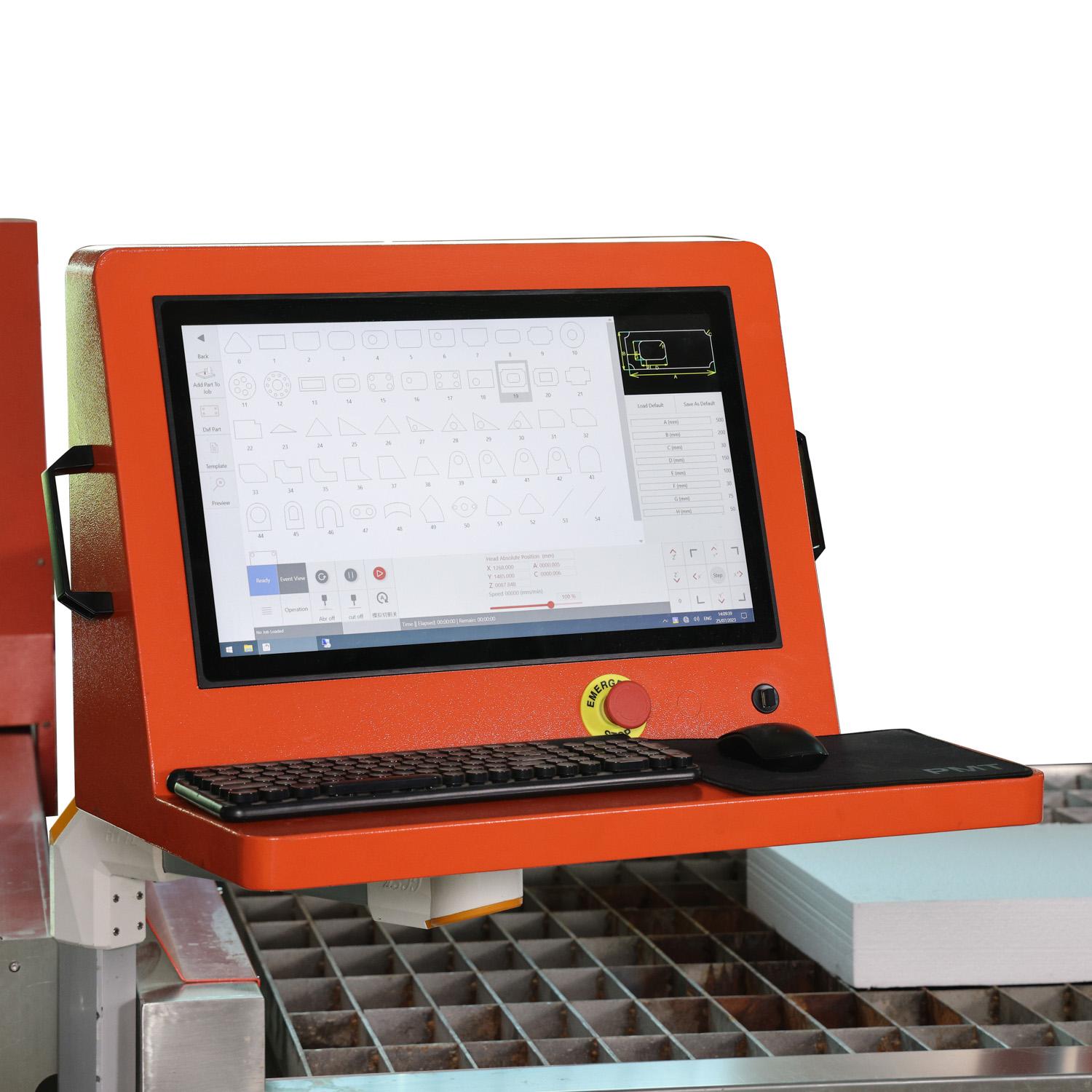

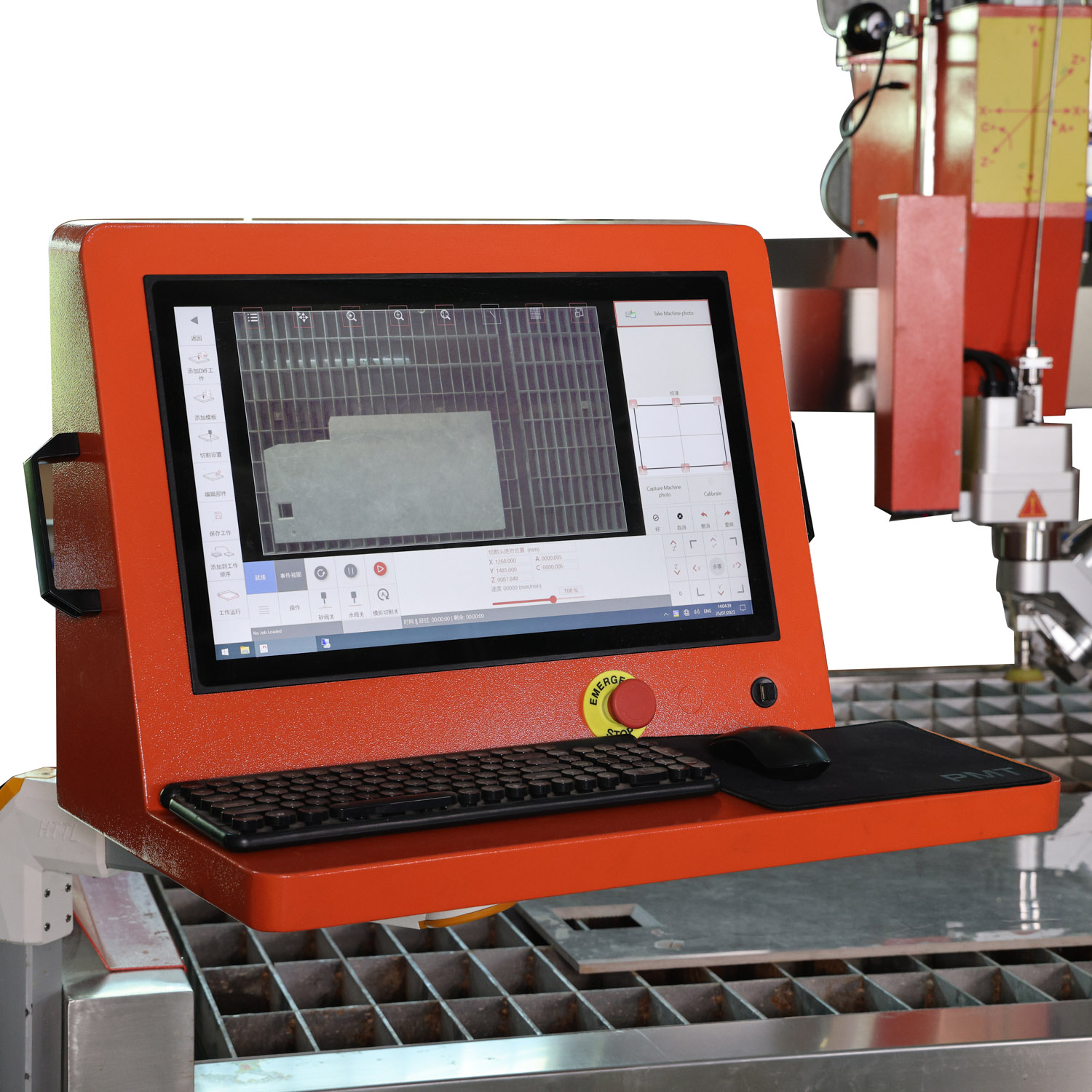

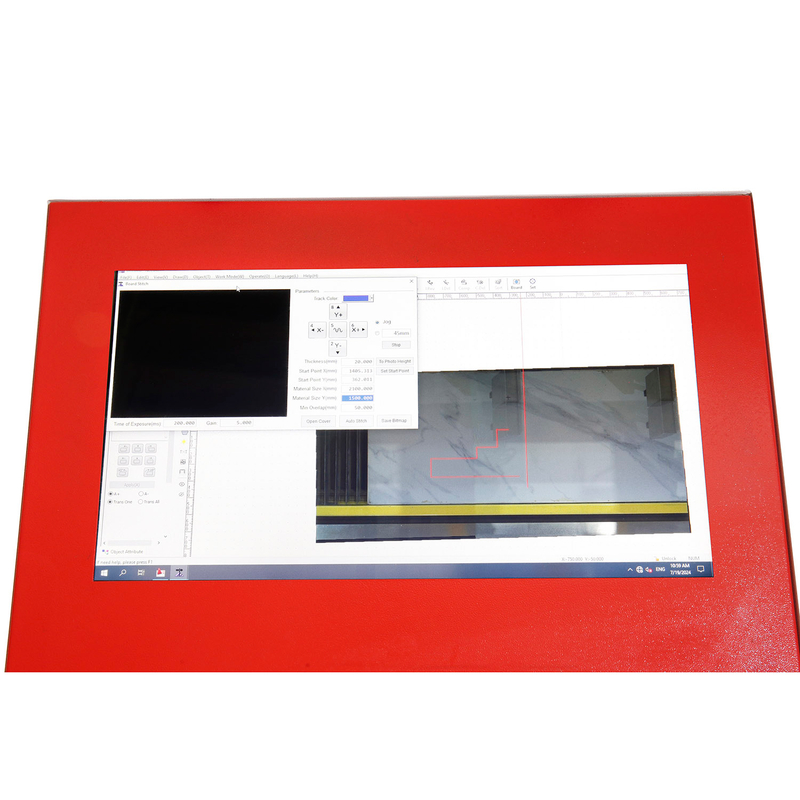

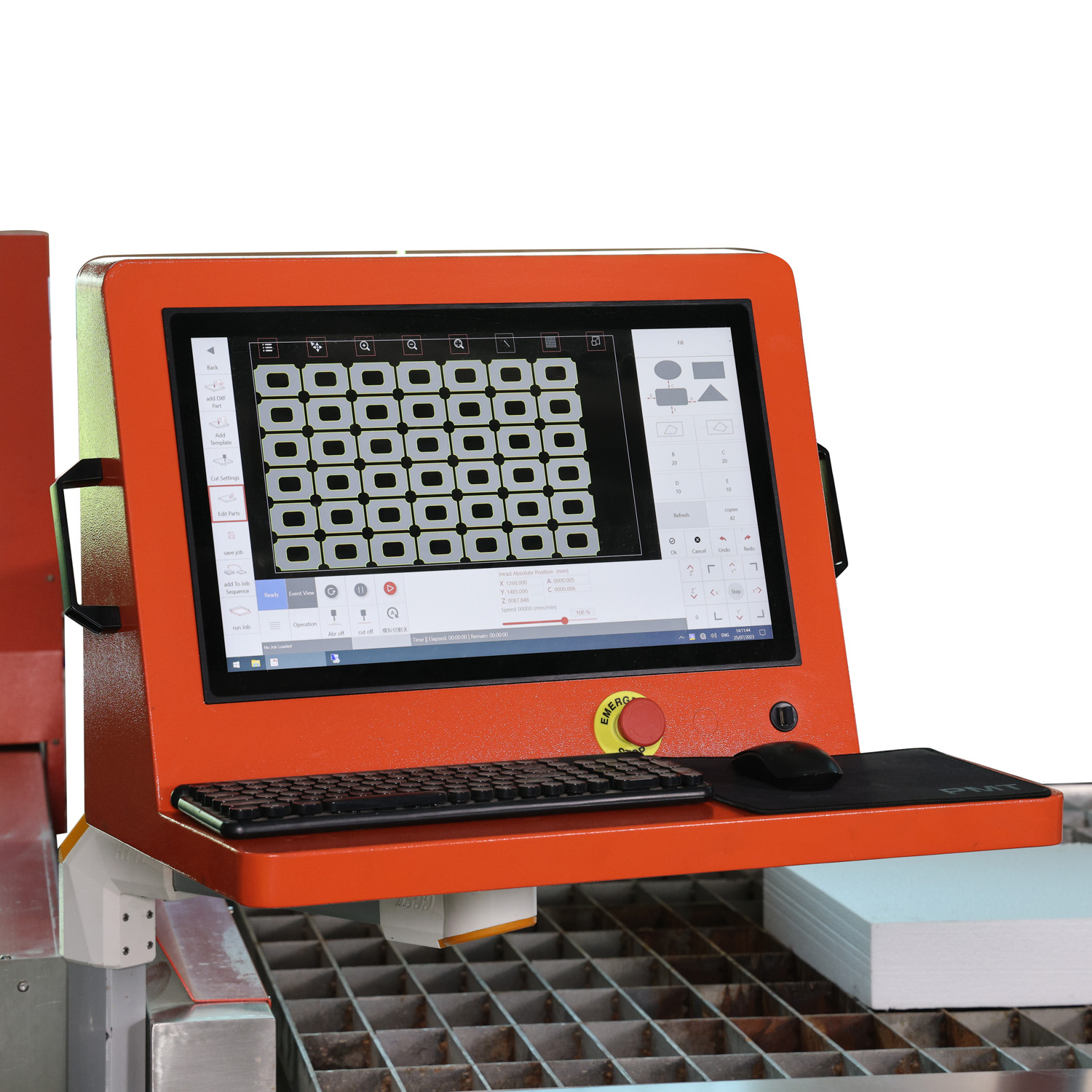

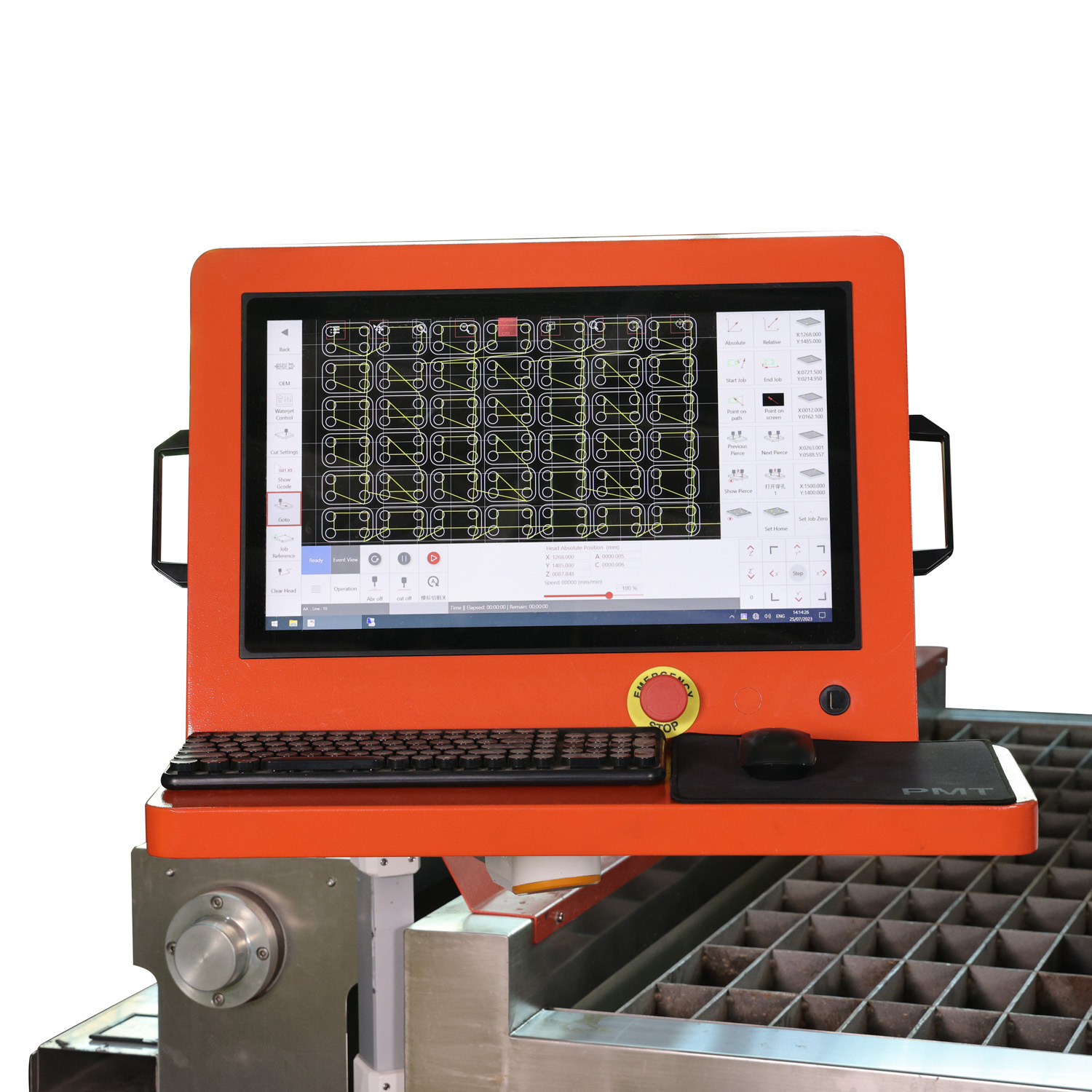

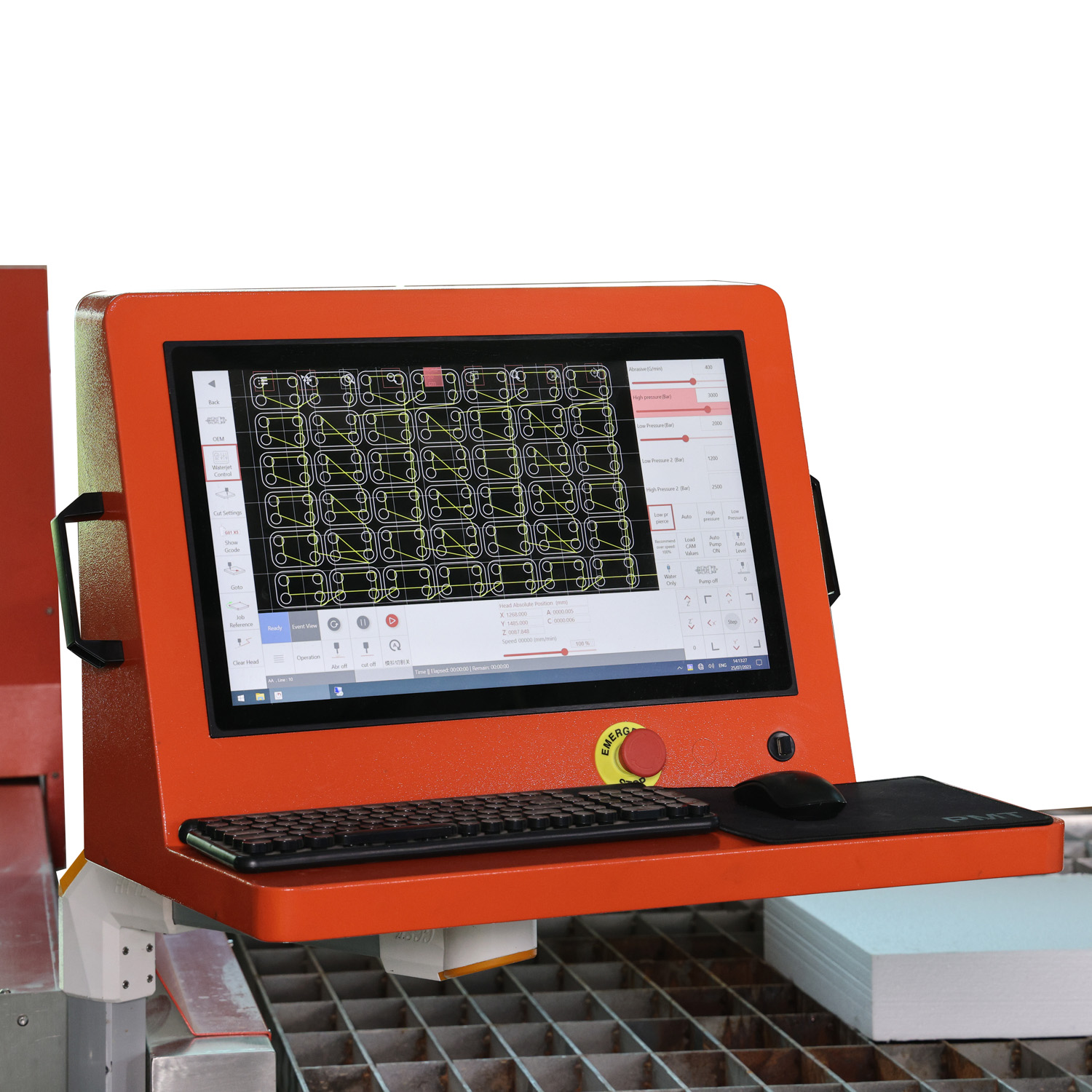

Touch screen program layout for easy user control.
Integrated operation interface with PLC functions.
Multi language easy selection (Chinese, English, Russian……..).
