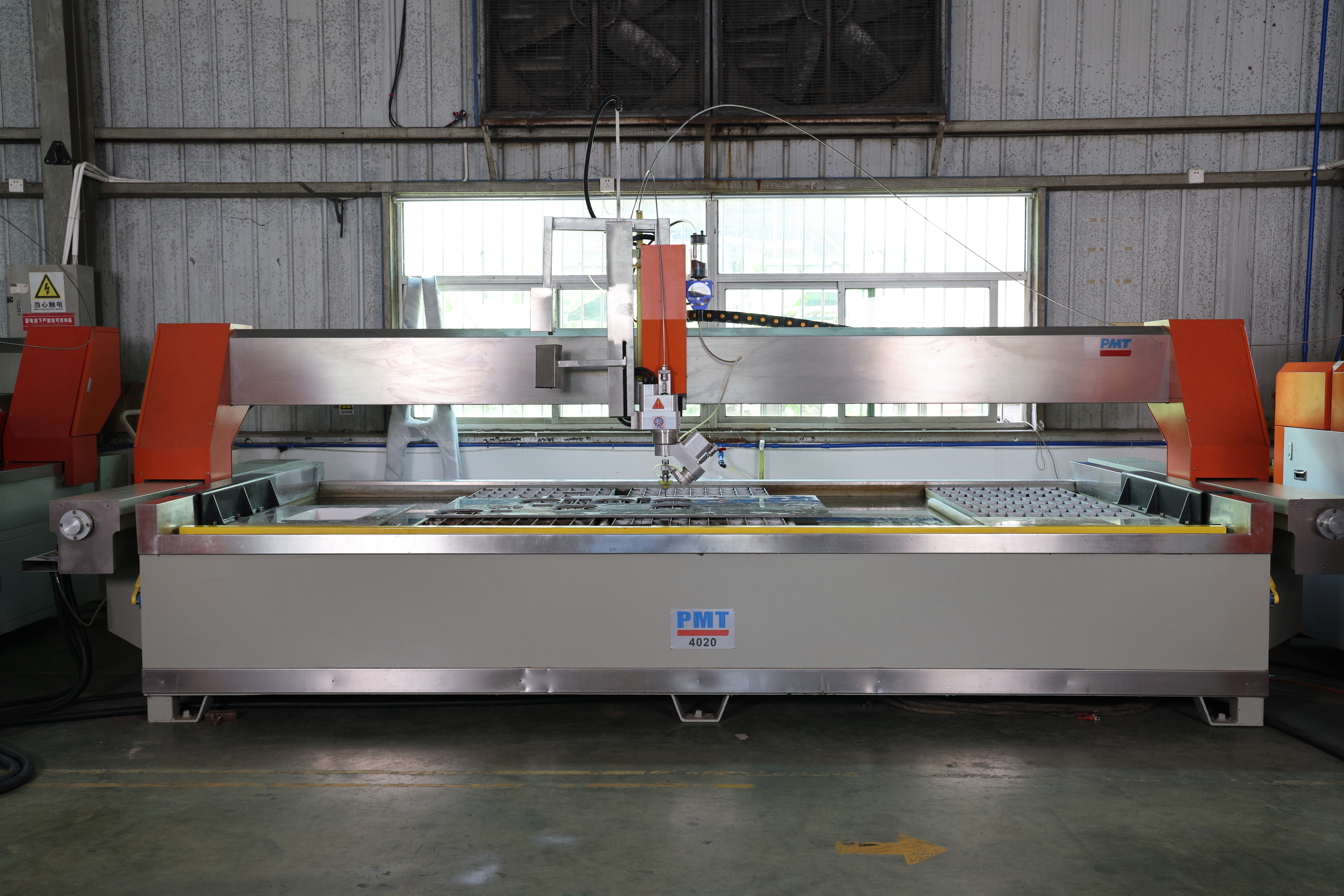

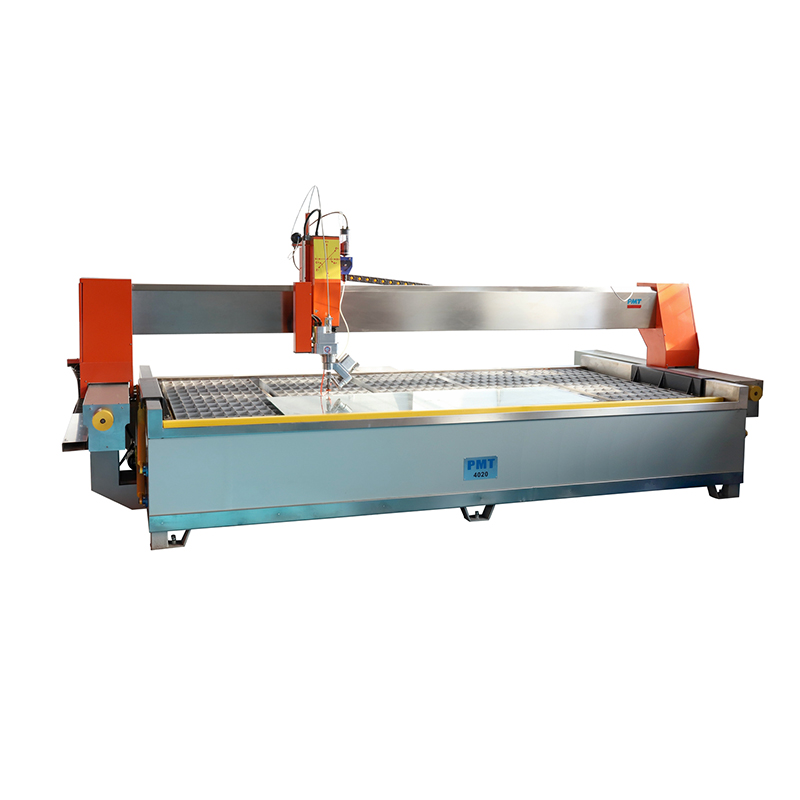

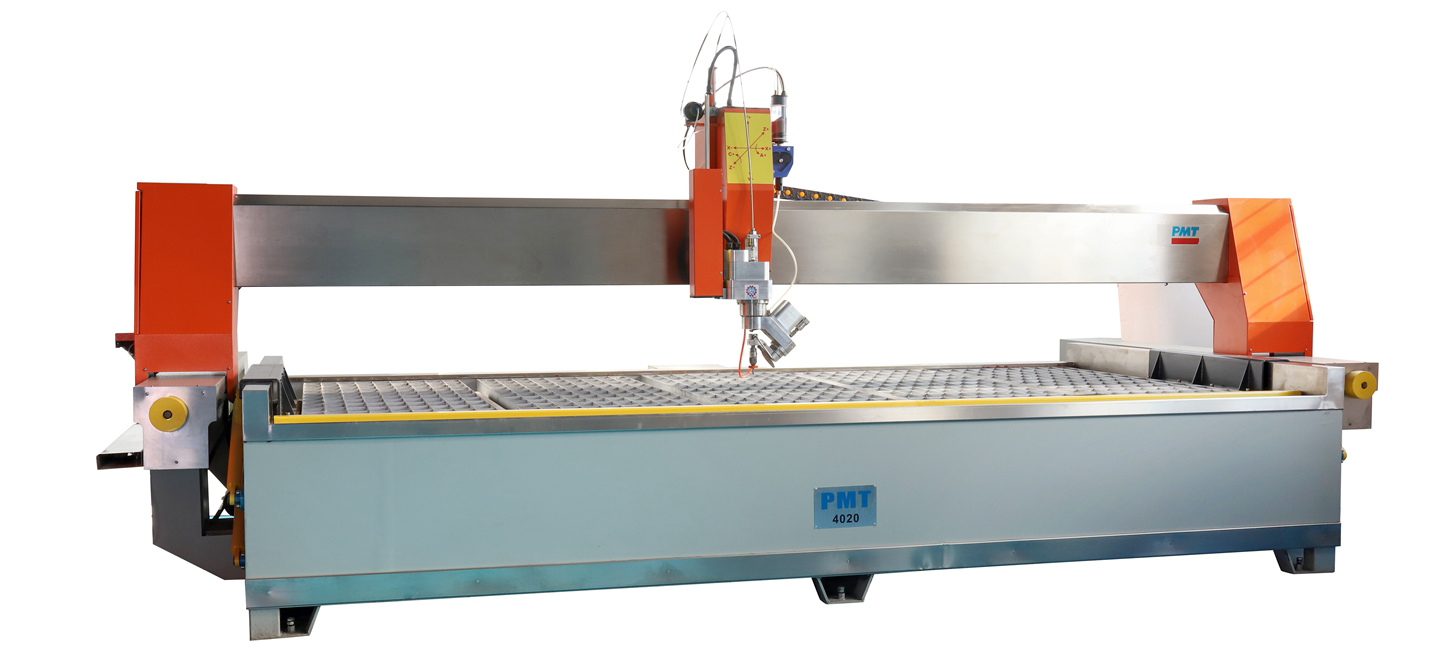

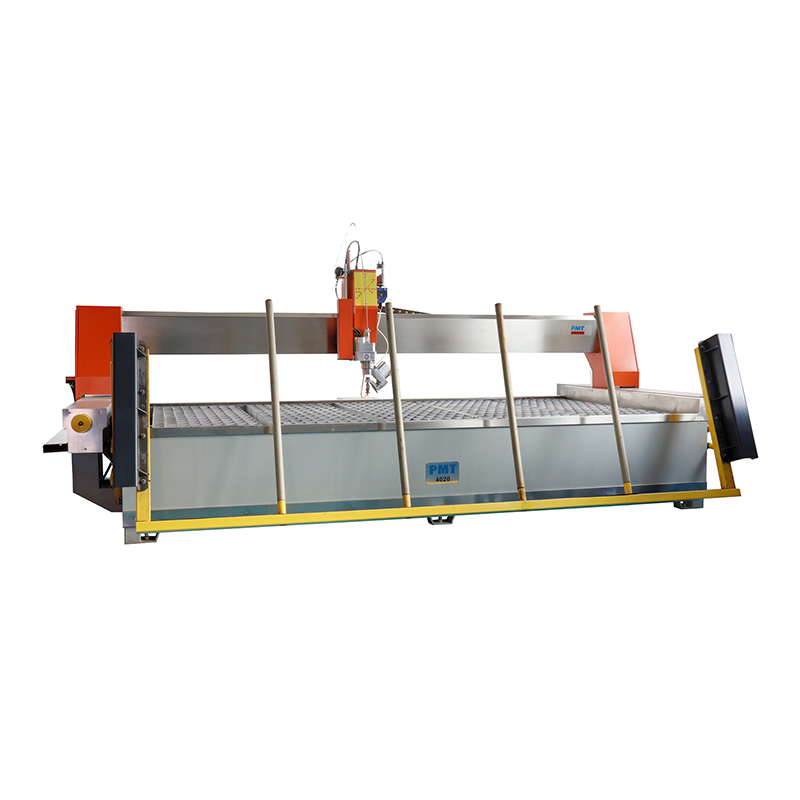

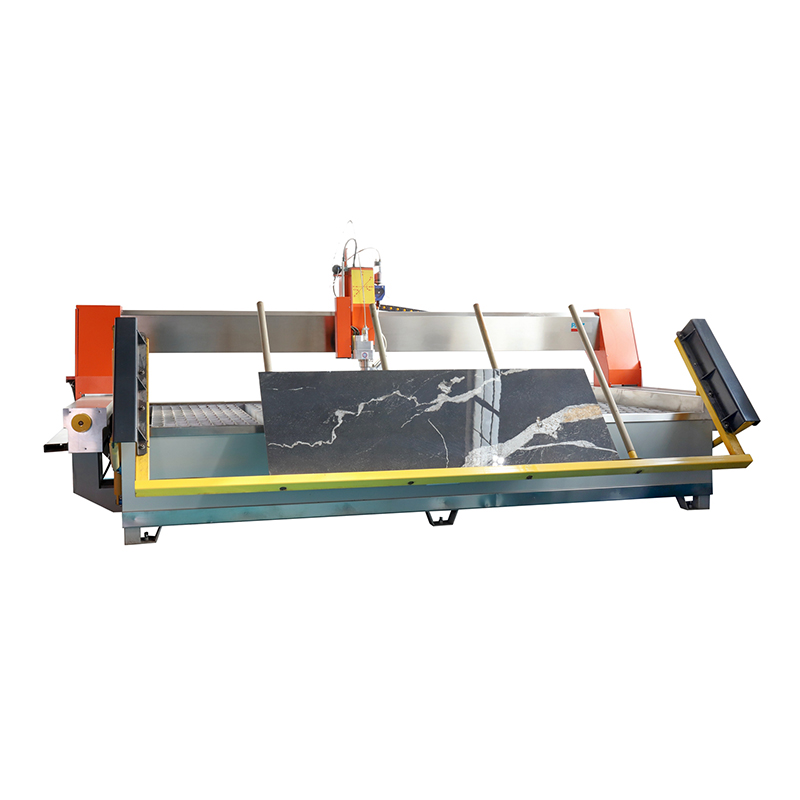

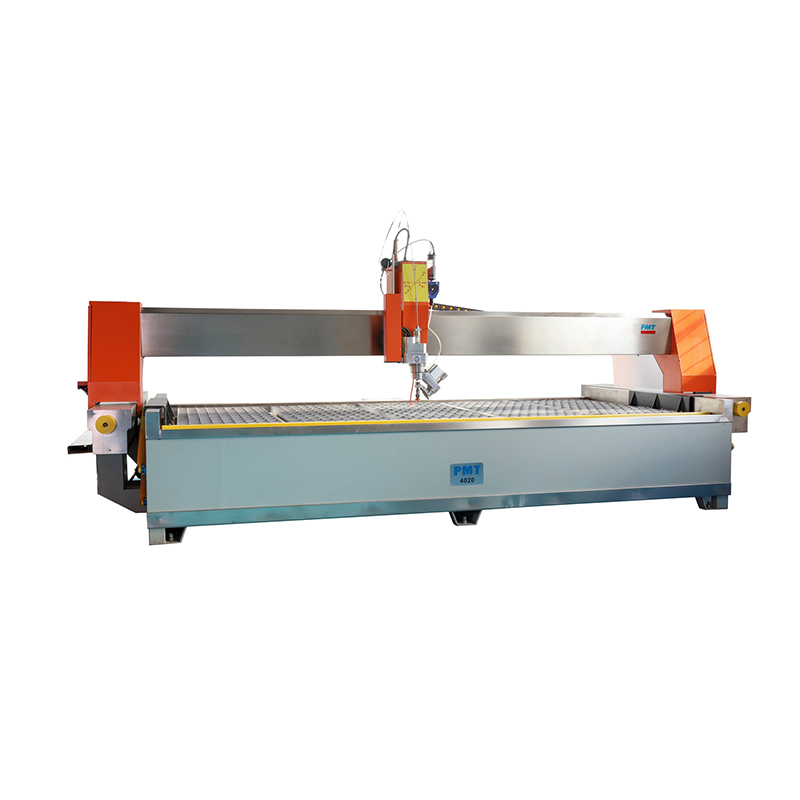

PMT waterjet cutting table comprises a transmission section comprising X, Y, and Z axes, a water tank, a cutting head, a lubrication section, and a servo driving system. With its versatile cutting capabilities, the Waterjet Cutter is capable of cutting a wide range of materials, including metal, rubber, foam, plastic, composites, stone, ceramic tiles, marble, and glass.
The gantry mechanical structure is specifically designed for large-sized machines, enabling extended travel distances along the X and Y axes. This feature makes it ideal for processing complex and oversized parts.

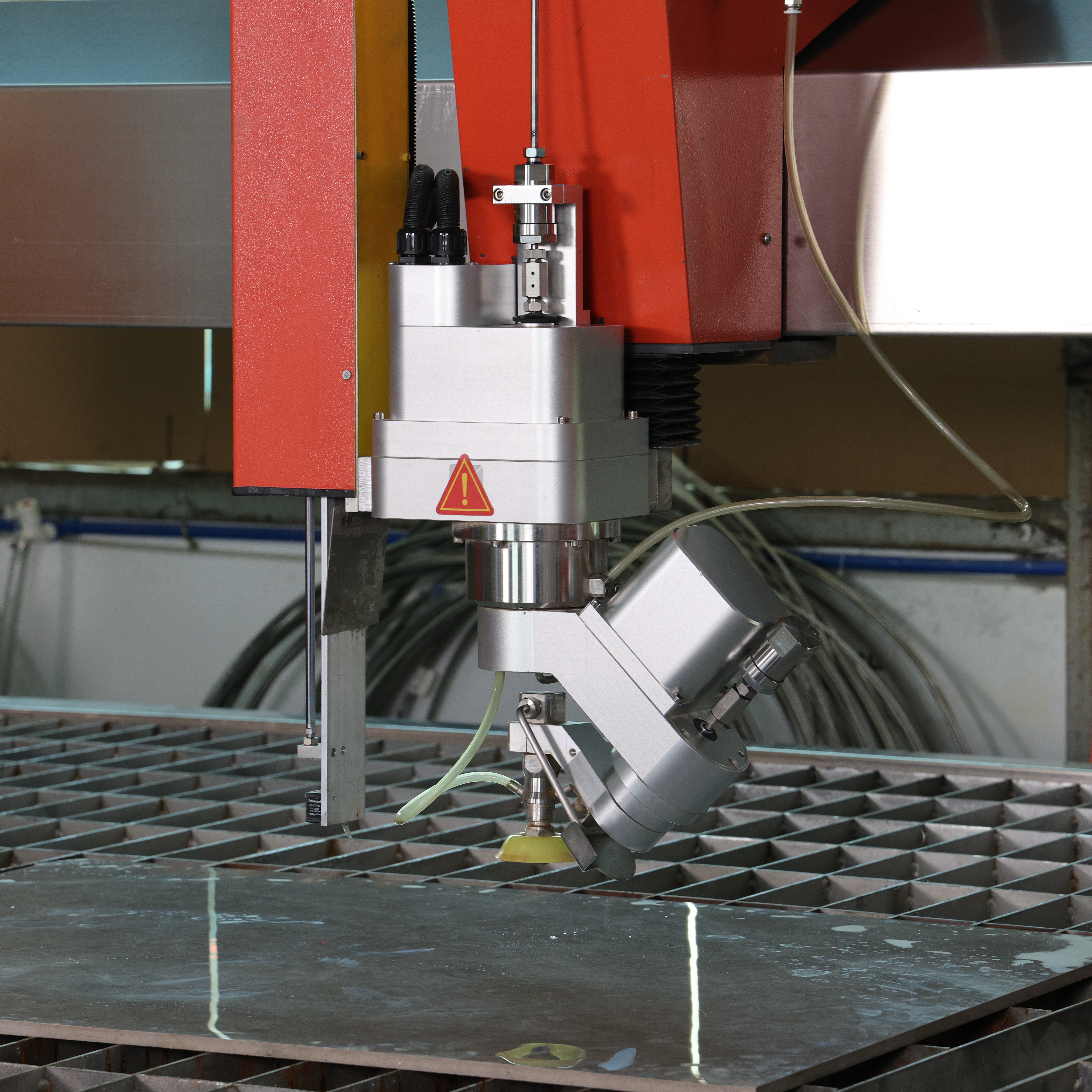

Cutting head Waterjet Cutting Machine
Advantage of PMT waterjet cutting machine
The waterjet cutter ensures an impeccable cutting quality with a smooth finish.
Achieving a cutting accuracy of up to 0.1mm, the waterjet cutter produces consistent and precise edge joints, allowing for the creation of intricate puzzles and murals.
With its high cutting speed, the waterjet cutter guarantees excellent product consistency and interchangeability.
The waterjet cutter enables simultaneous drilling, cutting, and shaping operations, streamlining the manufacturing process.
By improving the working environment and minimizing dust and noise impact on operators, the waterjet cutter enhances overall operational conditions.
Employing a cold cutting method, waterjet cutting avoids damage to the internal structure of the material being cut.
The waterjet cutter stands as the sole machine capable of processing composite materials and delicate porcelain.
About size, we have 4000*2000 mm , 3000*2000mm , 2000*1500mm , 2500*1500mm , 6000*2000mm ect, which you want?
1. Working Table & Controllor
The cutting table utilized in this process is a state-of-the-art, computer-controlled 2-D table. It comprises several essential components, including the Y-axis, catcher, X-axis, Z-axis (cutting head rest), cutting head, high-pressure hose, and the abrasive box. To ensure precise movements and stability, both the X-axis and the Y-axis are equipped with linear guides and ball screws. This advanced setup guarantees optimal performance and accuracy.
Model | 2015 | 2515 | 3020 | 4020 | 6020 |
Dimension(mm) | 2650*2150mm | 3100*2150mm | 4500*2300mm | 5250*2300mm | 7300*3100mm |
Max. cutting range | 2000*1500mm | 2500*1500mm | 3000*2000mm | 4000*2000mm | 6000*2000mm |
Travel of Z axis | 180mm | ||||
Servo system | Weihong,OEM Panasonic | ||||
ball-screw linear-rail | ABBA/TBI,Taiwan Brand | ||||
Re-positioning accuracy | ±0.025mm/m | ||||
Cutting accuracy | ±0.1mm | ||||
Max. running speed | 15m/min | ||||
lubrication | Oil Immersion | ||||
Material | 203stainless steel material tank,cast steel beam,rubber and stainless steel cover | ||||
2. Feature
The linear guides and ball screws of the cutting table are fully submerged within an oil tank, ensuring extensive lubrication and protecting the drive system from wear caused by abrasive and water splashes. This innovative design not only guarantees exceptional cutting precision but also significantly extends the machine's lifespan, effectively addressing the issue of accuracy loss commonly experienced with traditional water jet cutting machines. Moreover, this system ensures consistent accuracy throughout the day, regardless of the time of operation.
Enhanced Stability: The oil-immersed transmission mechanism offers superior stability in comparison to conventional mechanisms, enabling precise control over cutting speed, pressure, and direction.
Reduced Noise: By utilizing refined oil for lubrication, the oil-immersed transmission mechanism achieves improved lubrication effectiveness and lower noise levels, surpassing the performance of grease or liquid lubricants found in traditional mechanisms.
Simplified Maintenance: Maintaining the oil-immersed transmission mechanism is easier than with traditional mechanisms. The long-lasting lubricating effect of refined oil eliminates the need for frequent oil replacements, resulting in reduced maintenance costs.
Extended Service Life: The oil-immersed transmission mechanism boasts an extended service life compared to traditional counterparts. Unlike traditional mechanisms where poorly lubricated components like bearings are prone to wear, the oil-immersed transmission mechanism eliminates such issues
3.Cutting sample
Our factory not only have all kinds of size of water jet machines and waterjet spare parts, but also our company sell all kinds of stone carving machines, laser machines, bridge cutting machines, edge grinding machines, row pitch machines and rope machines and so on !!!
