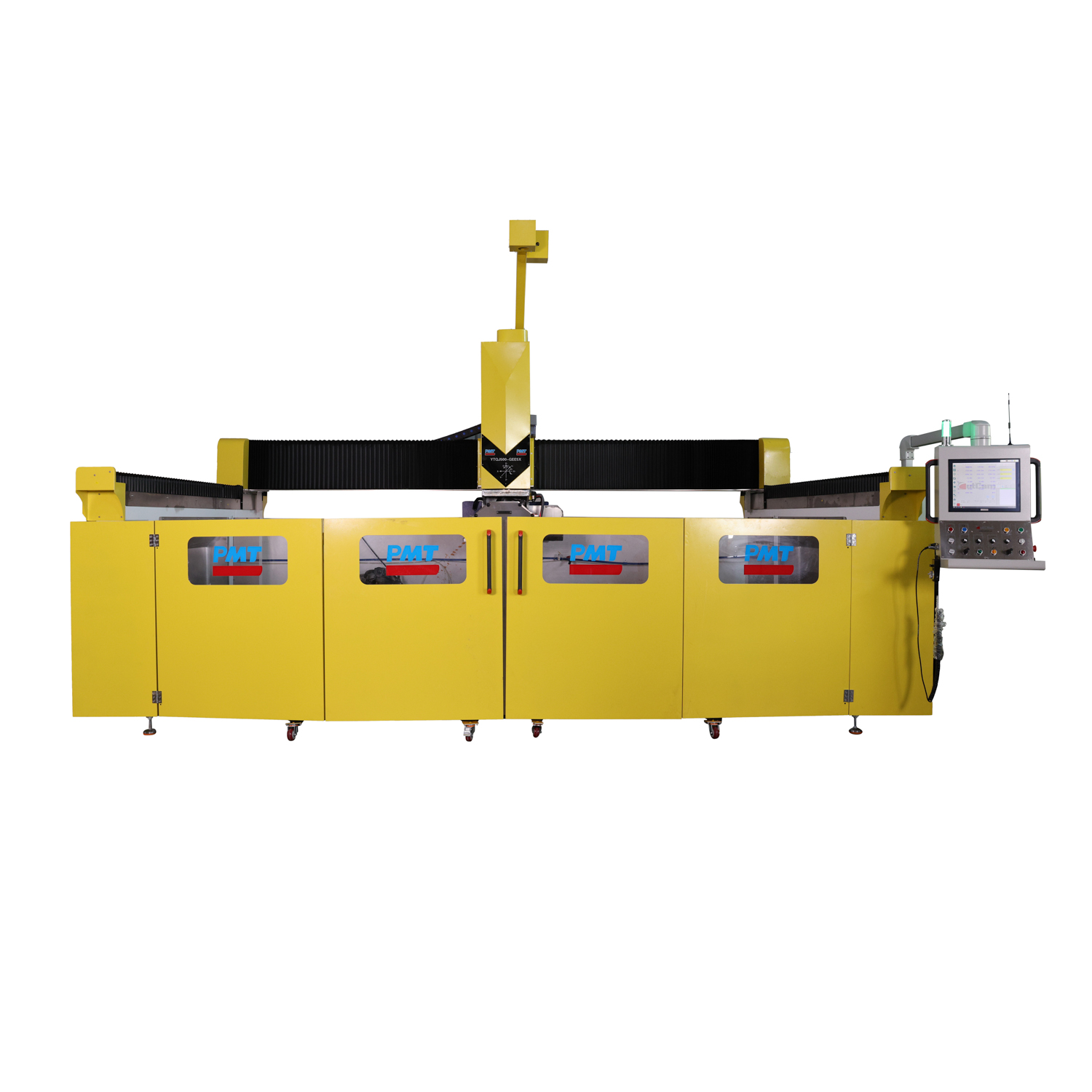

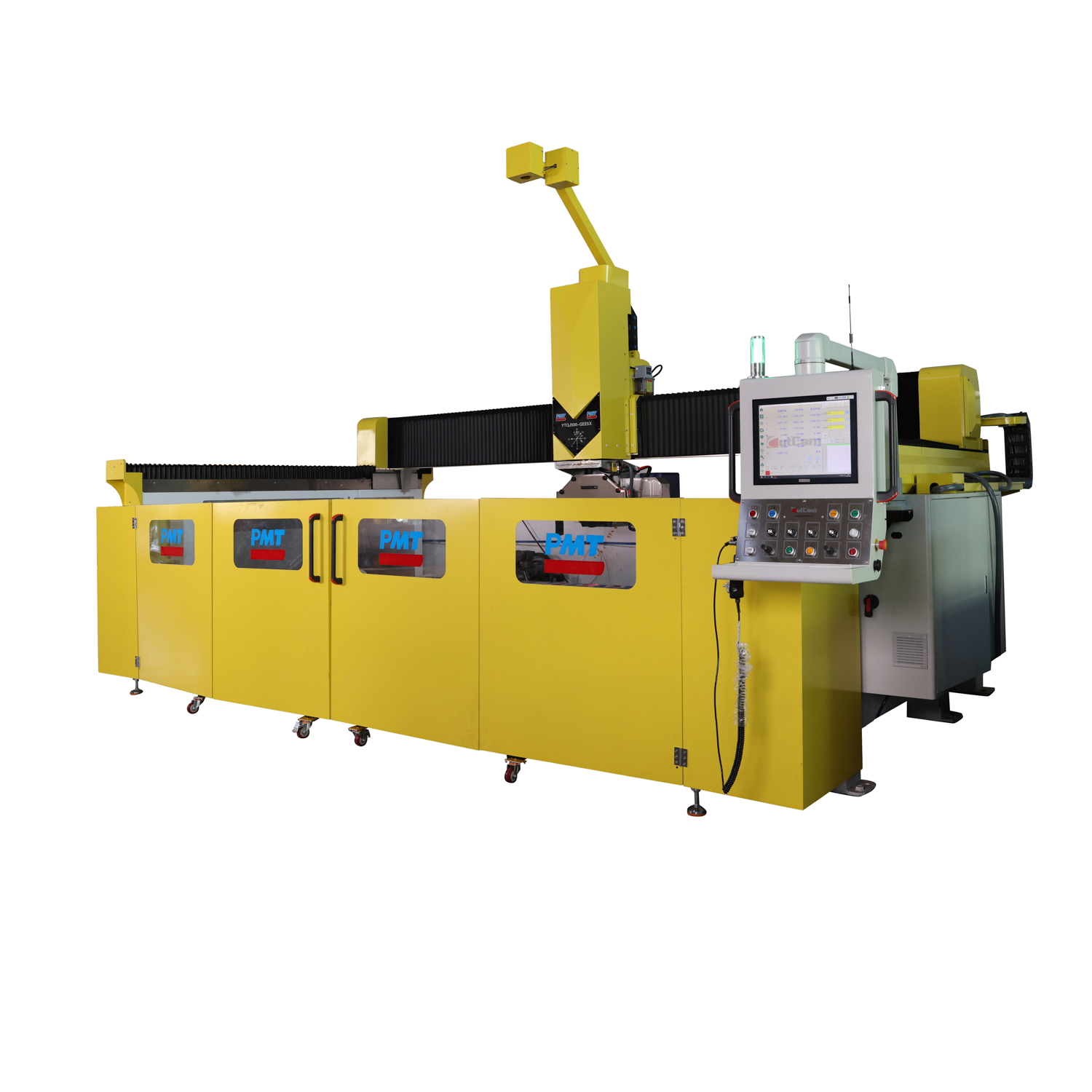

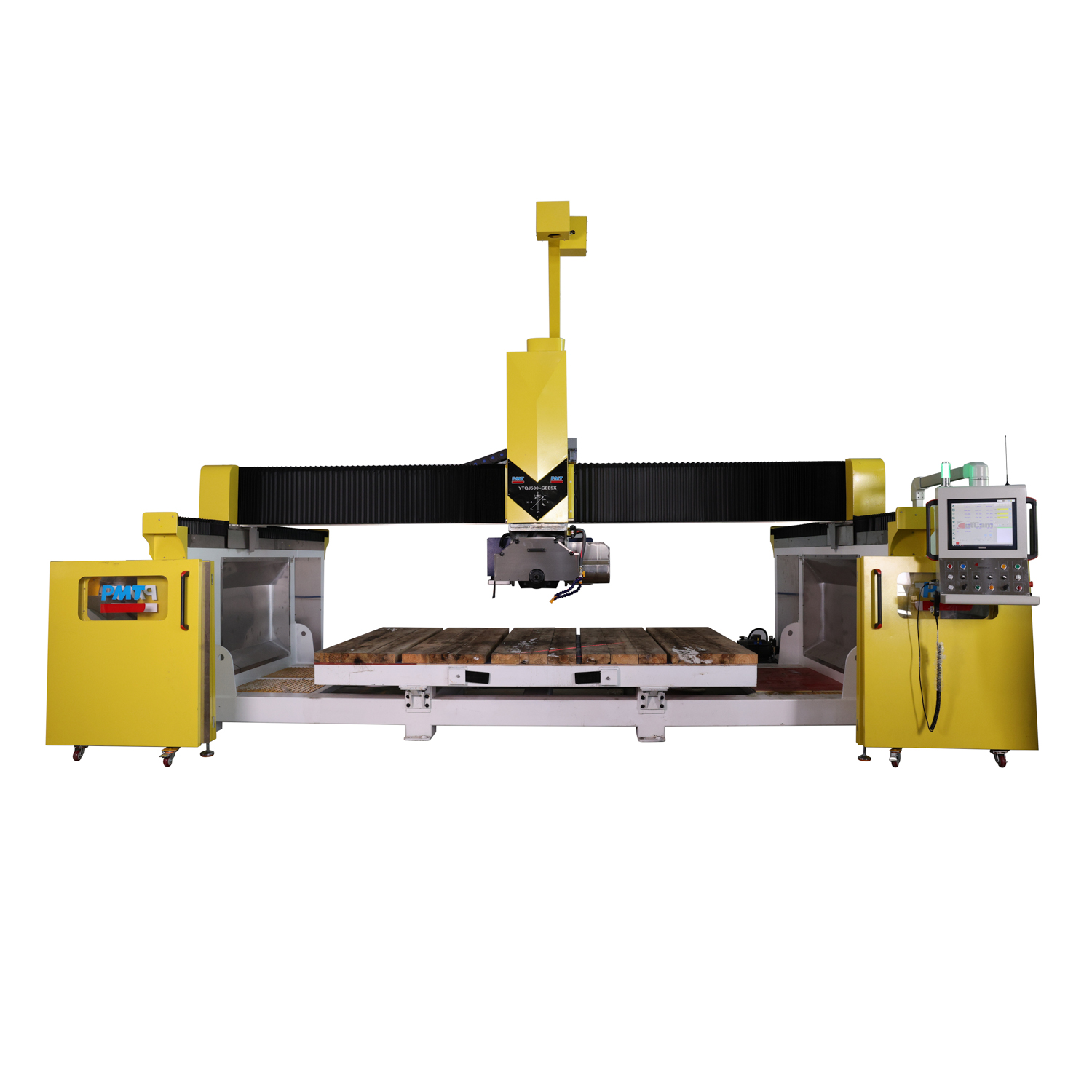

4-Axis Bridge Cutting Machine

4-Axis Bridge Cutting Machine with PLC controlled head rotation, is a 4-axis mono-block bridge sawing machine easy to perform any types of straight and curve cutting, surface profiling and shaping with blade shoulder.

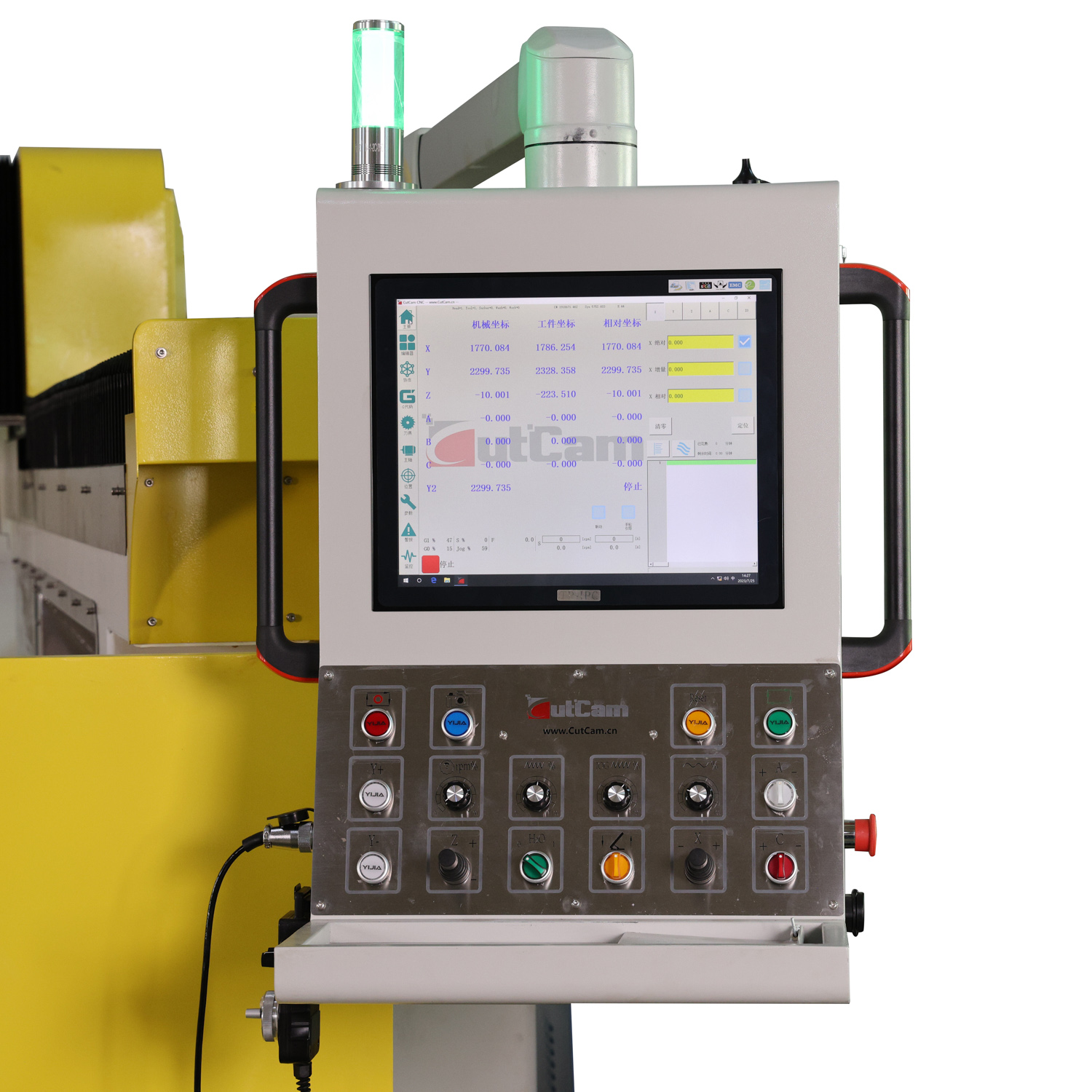

It allow you to input module data simply through touching human-machine interface, with no programming required. The operation is easy and intuitive.
This bridge cutting machine is designed for cutting sintered stone tile, granite, marble, quartz or other natural and engineered stone slabs.

1) Monoblock structure for easy move, installation and no foundation needed.

2) Small covering area: 6mx5m, save space

3) Linear guide in X/Y/Z axis to gurantee pefect cutting accuracy.

4) Z-axis movement by lead screw.

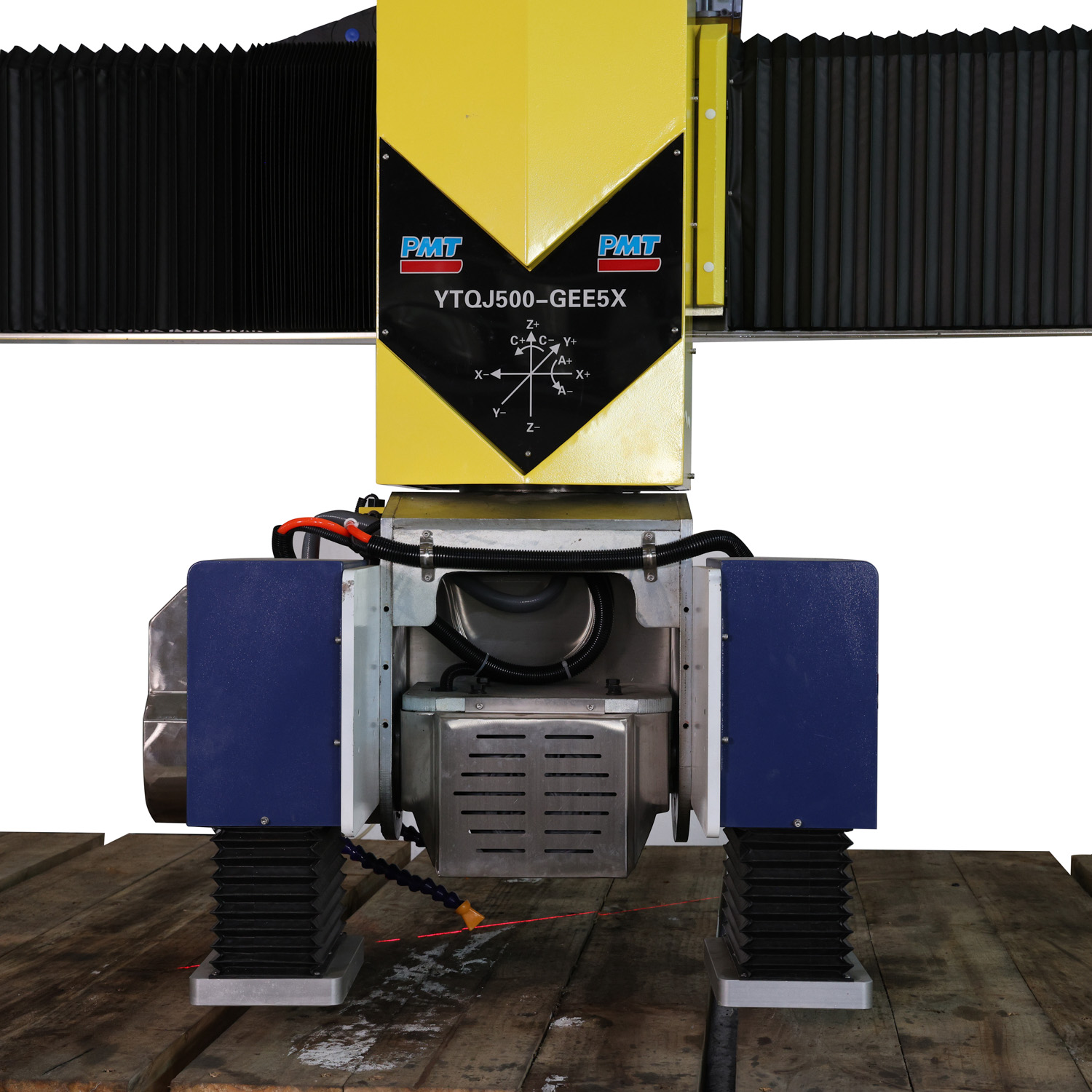

5) 0°- 360° automtaic head rotatation and blade positioning.

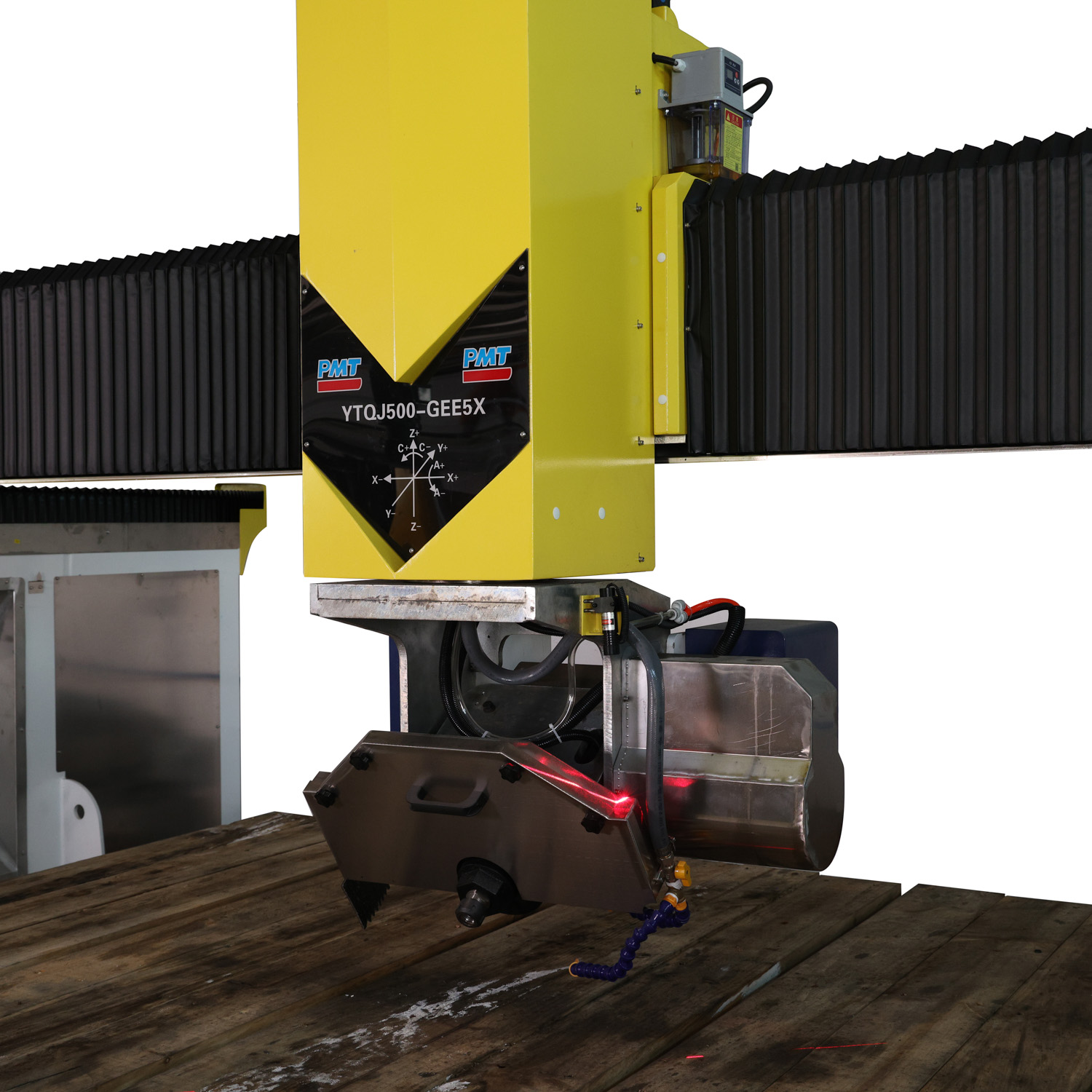

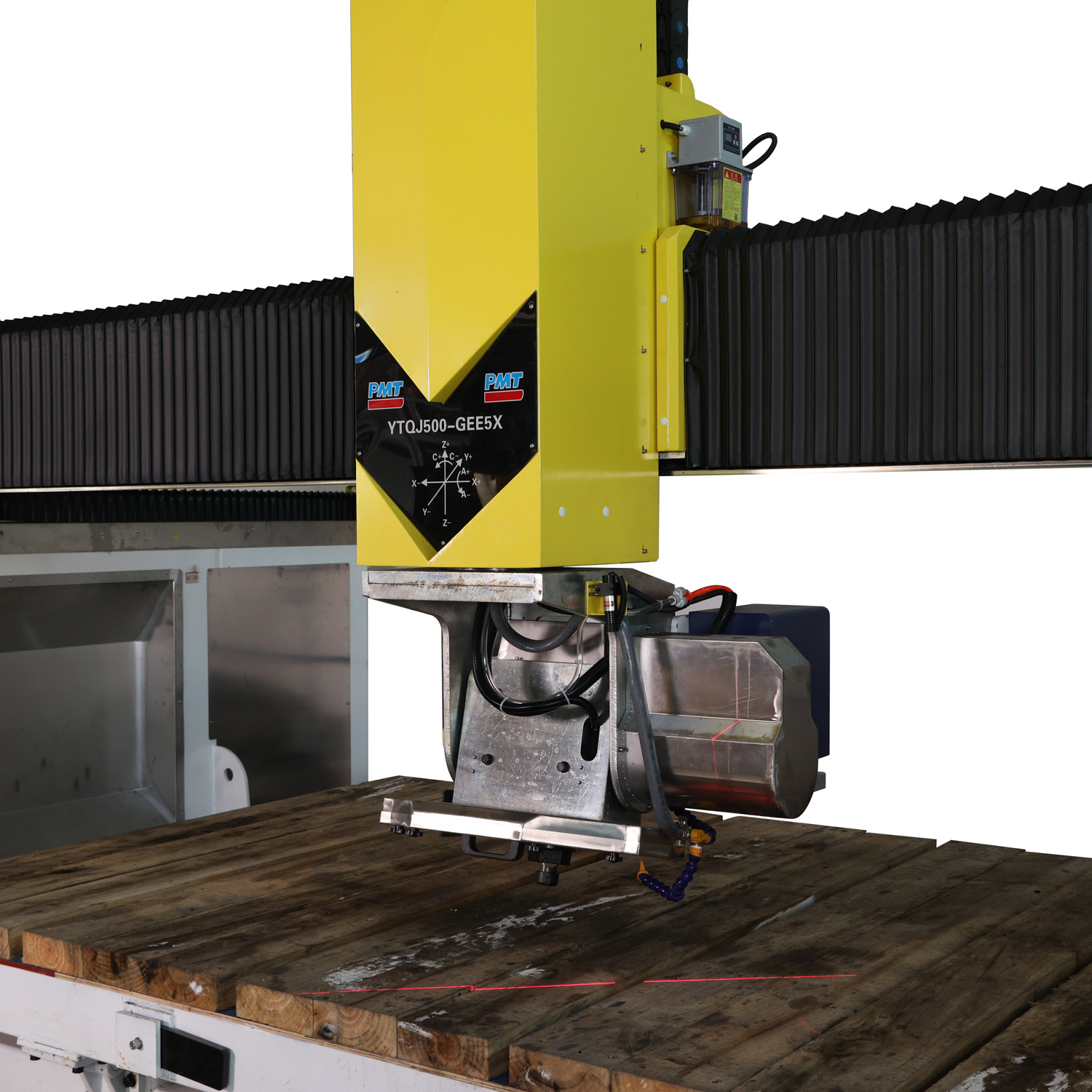

6) 45° blade tilt auto for mitre cut.

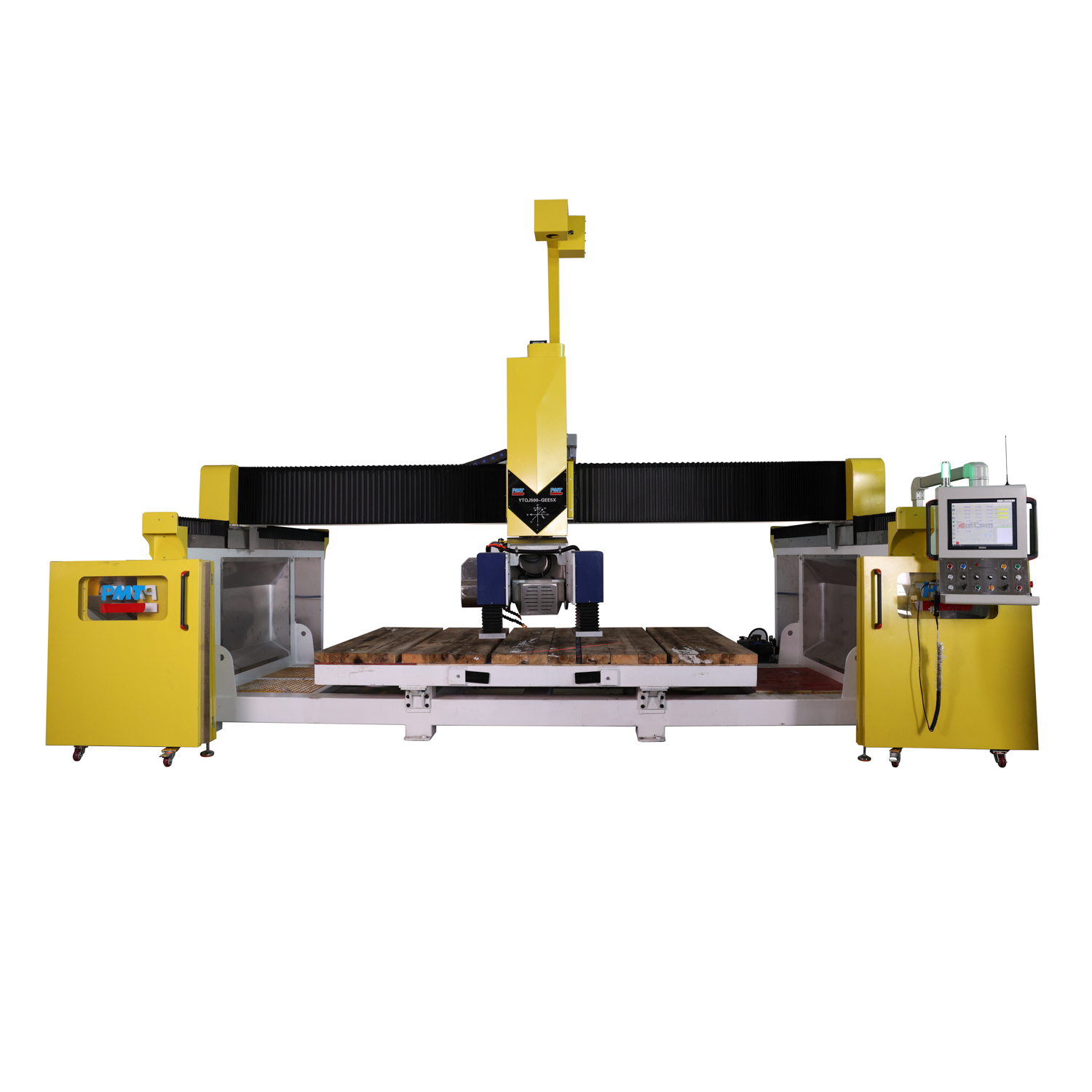

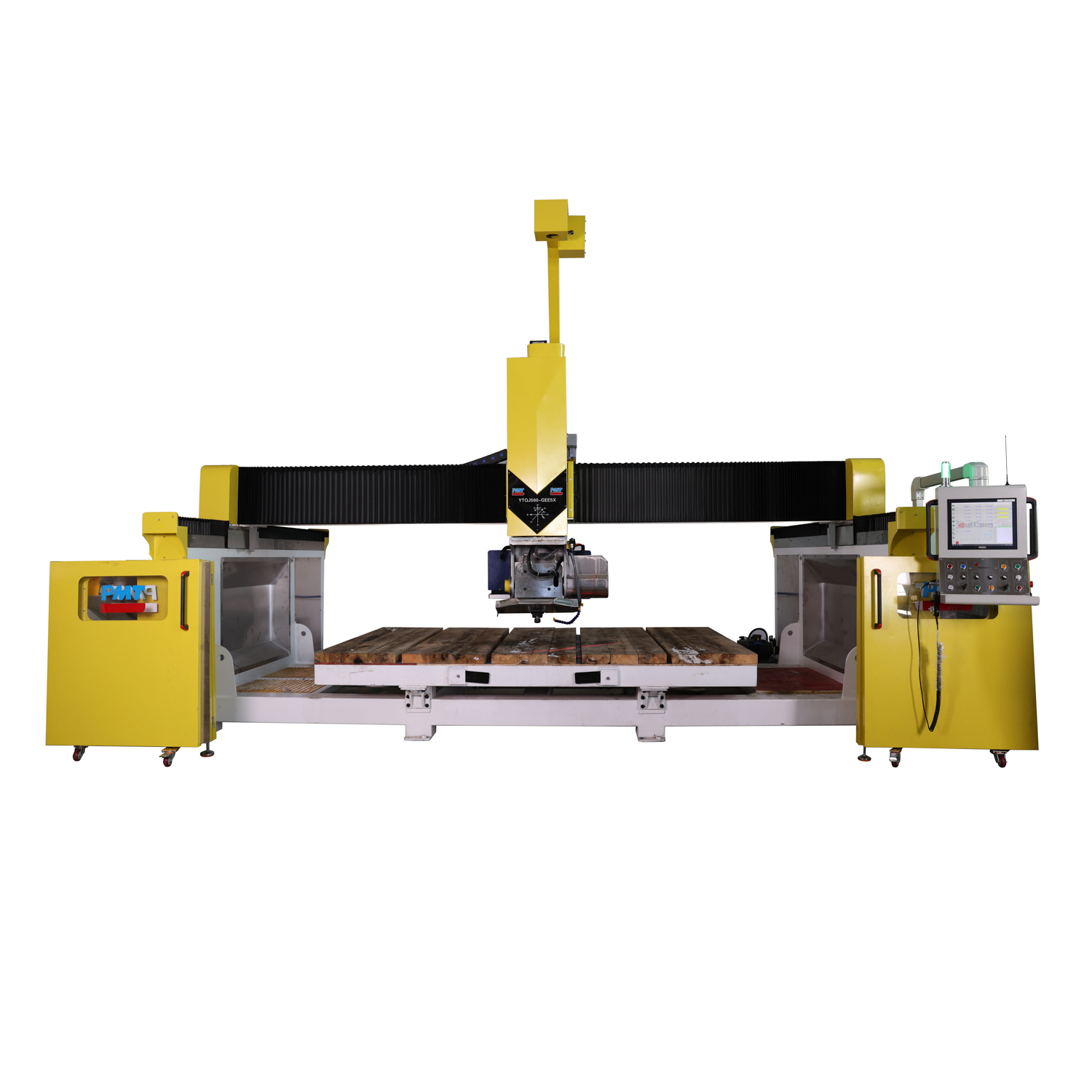

7) Worktable can tilt 0-85°, easy for slab loading.

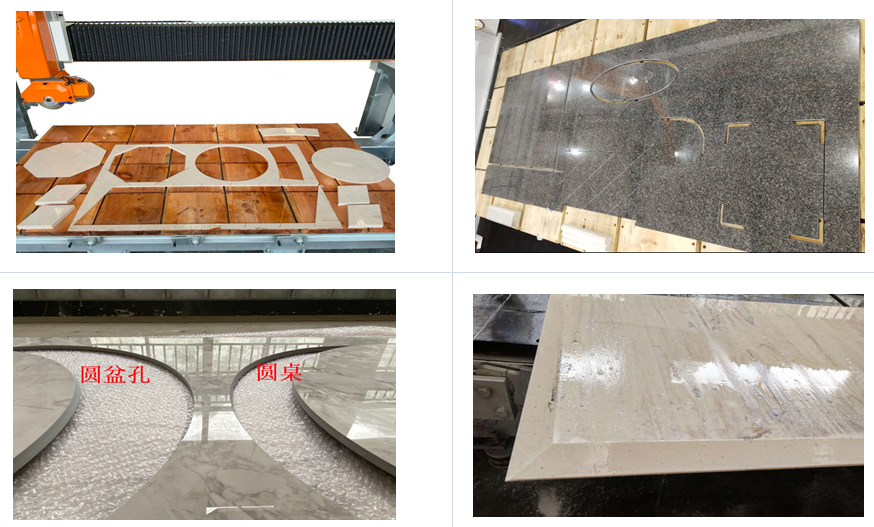

8) Pre-loaded parametic figures such as hexagon, octagon, kitchen top, trapezium, polygon, etc

1) Left cooking bench, Right cooking bench

2) Chamfer, Routine

3) Polygon, Trapezoid, Rhombus, Pull-grid

4) Horse-tripe, Ellipse, Circle, Sector

5) Optional -- Line - Profile， Arc - Profile

1) Machine with competitive price and high quality ,easy in installation and maintenance.

2) Adopting advanced world famous brand components in electric parts .

3) Guarantee for one year.
