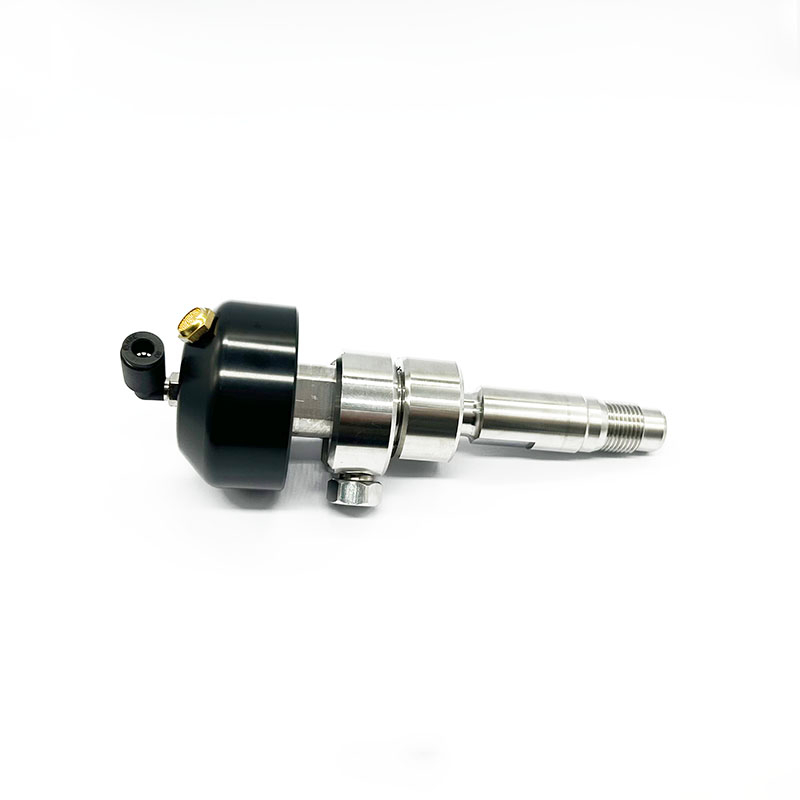

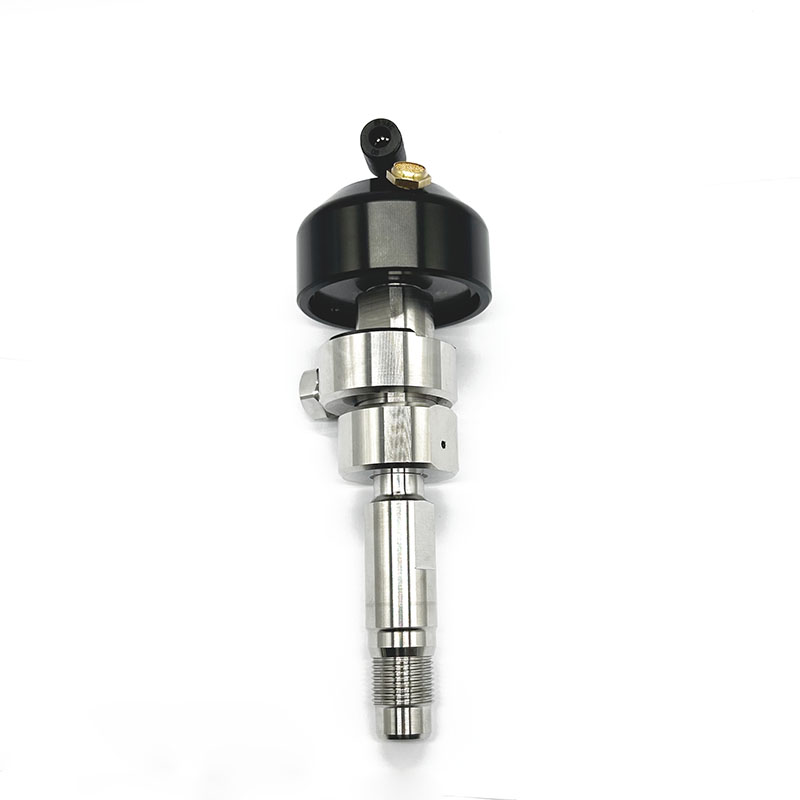

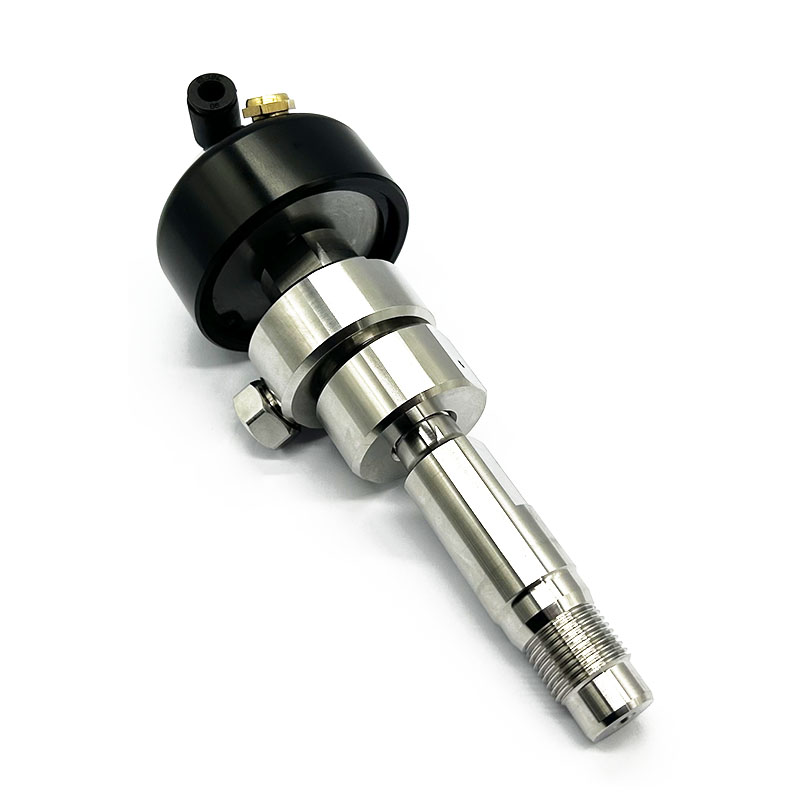

Cutting Head Parts and Assemblies: Complete On/Off Cutting Head Assemblies
301007-12 uses the nozzle body 190026-1, which has threads nearly to the end.

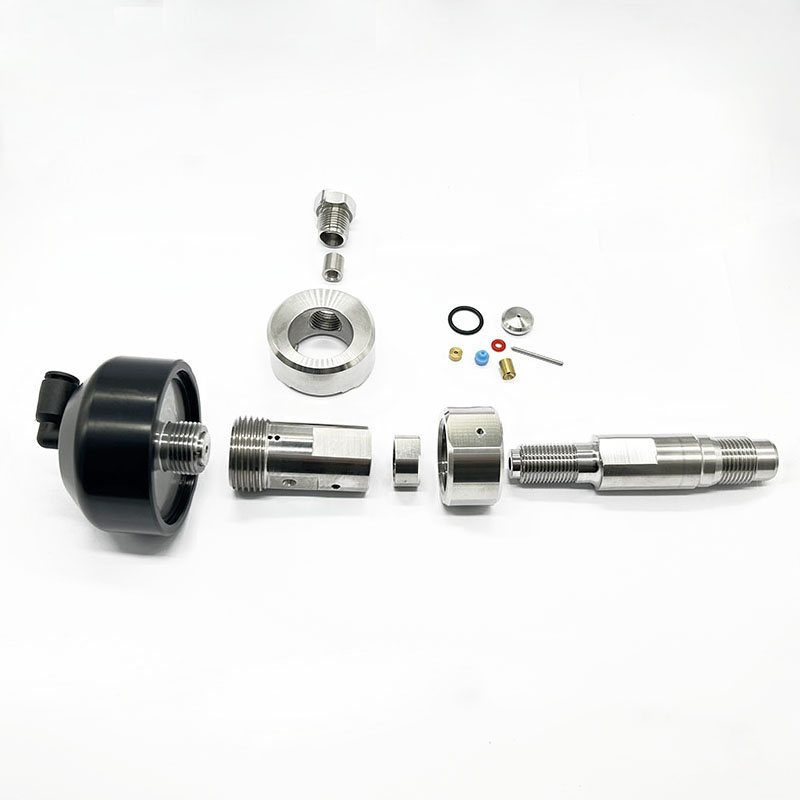

The on/off valve assembly includes:
Quantity | Part# | Description |
1 | 301006-6 | air actuator |
1 | 100040-3
| collar block
|
1 | 100151-3
| back-up ring |
1 | 100061-3
| seal |
1 | 490042-005
| o-ring |
1 | 100150-2 | bushing, stem |
1 | 100152-2
| poppet |
1 | 100059-2 | poppet landing |
| 1 | 100048-4 | valve body |
| 1 | 190026-2
| collar
|
| 1 | 190026-3 | gland nut |
| 1 | 190026-1 | nozzle body |
