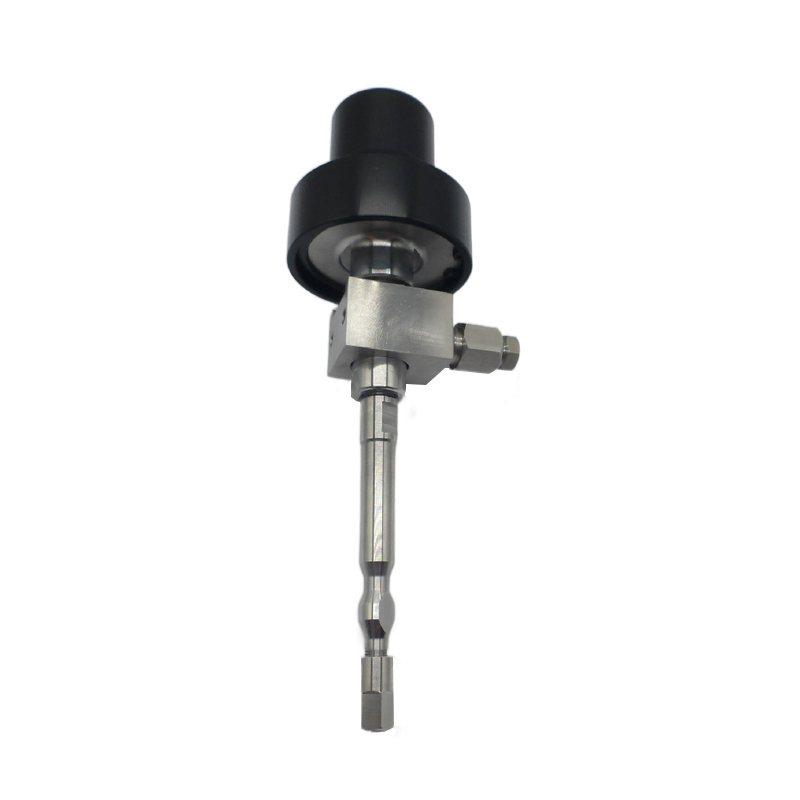

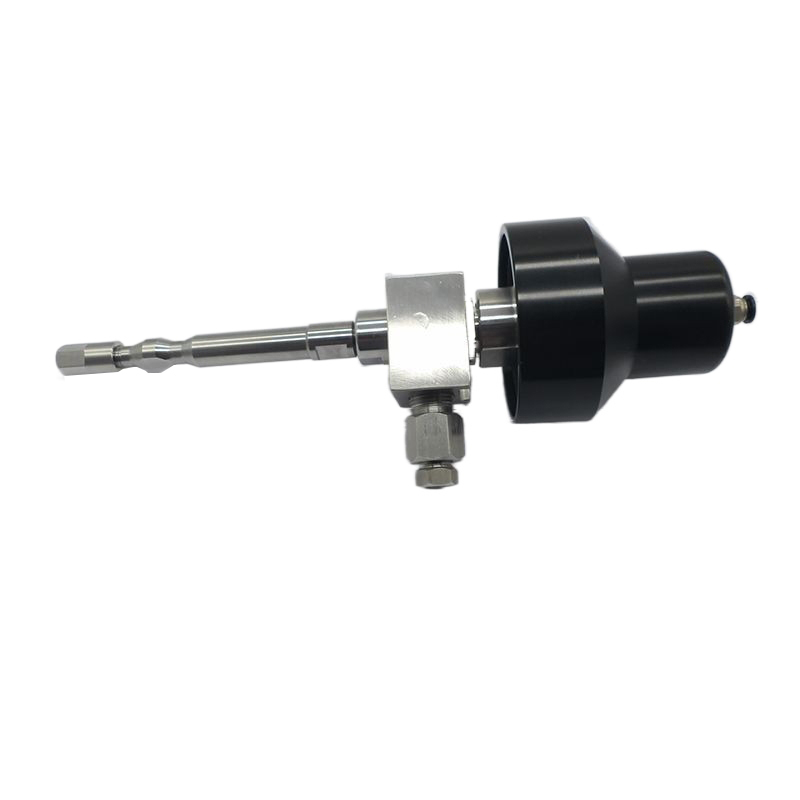

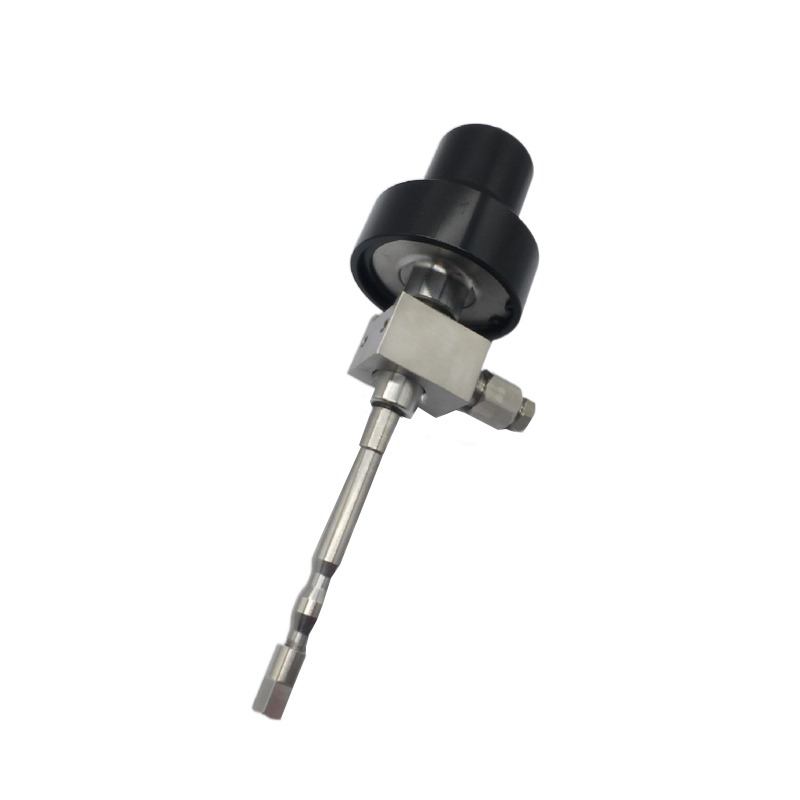

On / Off Valve Assembly, w / Low Mass Nozzle Body 301007-2

Name: On / Off Valve Assembly, w / Low Mass Nozzle Body 301007-2
Rating: 5.0 (16 reviews)

ON / OFF VALVE ASSEMBLY, HYBRID, NC, 60 KSI, LOW MASS

Part Number

KMT Part Number: 20458956

H2O JET Part Number: 301007-2

Product List

OTY	Part Number	Description
1	301006-1	ACTUATOR ASSEMBLY, NC.HYBRID
1	301008-1	SEAL RETAINER ASSEMBLY,HI-P,HYBRID
1	001337-1	BACK UP RING.INSTA I
1	001328-1	POPPET SEAL,INSTA I
1	B-8075-006	O-RING.POPPET SEAL,INSTA I
1	006934-1	VALVE POPPET,INSTA I
1	100048-1	VALVE BODY, HYBRID,INSTA I
1	006933-1	POPPET SEAT,INSTAI/INSTA II
1	A-0275-014	O-RING.VALVE BODY, INSTA I/INSTA II
1	006144-1	MOUNTING COLLAR.ROBOTIC VALVE
1	FT60M64B3	ADAPTOR 3/B"MALEx1/4" FEMALE,6OK
1	006145-1	NOZZLE BODY, LOW MASS,5.49
1	OR003788-00	ORIFICE ASSEM BLY,LOW MASS SAPPHIRE
1	ORDO37B8LS-00	ORIFICE ASSEM BLY, LOW MASS,SAPPHIRE, LONG STEM
1	006146-1	NOZZLE RETAINER,LOW MASS
