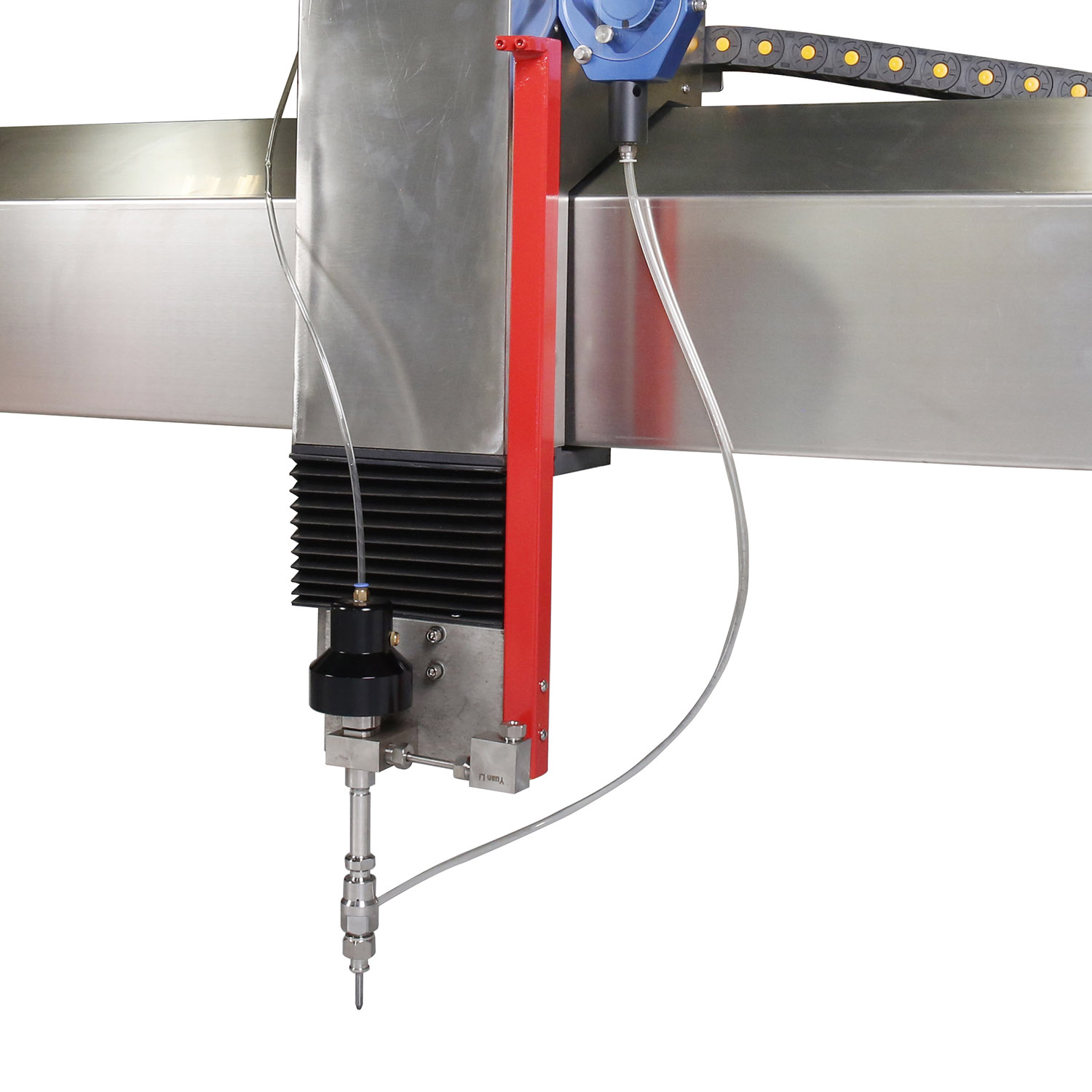

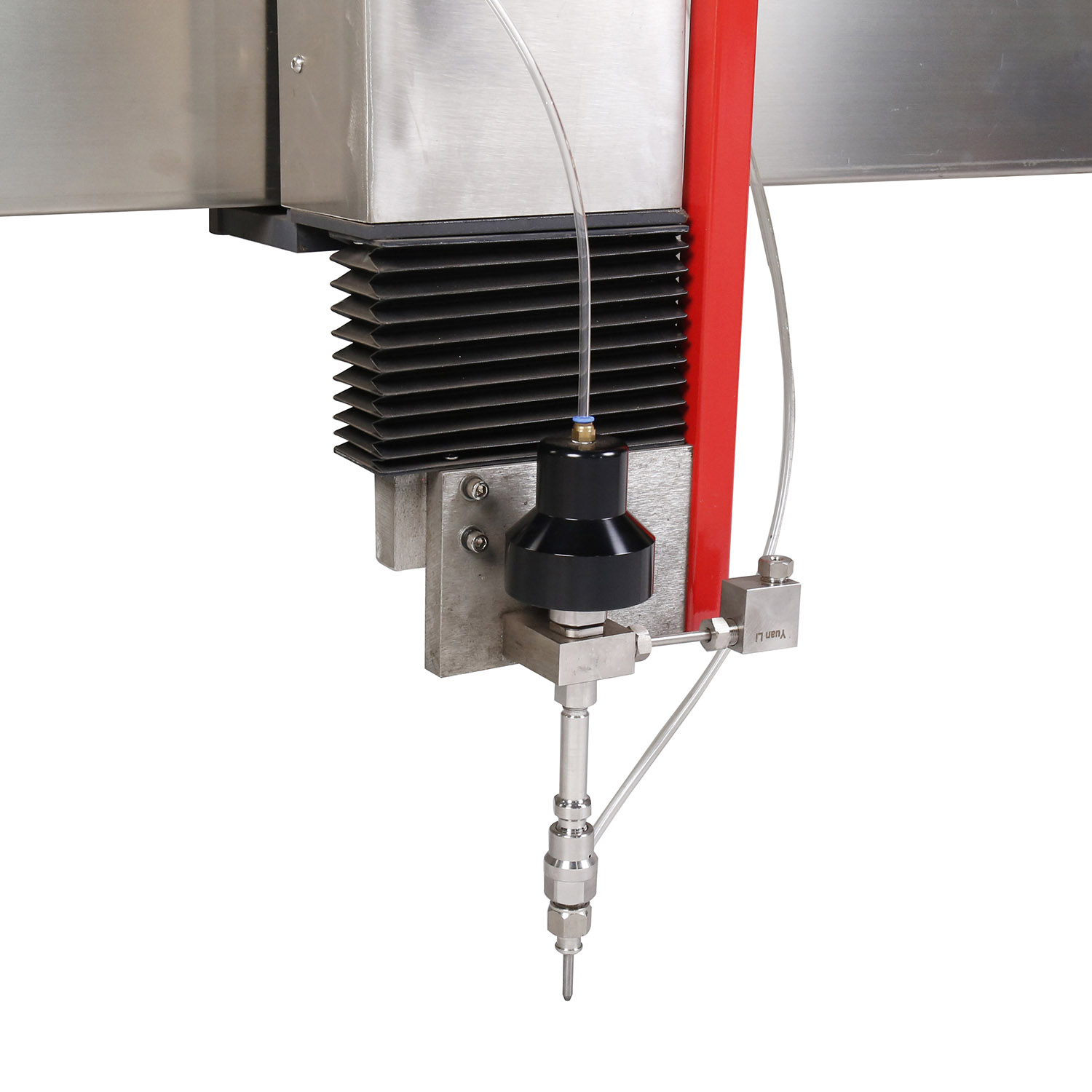

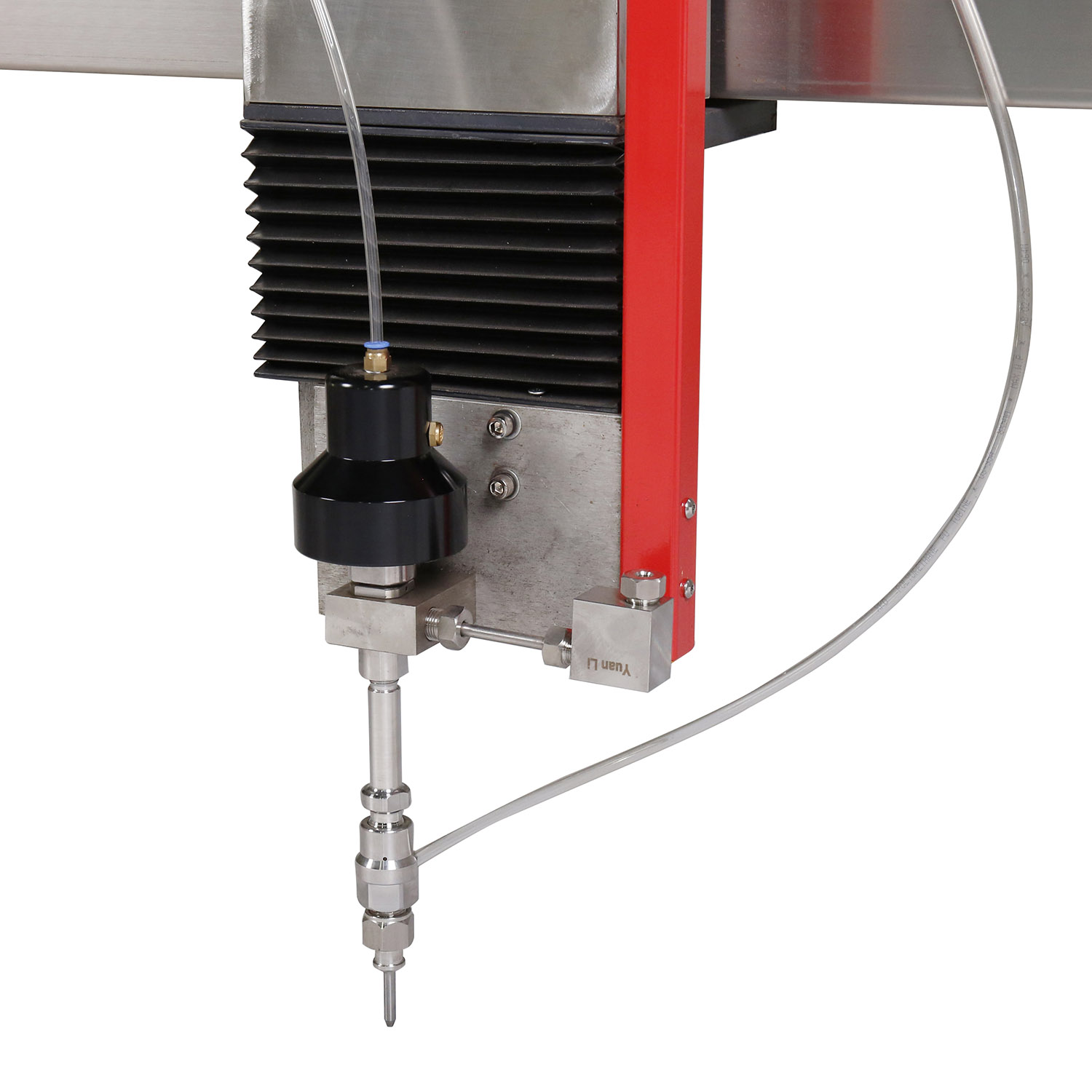

Cutting head is fixed on a rotatable mounting plate, it gives opportunity to tilt the cutting head by manually, but cutting head must be fixed before cut.
The term "3 axis" refers to the fact that not only the X and Y axis are driven by a servo motor, but also the Z axis, which controls the up and down movement of the cutting head. This feature is crucial for maintaining precision and programmability when cutting curved surfaces or working with different parts. However, it is important to note that 3 axis cutting can result in taper, where the cut is wider at the top than at the bottom. The speed of cutting also affects the taper, with faster cutting resulting in larger taper. To overcome this issue and achieve precise cuts without taper, our DYP 5 axis dynamic tilting head or 3D head waterjet cutting machine comes into play. This innovative machine allows for tilting of the cutting jet, enabling the elimination of taper and ensuring high-quality cuts.
Product Advantage:
1. High precision three axis structure
2. For horizontal and vertical cutting
3. Fast cutting speed, good stability
4. Simple for maintenance, High technical stability
