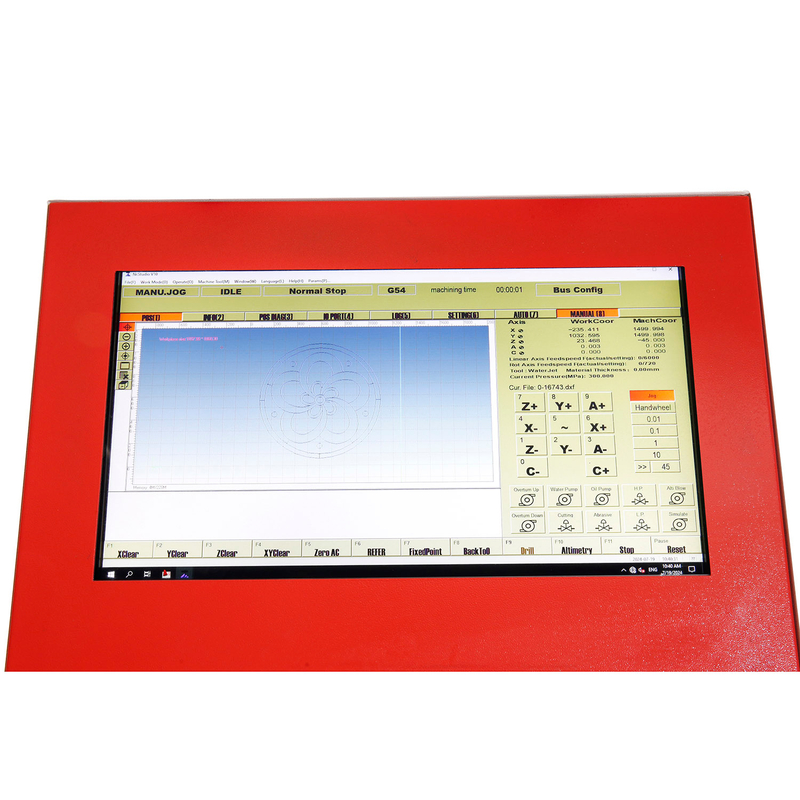

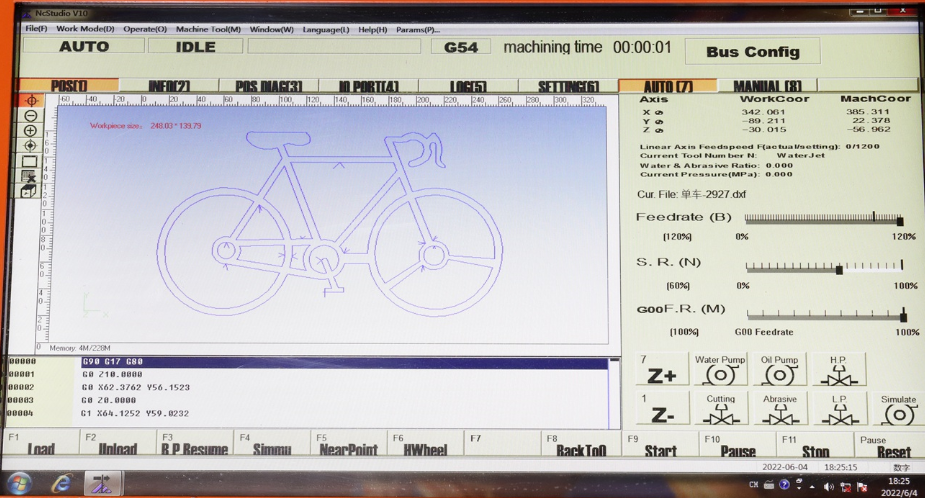

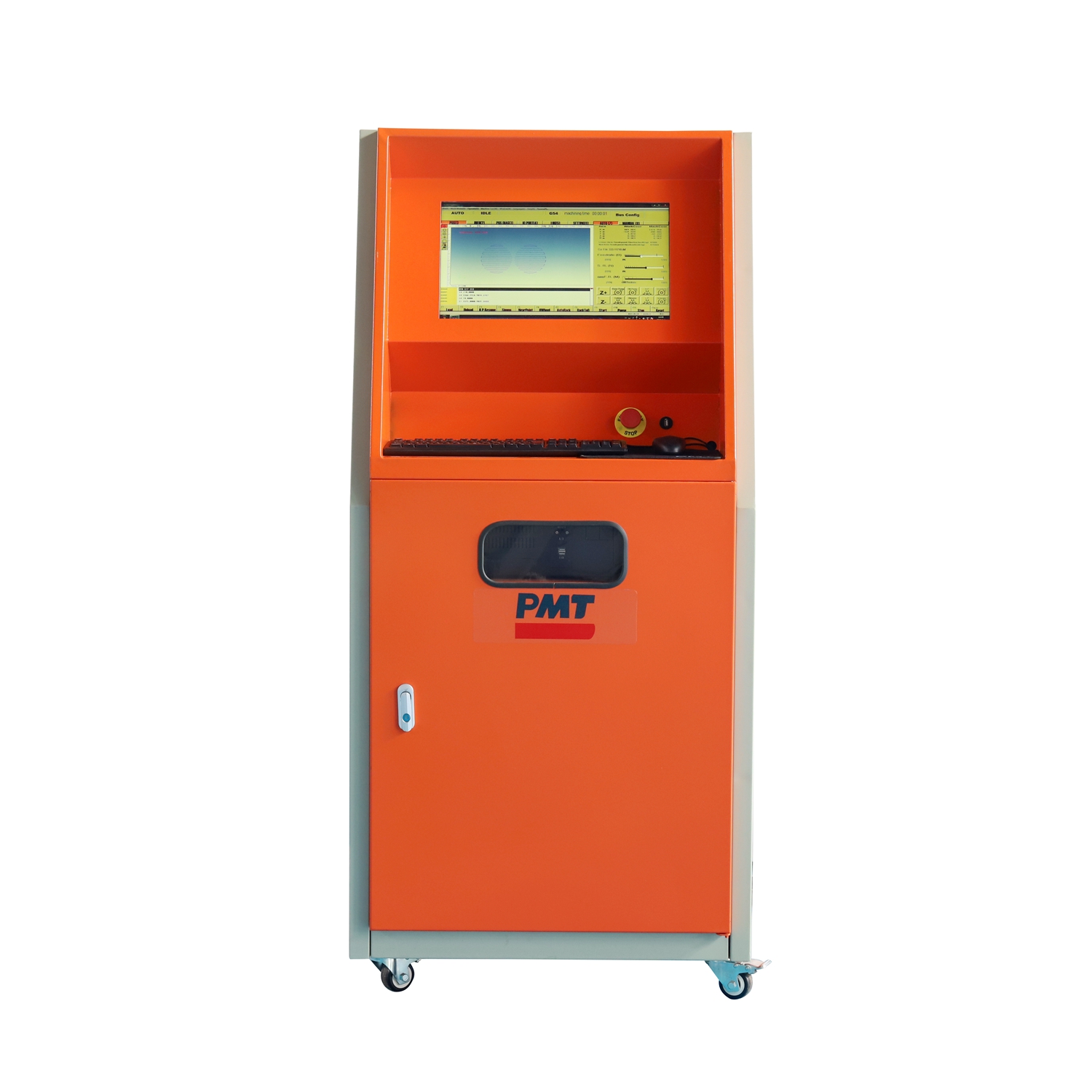

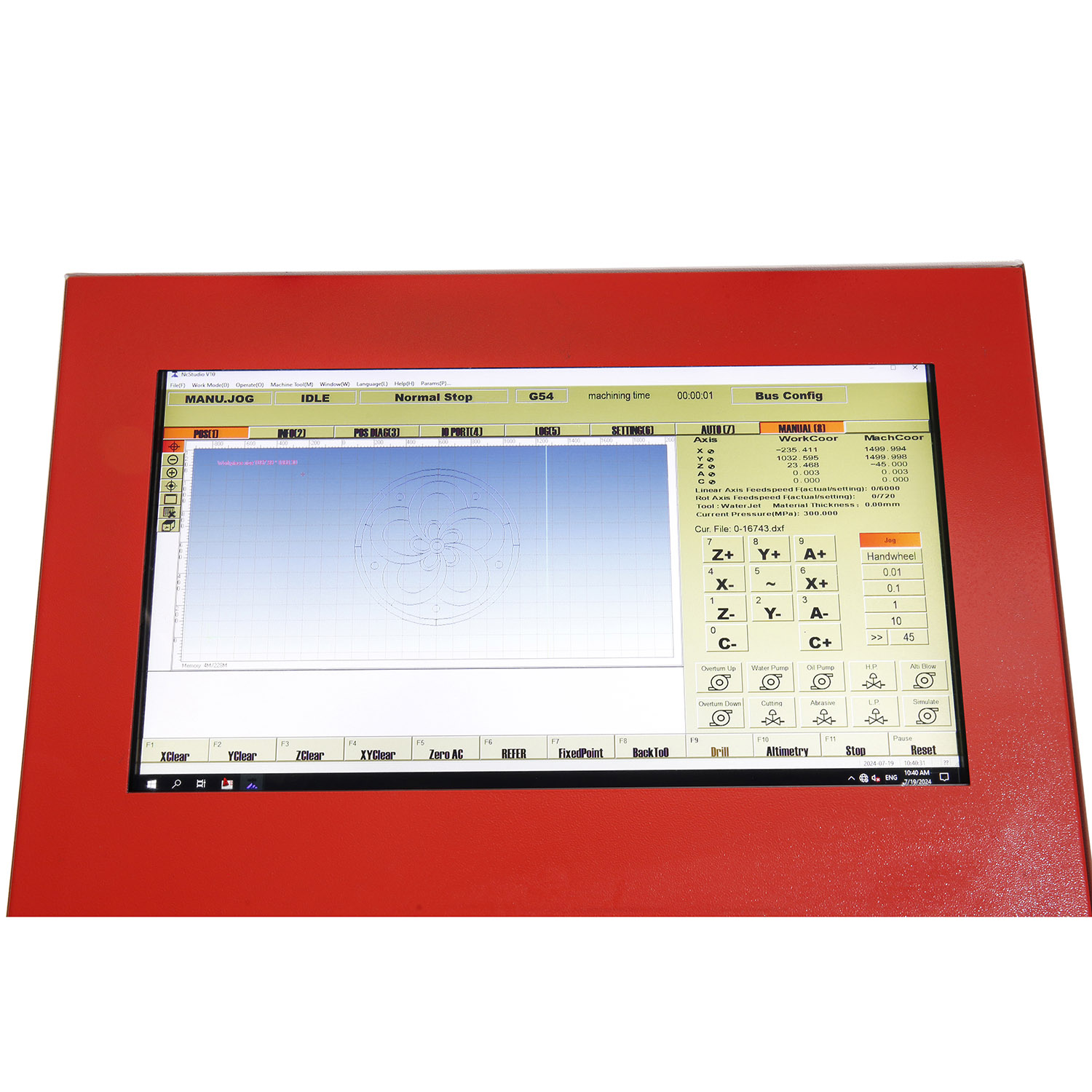

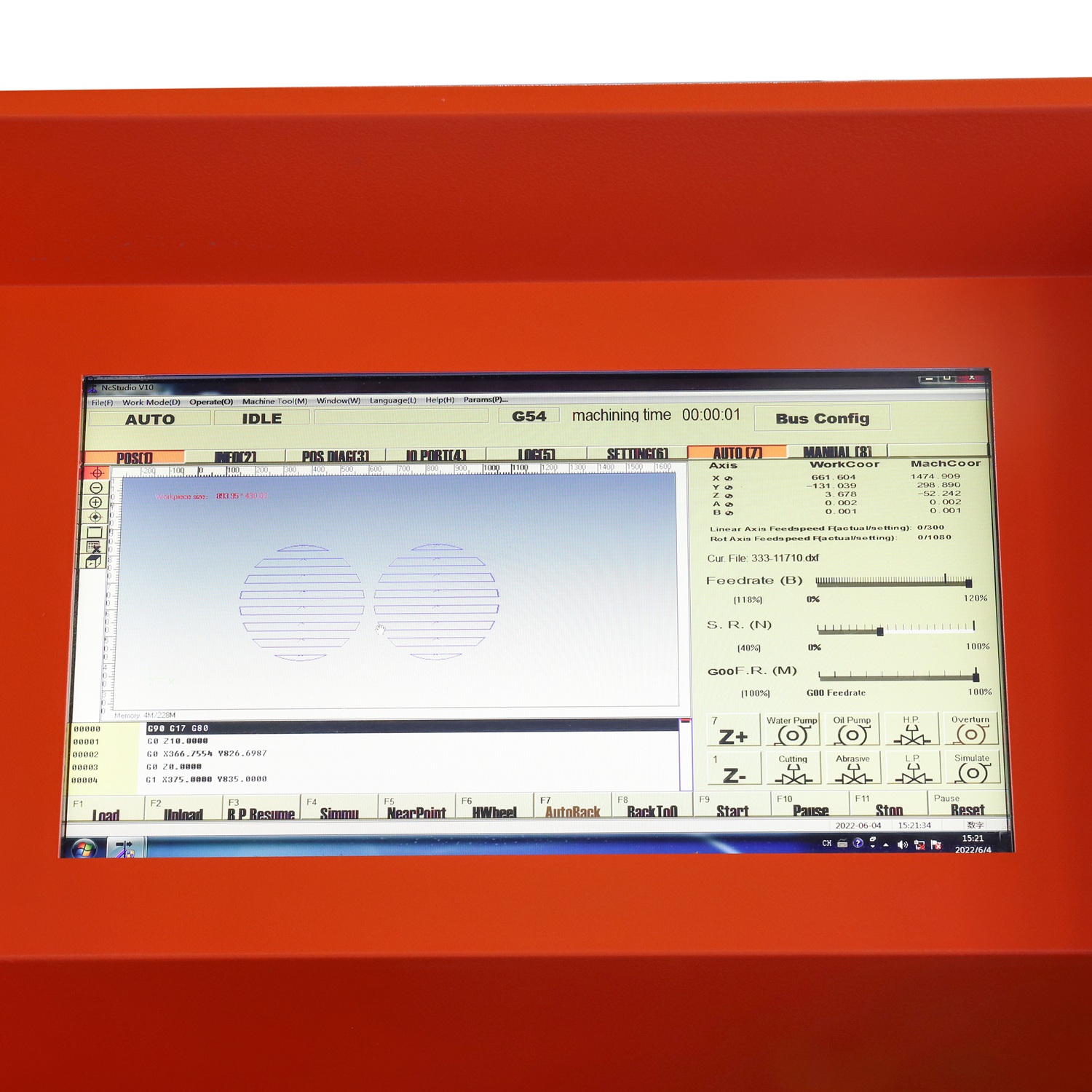

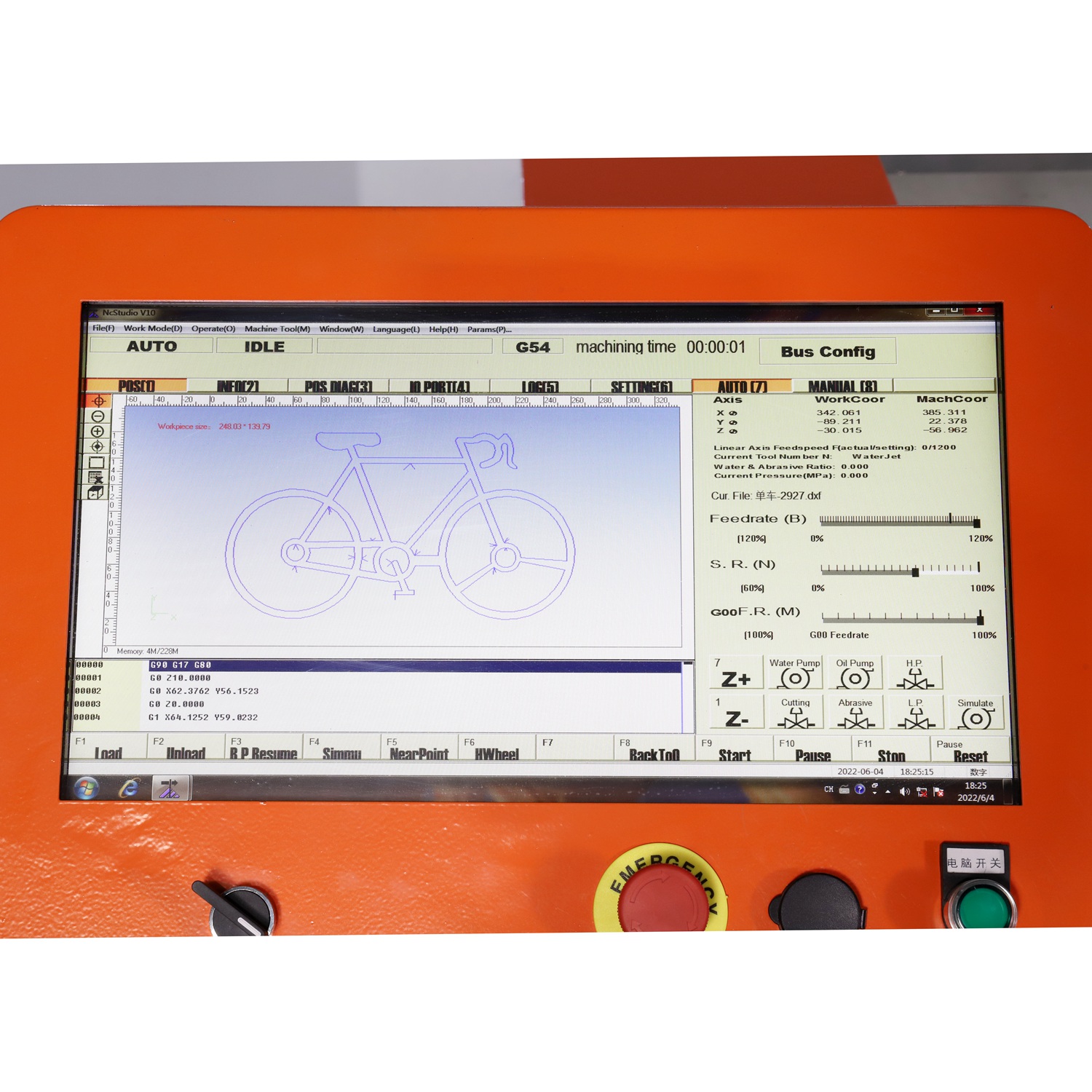

Control system — Weihong system
Shanghai Weihong created its own absolute advantage, focusing on improving the unsatisfactory domestic five axis water cutting processing effect, optimized the processing path and repeatedly passed the trial cutting verification, and launched the upgraded AB five axis water cutting system. Shanghai Weihong supports DXF files without CAM software, which reduces programming diffuculty and save costs.
| CNC Specification | Number of Axes Supported 3-5axes |
| Control Signals | Plus Frequency 1MHZ Control Mode Position control Control Signal Differential signals Position Signal Type Plus+Direction |

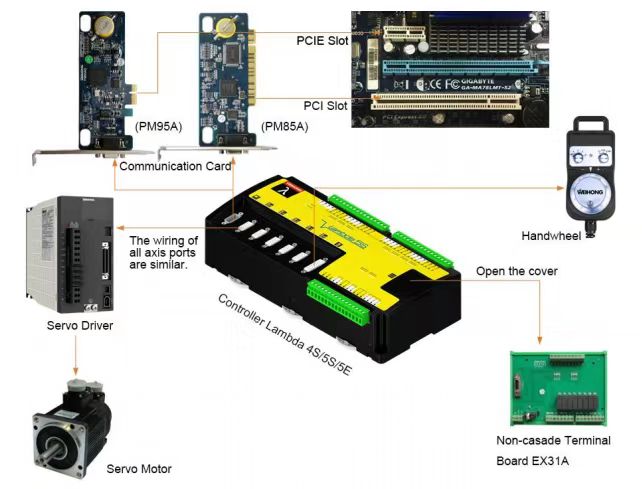

| Communication | External PCI Interactive with Lambda PHOENIX bus |
| Spindle | Analog Voltage Output 0-10V |
| Operations | WCS Supporting WCS G54-G59 and Work Zero saving Processing Technology Array, Mirror&rotate, Cycle machining |
| Convenient Operation | Handwheel guide, Breakpoint resume, Tool selection |
| Tool Measurement | Tool Measurement Mode Fixed calibration, Mobile calibration,First calibration & Calibration after tool change |
| Compensation | Compensation Type Screw error compensation, Backlash compensation, AQE compensation, Tool compensation |
| Toolpath File | Supported File Format *.g/*.nc/*.u??/*.demo/*.iso/*.eng/*.cut/*.dxf/*.plt/*.txt |
| High-speed High-precision Optimization | Interpolation Algorithms T-type, S-type and LEP algorithms |
| Software Language | Chinese, English |
| Safety & Reliability | Sofeware Alarms Alarms of program error, operation error, over-travel error, PLC error, and IO communication error |
