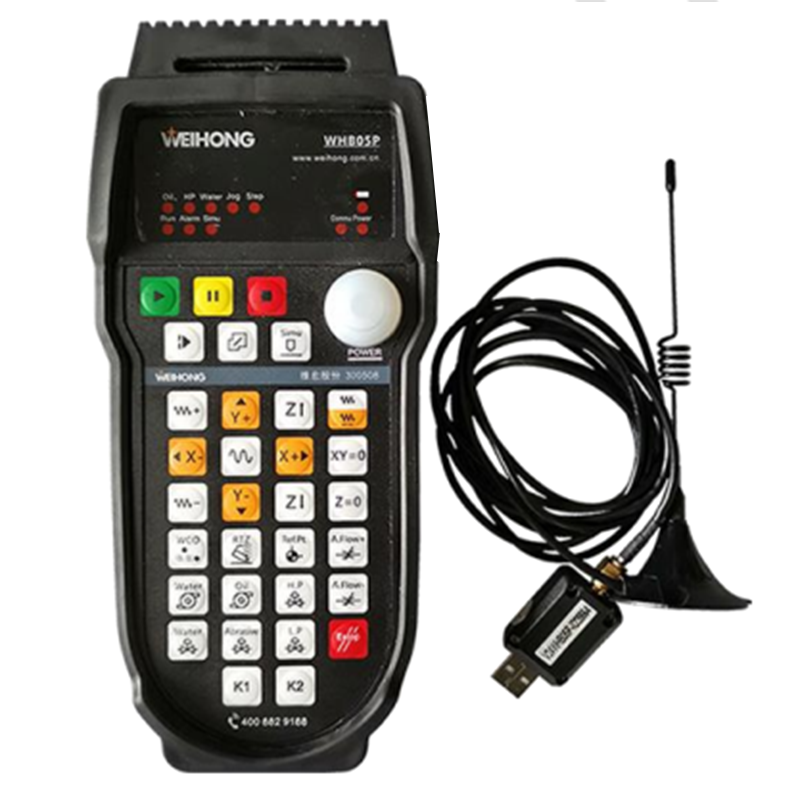

WHB05P
| Availability: | |
|---|---|
Wireless CNC Handwheel
WHB05 Series Wireless CNC Handwheel is a series of wireless handles that can make the machine tools do specified actions through Weihong CNC control system. The wireless CNC handwheel is independently designed by Weihong Company (short for Weihong Electronic Technology Co., Ltd.) with copyright. Among them, the following are applicable to Weihong NcStudio V10 waterjet cutting CNC system.
The wireless CNC handwheel consists of a handheld operational panel, also called transmitter, and a USB receiver.
With the wireless CNC handwheel, the users can operate in the area that is within 40m far from the machine tool, which can greatly improve operating efficiency.
Specification Parameters
Electric parameters
· Working voltage & current: 3V / 6mA (WHB05T: two AAA batteries;WHB05P: two AA batteries)
· Voltage range for low voltage alarm: < 2.2V
· Transmit power (Transmitter):14dB
· Receiver sensitivity(Receiver):-90dB
· Communication frequency:433MHz band
· Delay: 32ms
Other parameters
· Usage life of keys: 400~500 thousand times
· Communication distance:40m without barrier
· Working temperature:-25°~70°
· Permitted falling height: 1.5m
· Receiver: USB2.0, with 1.5m USB dual layer shield cable
· Receiver movable distance: ≤5m
Caution
Please pay attention to the following:
· Make sure the wireless CNC handwheel is well connected to the computer host before starting the CNC software.
· The operational panel (transmitter) is exclusively matched with the USB receiver. Therefore, do not use wrong pairs.
· When the low voltage indicator (yellow) lights on, change the battery in time; otherwise, it may cause mul-function of the wireless CNC handwheel:
WHBO5T: AAA battery
WHB05P: AA battery
· To ensure waterproofness, do not remove the silicon rubber sleeve of the transmitter.
· To ensure stable working condition for the wireless CNC handwheel, put wire antenna of the receiver out of the electric cabinet (top of the cabinet is the best). Do not place the wire antenna in an enclosure environment, because it may cause signal block and further unpredictable danger.
